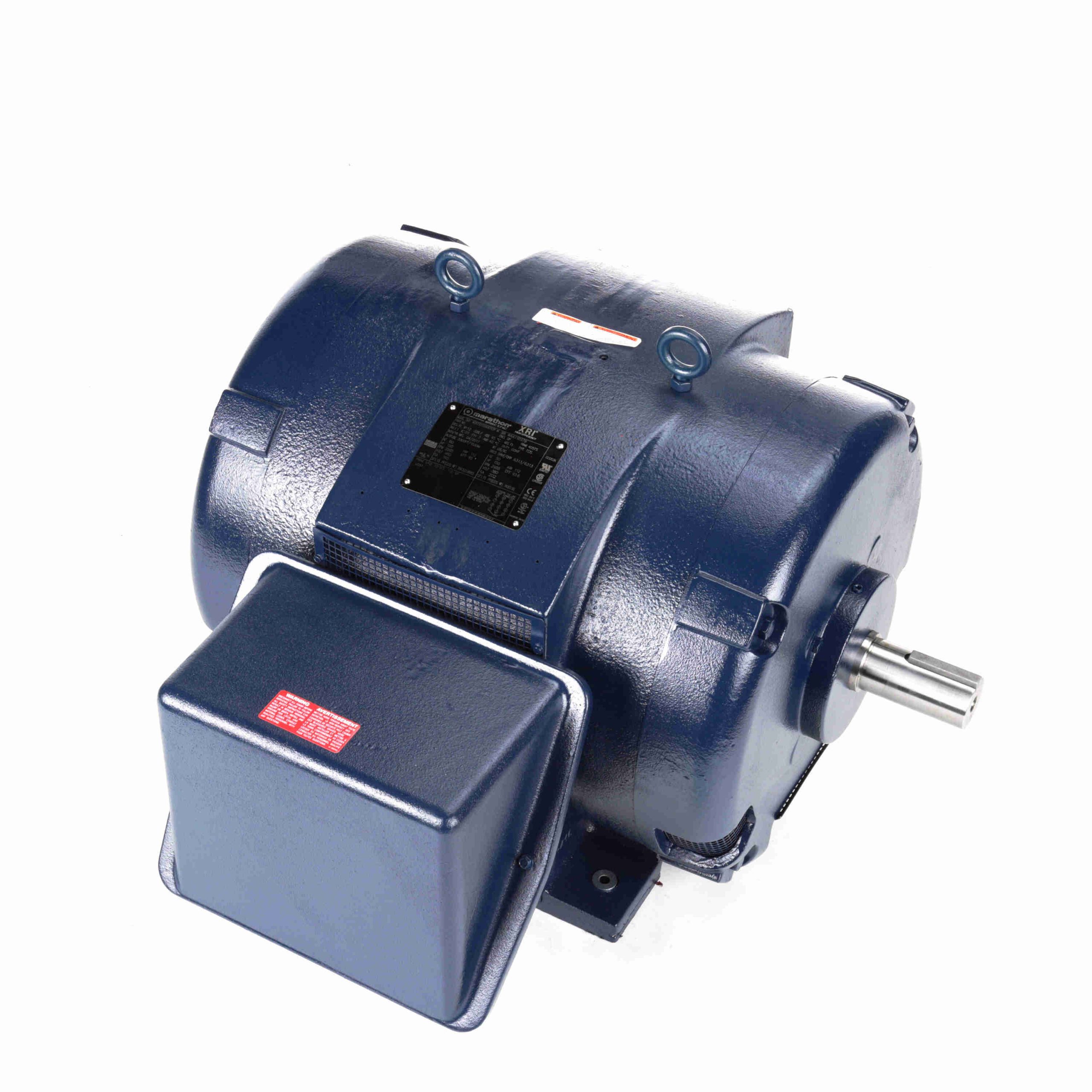

405TSTDS6007 – Marathon 150 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 405TS Frame, ODP – U251
405TSTDS6007 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856013361 |
Weight: |
0 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.98 IN |
Nameplate Specifications
| Output HP: |
150 Hp |
Output KW: |
112.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
165.0 A |
Speed: |
3565 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
89.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
405TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Part Wdg Start & Wye Start Delta Run |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.0395 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
31.00 in |
| Frame Length: |
17.00 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
4.5 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
1,020.00 |
618.0 |
290.00 |
130.0 |
0 |
|
31.0 |
150.00 |
| Pull-Up |
915.00 |
555.0 |
240.00 |
109.0 |
1,800 |
|
|
150.00 |
| No Load |
38.50 |
23.5 |
0.00 |
0.0 |
3,600 |
|
|
150.00 |
| 2/3 |
850.00 |
515.0 |
350.00 |
158.0 |
2,400 |
|
|
150.00 |
| Break-Down |
610.00 |
370.0 |
560.00 |
253.0 |
3,400 |
|
68.0 |
150.00 |
| 1/3 |
975.00 |
591.0 |
240.00 |
109.0 |
1,200 |
|
|
150.00 |
| Full Load |
165.00 |
100.0 |
221.00 |
100.0 |
3,565 |
|
|
150.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
38.50 |
55.50 |
88.00 |
125.00 |
165.00 |
191.00 |
207.00 |
| Rated Output (KW) |
2.70 |
30.50 |
59.50 |
88.50 |
118.00 |
136.00 |
148.00 |
| Efficiency (%) |
0.0 |
91.7 |
94.5 |
95.0 |
95.0 |
94.5 |
94.5 |
| Power Factor (%) |
7.5 |
68.5 |
84.5 |
88.5 |
89.5 |
90.0 |
90.0 |
| Speed (RPM) |
3,600 |
3,592 |
3,585 |
3,575 |
3,565 |
3,560 |
3,555 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
75.0 |
| Torque (ft-lbs) |
0.00 |
55.00 |
110.00 |
165.00 |
221.00 |
255.00 |
276.00 |
