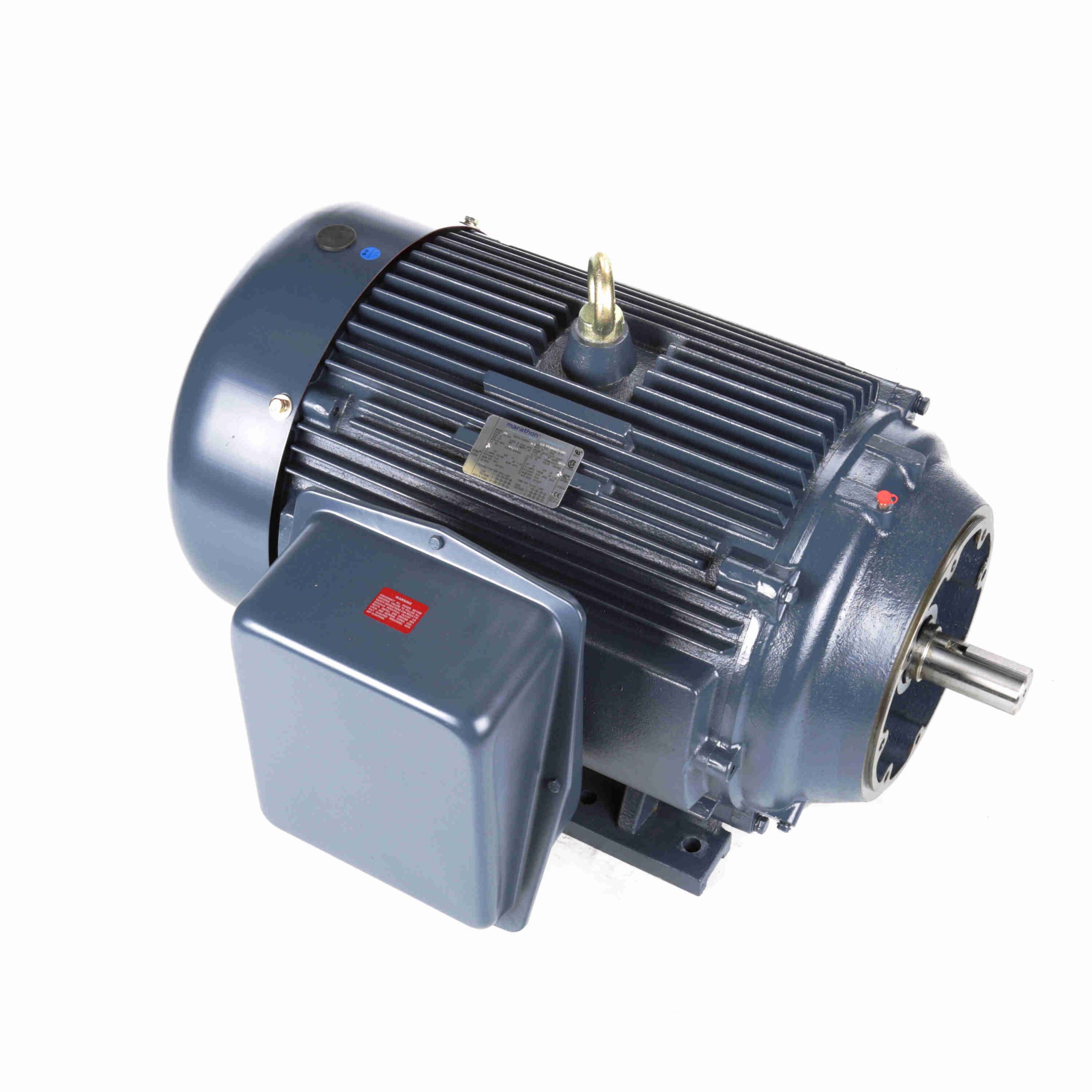

405TSTFCD6003 – Marathon 100 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 405TSC Frame, TEFC – GT1245A
405TSTFCD6003 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856062826 |
Weight: |
0 LB |
| Packaged Length: |
39 IN |
Packaged Width: |
32 IN |
| Packaged Height: |
26 IN |
Nameplate Specifications
| Output HP: |
100 Hp |
Output KW: |
75.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
222.0/111.0 A |
Speed: |
3575 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
89 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
405TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6314 |
| UL: |
Listed |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
| Hazardous Location: |
DIVISION 2 T2B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.056 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
35.77 in |
| Frame Length: |
18.11 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
4.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
435.00 |
390.0 |
427.00 |
290.0 |
3,470 |
|
67.0 |
100.00 |
| Locked-Rotor |
725.00 |
645.0 |
265.00 |
180.0 |
0 |
|
29.0 |
100.00 |
| Full Load |
111.00 |
100.0 |
147.00 |
100.0 |
3,575 |
|
89.0 |
100.00 |
| Pull-Up |
580.00 |
515.0 |
225.00 |
155.0 |
1,800 |
|
|
100.00 |
| No Load |
34.00 |
30.0 |
0.00 |
0.0 |
3,600 |
|
6.5 |
100.00 |
| 1/3 |
630.00 |
560.0 |
220.00 |
150.0 |
1,200 |
|
|
100.00 |
| 2/3 |
535.00 |
475.0 |
275.00 |
188.0 |
2,400 |
|
|
100.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
34.00 |
43.50 |
63.00 |
86.80 |
111.00 |
128.50 |
140.00 |
| Rated Output (KW) |
2.50 |
20.50 |
39.50 |
59.00 |
79.00 |
90.50 |
99.00 |
| Efficiency (%) |
0.0 |
90.2 |
94.1 |
94.5 |
94.5 |
94.5 |
94.1 |
| Power Factor (%) |
6.5 |
59.5 |
79.0 |
85.8 |
89.0 |
88.8 |
89.0 |
| Speed (RPM) |
3,600 |
3,595 |
3,588 |
3,582 |
3,575 |
3,570 |
3,565 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
100.0 |
| Torque (ft-lbs) |
0.00 |
36.50 |
73.50 |
110.00 |
147.00 |
170.00 |
185.00 |
