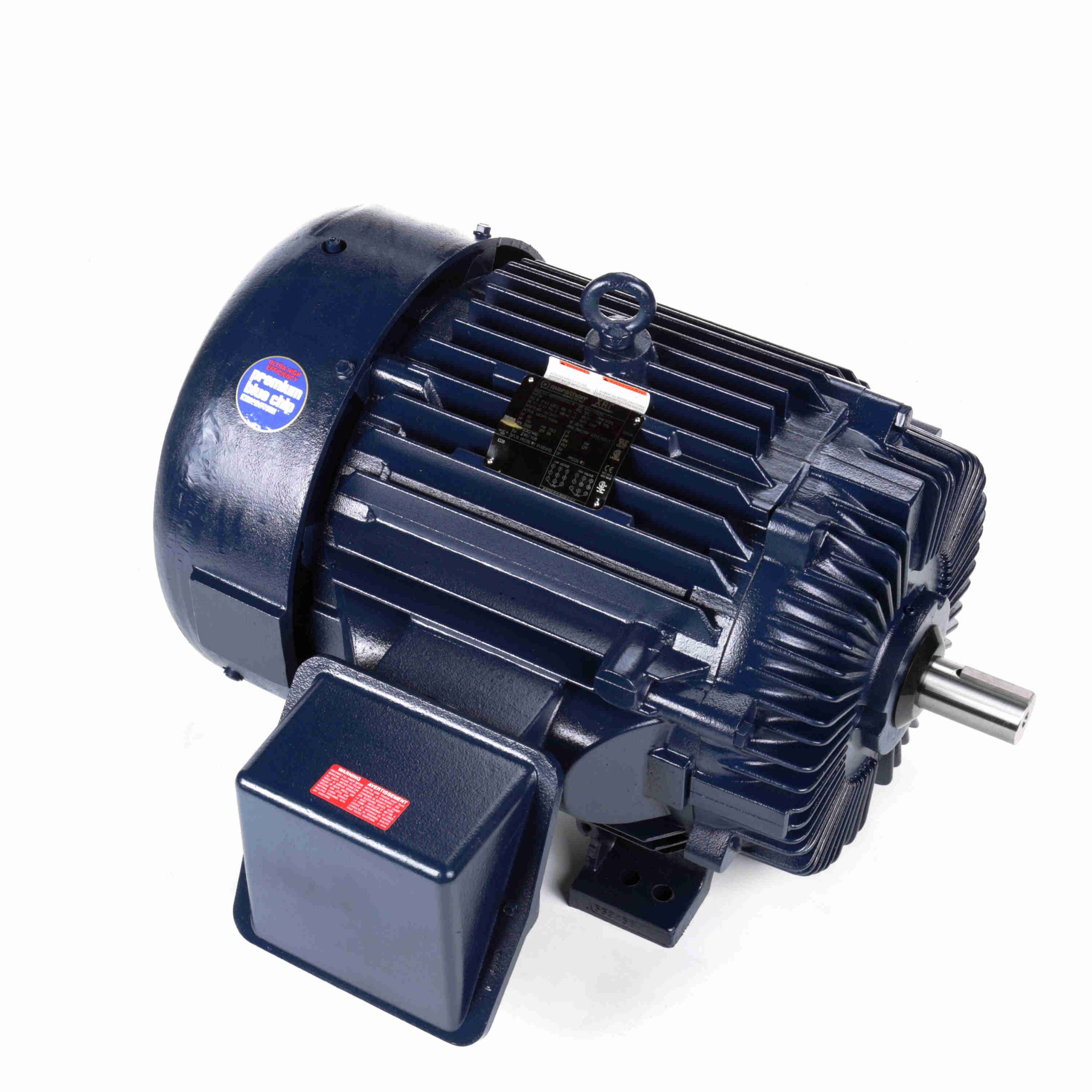

| UPC: | 722856017826 | Weight: | 0 LB |
| Packaged Length: | 44.88 IN | Packaged Width: | 39.25 IN |
| Packaged Height: | 28.89 IN |
| Output HP: | 100 Hp | Output KW: | 75.0 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 216.0/108.0 A | Speed: | 3565 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 95 % | Power Factor: | 91.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 405TS | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6313 | Opp Drive End Bearing Size: | 6313 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | .051 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | TS | Overall Length: | 34.13 in |
| Frame Length: | 16.75 in | Shaft Diameter: | 2.125 in |
| Shaft Extension: | 4.5 in | Assembly/Box Mounting: | F1/F2 Capable |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 725.00 | 671.0 | 230.00 | 156.0 | 0 | 31.0 | 100.00 | |
| No Load | 24.00 | 22.0 | 0.00 | 0.0 | 3,600 | 100.00 | ||
| Full Load | 108.00 | 100.0 | 147.00 | 100.0 | 3,565 | 100.00 | ||
| Break-Down | 425.00 | 394.0 | 410.00 | 279.0 | 3,415 | 67.0 | 100.00 | |
| Pull-Up | 650.00 | 602.0 | 200.00 | 136.0 | 1,800 | 100.00 | ||
| 2/3 | 600.00 | 556.0 | 240.00 | 163.0 | 2,400 | 100.00 | ||
| 1/3 | 675.00 | 625.0 | 200.00 | 136.0 | 1,200 | 100.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 24.00 | 36.00 | 57.50 | 81.50 | 108.00 | 124.00 | 135.00 |
| Rated Output (KW) | 2.00 | 20.50 | 39.50 | 59.00 | 78.50 | 90.50 | 99.00 |
| Efficiency (%) | 0.0 | 91.7 | 94.5 | 95.0 | 95.0 | 95.0 | 94.5 |
| Power Factor (%) | 7.5 | 71.0 | 86.0 | 90.5 | 91.5 | 91.5 | 91.5 |
| Speed (RPM) | 3,600 | 3,592 | 3,582 | 3,572 | 3,565 | 3,560 | 3,555 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 70.0 | 90.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 36.50 | 73.50 | 110.00 | 147.00 | 170.00 | 185.00 |
