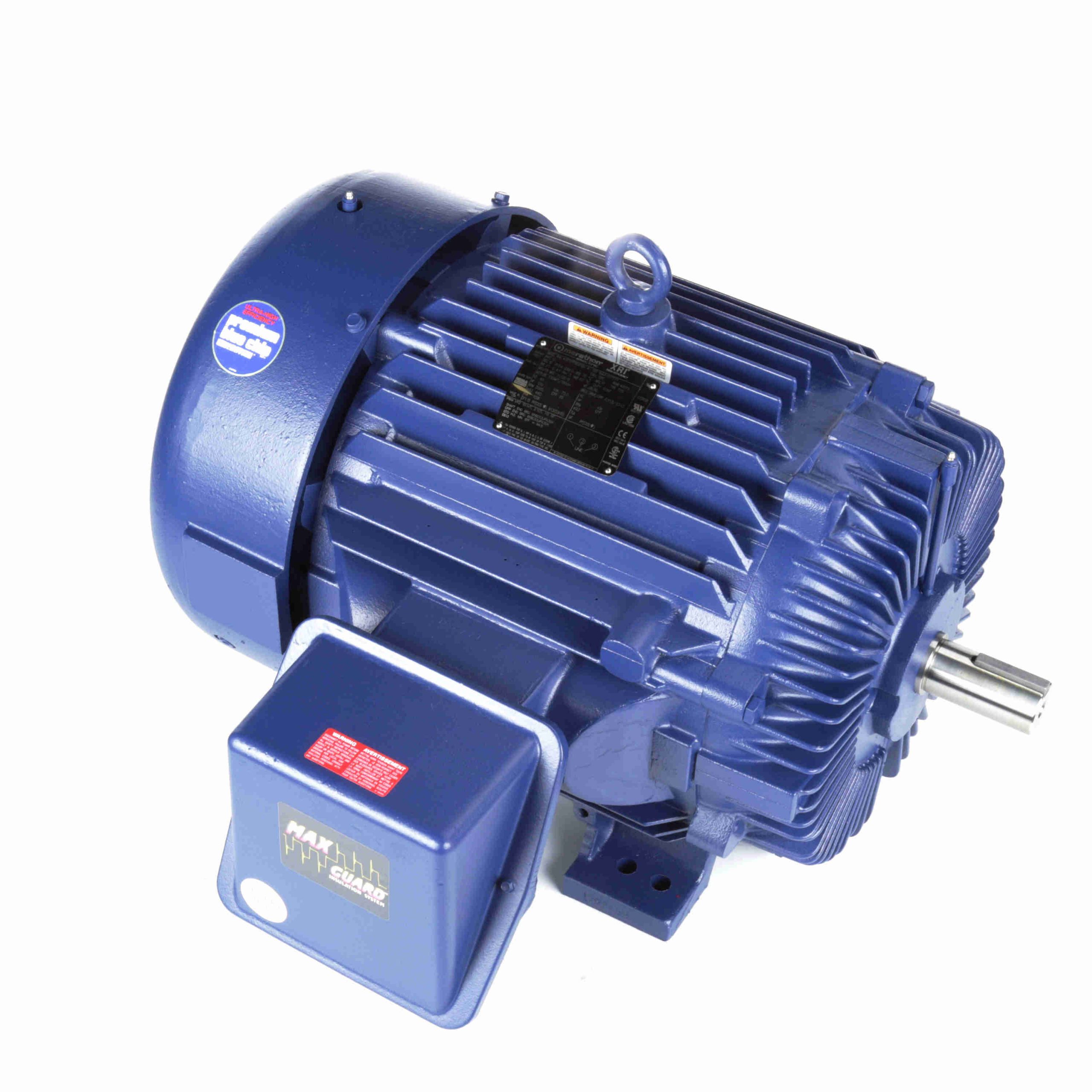

405TSTFS6501 – Marathon 100 HP Severe Duty Motor, 3 phase, 3600 RPM, 460 V, 405TS Frame, TEFC – E613
405TSTFS6501 Marathon Other Severe Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856020512 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.89 IN |
Nameplate Specifications
| Output HP: |
100 Hp |
Output KW: |
75.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
108.0 A |
Speed: |
3565 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
91.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
405TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
54 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.051 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
34.13 in |
| Frame Length: |
16.75 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
4.5 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
425.00 |
394.0 |
410.00 |
279.0 |
3,415 |
|
67.0 |
100.00 |
| No Load |
24.00 |
22.0 |
0.00 |
0.0 |
3,600 |
|
|
100.00 |
| Full Load |
108.00 |
100.0 |
147.00 |
100.0 |
3,565 |
|
|
100.00 |
| Locked-Rotor |
725.00 |
671.0 |
230.00 |
156.0 |
0 |
|
31.0 |
100.00 |
| 2/3 |
600.00 |
556.0 |
240.00 |
163.0 |
2,400 |
|
|
100.00 |
| Pull-Up |
650.00 |
602.0 |
200.00 |
136.0 |
1,800 |
|
|
100.00 |
| 1/3 |
675.00 |
625.0 |
200.00 |
136.0 |
1,200 |
|
|
100.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
24.00 |
36.00 |
57.50 |
81.50 |
108.00 |
124.00 |
135.00 |
| Rated Output (KW) |
2.00 |
20.50 |
39.50 |
59.00 |
78.50 |
90.50 |
99.00 |
| Efficiency (%) |
0.0 |
91.7 |
94.5 |
95.0 |
95.0 |
95.0 |
94.5 |
| Power Factor (%) |
7.5 |
71.0 |
86.0 |
90.5 |
91.5 |
91.5 |
91.5 |
| Speed (RPM) |
3,600 |
3,592 |
3,582 |
3,572 |
3,565 |
3,560 |
3,555 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
70.0 |
90.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
36.50 |
73.50 |
110.00 |
147.00 |
170.00 |
185.00 |
