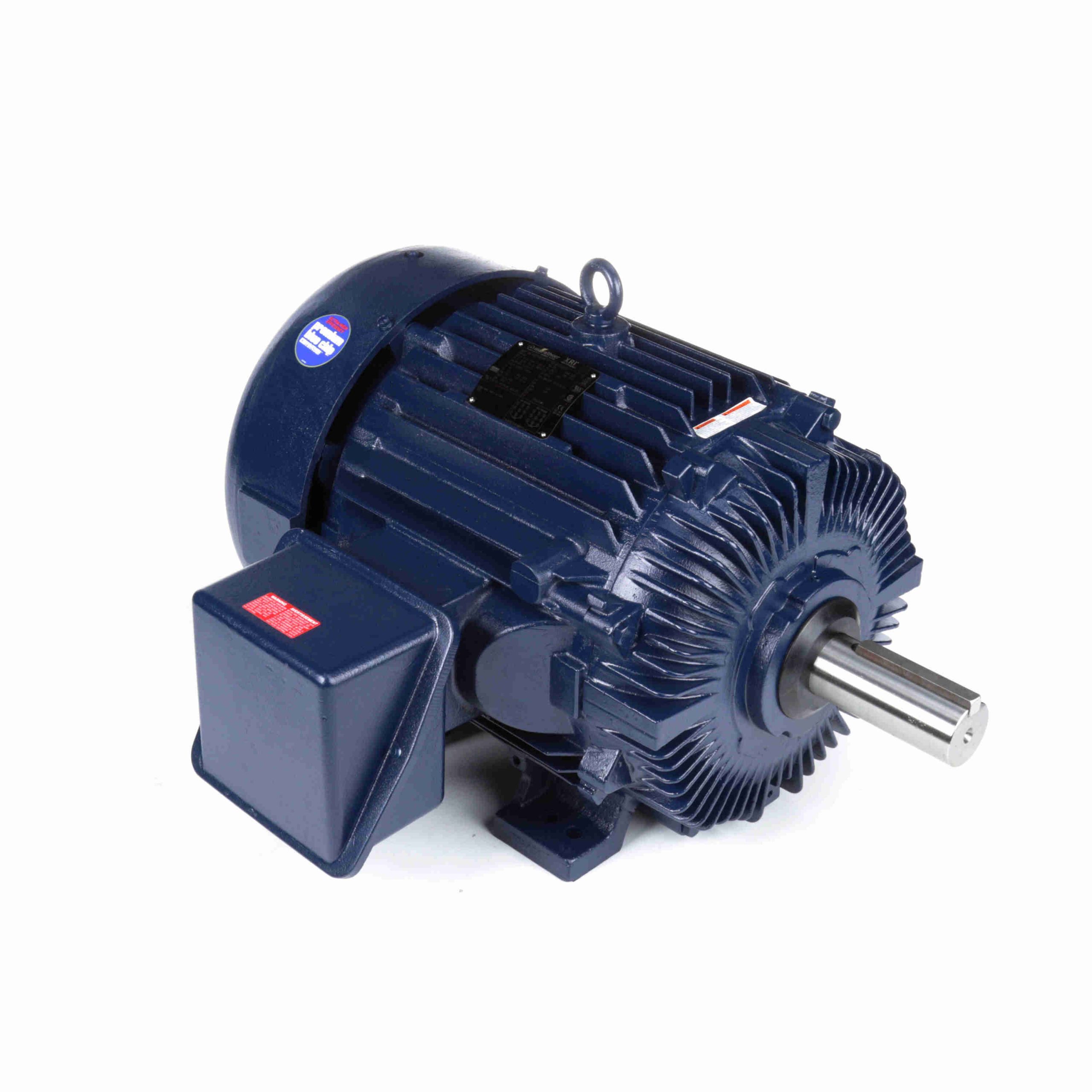

405TTFS16103 – Marathon 60 HP General Purpose Motor, 3 phase, 900 RPM, 460 V, 405T Frame, TEFC – L427A
405TTFS16103 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856052223 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.89 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
80.0 A |
Speed: |
890 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93.6 % |
Power Factor: |
74.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
405T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6316 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Reversible |
| Resistance Main: |
.113 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
37.14 in |
| Frame Length: |
16.75 in |
Shaft Diameter: |
2.875 in |
| Shaft Extension: |
7.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
355.00 |
444.0 |
525.00 |
148.0 |
600 |
|
|
60.00 |
| Full Load |
80.00 |
100.0 |
355.00 |
100.0 |
890 |
|
|
60.00 |
| 1/3 |
400.00 |
500.0 |
560.00 |
158.0 |
300 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
544.0 |
625.00 |
176.0 |
0 |
|
36.0 |
60.00 |
| 2/3 |
320.00 |
400.0 |
565.00 |
159.0 |
750 |
|
|
60.00 |
| Break-Down |
250.00 |
313.0 |
850.00 |
239.0 |
850 |
|
67.0 |
60.00 |
| No Load |
35.00 |
44.0 |
0.00 |
0.0 |
900 |
|
|
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
35.00 |
38.00 |
49.00 |
63.00 |
80.00 |
91.00 |
99.00 |
| Rated Output (KW) |
1.50 |
12.50 |
24.00 |
36.00 |
48.00 |
55.00 |
60.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.6 |
93.6 |
93.6 |
93.0 |
93.0 |
| Power Factor (%) |
5.0 |
41.0 |
62.0 |
71.0 |
74.5 |
76.0 |
76.5 |
| Speed (RPM) |
900 |
896 |
894 |
892 |
890 |
886 |
884 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
88.00 |
176.00 |
265.00 |
355.00 |
409.00 |
445.00 |
