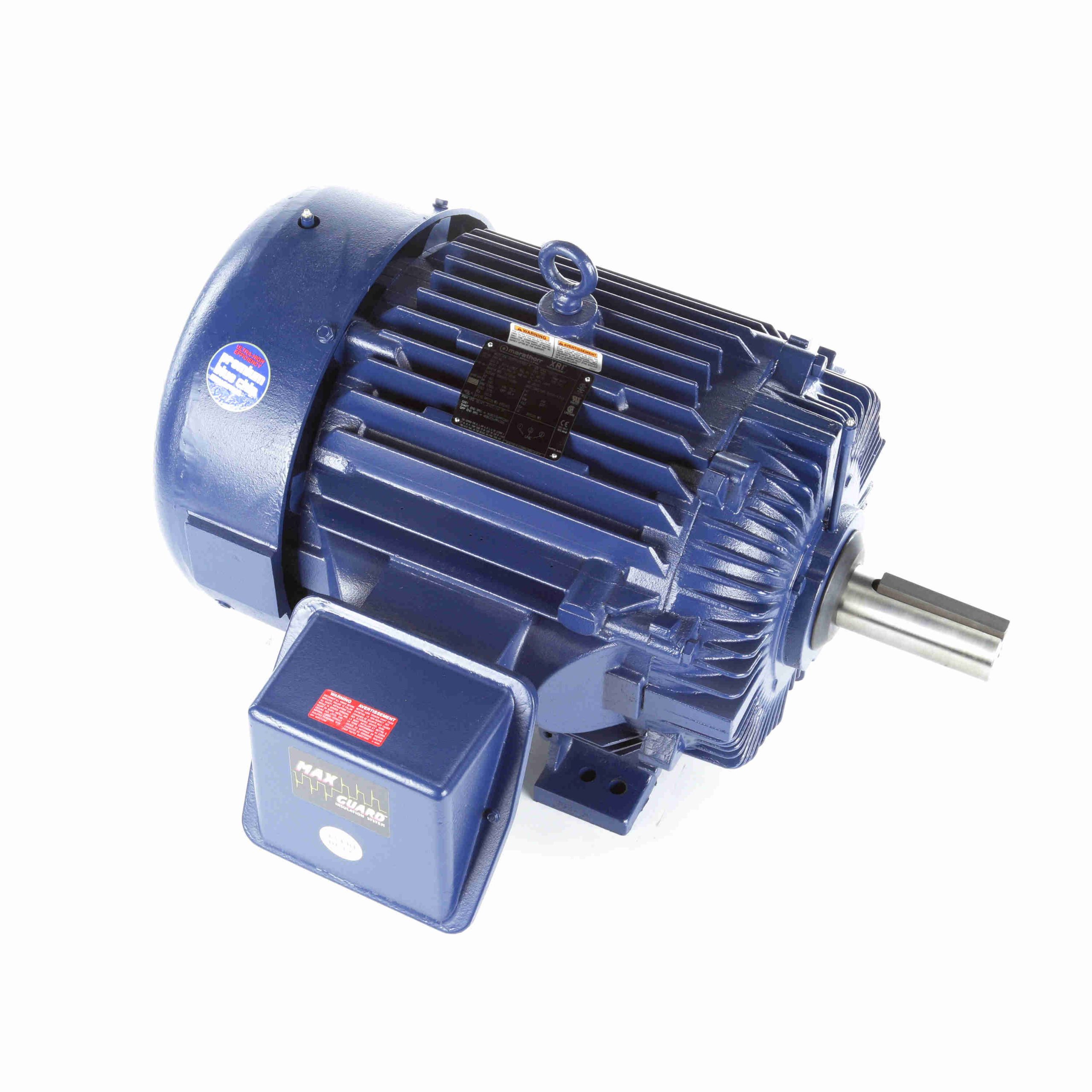

405TTFS6538 – Marathon 100 HP Severe Duty Motor, 3 phase, 1800 RPM, 575 V, 405T Frame, TEFC – E681

405TTFS6538 – Marathon 100 HP Severe Duty Motor, 3 phase, 1800 RPM, 575 V, 405T Frame, TEFC – E681

405TTFS6538 Marathon Other Severe Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Meets IEEE45 USCG Marine Duty, IP54 Construction, Meets Ford EM1 Automotive Duty Specification
  • Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
  • Provisions to add stub shaft for an encoder (182T-449T, TEFC only)
  • Internal and external epoxy paint
  • MAX GUARD® Class F insulation system
  • Constant Torque speed range is listed in CT SPEED RANGE column
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Bearing caps (254T and larger), Precision balanced to .08”/sec

Marathon Motors
Regal Beloit

Original price was: $19,412.00.Current price is: $13,836.87.

Description

405TTFS6538 – Marathon 100 HP Severe Duty Motor, 3 phase, 1800 RPM, 575 V, 405T Frame, TEFC – E681

405TTFS6538 Marathon Other Severe Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856020604 Weight: 0 LB
Packaged Length: 44.88 IN Packaged Width: 39.25 IN
Packaged Height: 28.89 IN

Nameplate Specifications

Output HP: 100 Hp Output KW: 75.0 kW
Frequency: 60 Hz Voltage: 575 V
Current: 90.5 A Speed: 1780 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 95.4 % Power Factor: 87
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: F
Frame: 405T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6316 Opp Drive End Bearing Size: 6313
UL: Recognized CSA: Y
CE: Y IP Code: 54

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: .054 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 37.14 in
Frame Length: 16.75 in Shaft Diameter: 2.875 in
Shaft Extension: 7.5 in Assembly/Box Mounting: F1/F2 Capable

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 370.00 327.0 715.00 242.0 1,675 67.5 100.00
2/3 575.00 509.0 465.00 158.0 1,200 100.00
Full Load 113.00 100.0 295.00 100.0 1,780 100.00
No Load 28.00 25.0 0.00 0.0 1,800 100.00
Locked-Rotor 675.00 597.0 445.00 151.0 0 28.0 100.00
Pull-Up 610.00 540.0 400.00 136.0 900 100.00
1/3 640.00 566.0 375.00 127.0 600 100.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 22.40 31.20 48.00 67.60 90.40 104.00 113.60
Rated Output (KW) 1.20 20.00 39.00 58.50 78.50 91.00 98.50
Efficiency (%) 0.0 94.5 95.8 95.8 95.4 95.0 94.5
Power Factor (%) 4.5 64.0 81.5 86.0 87.0 87.5 87.5
Speed (RPM) 1,800 1,795 1,790 1,785 1,780 1,775 1,770
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 105.0 0.0
Torque (ft-lbs) 0.00 73.00 147.00 221.00 295.00 341.00 370.00
