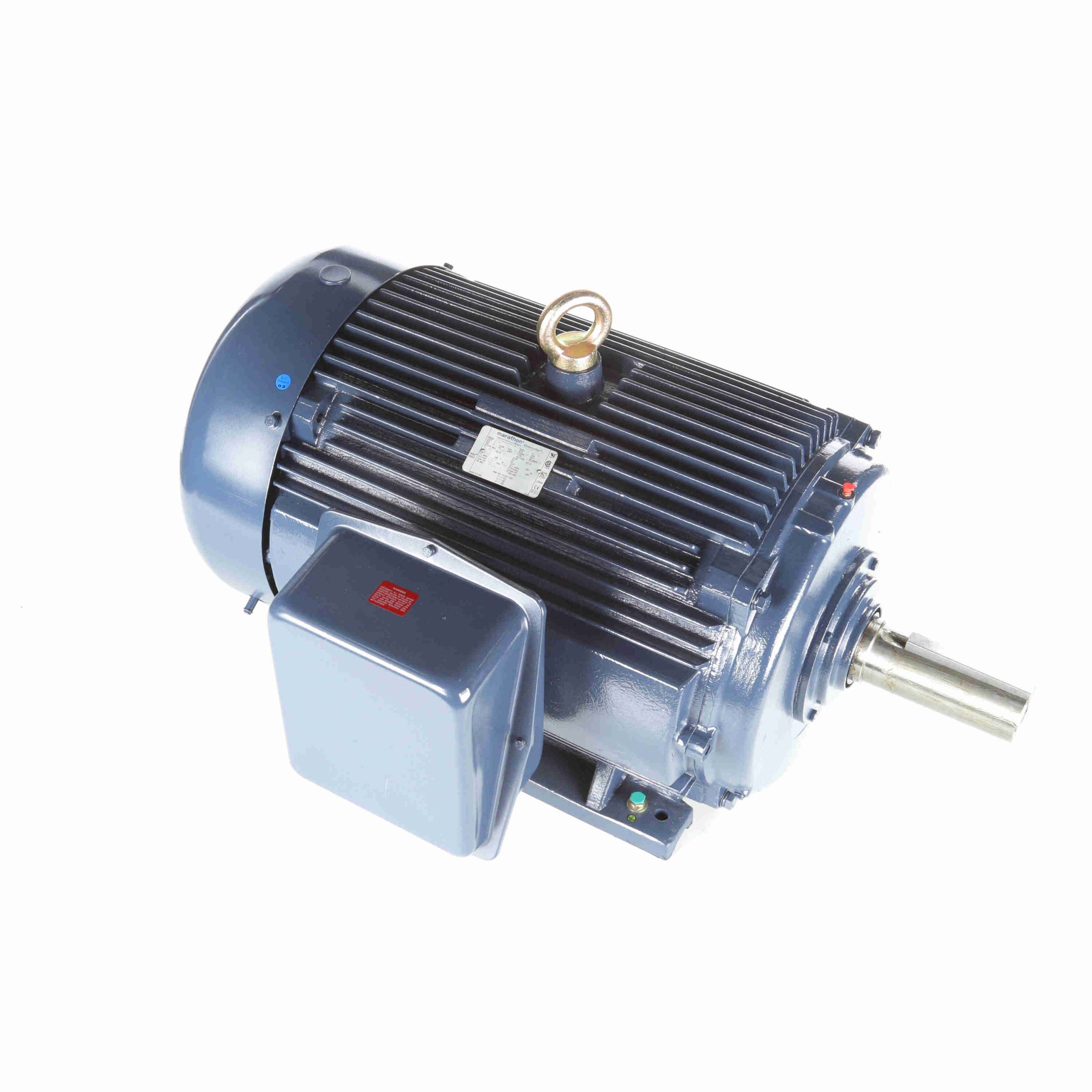

Original price was: $19,507.00.$12,219.96Current price is: $12,219.96.
| UPC: | 722856062376 | Weight: | 0 LB |
| Packaged Length: | 50 IN | Packaged Width: | 35 IN |
| Packaged Height: | 30 IN |
| Output HP: | 125 Hp | Output KW: | 93.0 kW |
| Frequency: | 60 Hz | Voltage: | 575 V |
| Current: | 112.0 A | Speed: | 1790 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 95.4 % | Power Factor: | 87 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 444T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6319 | Opp Drive End Bearing Size: | 6317 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Hazardous Location: | DIVISION 2 T2B |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Selective Clockwise |
| Resistance Main: | .0374 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 46.71 in |
| Frame Length: | 23.93 in | Shaft Diameter: | 3.375 in |
| Shaft Extension: | 8.5 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 140.00 | 100.0 | 367.00 | 100.0 | 1,790 | 87.5 | 125.00 | |
| No Load | 46.50 | 33.0 | 0.00 | 0.0 | 1,800 | 5.0 | 125.00 | |
| Pull-Up | 720.00 | 505.0 | 570.00 | 155.0 | 900 | 125.00 | ||
| Break-Down | 510.00 | 360.0 | 991.00 | 270.0 | 1,755 | 63.0 | 125.00 | |
| 1/3 | 785.00 | 555.0 | 560.00 | 152.0 | 600 | 125.00 | ||
| Locked-Rotor | 905.00 | 635.0 | 679.00 | 185.0 | 0 | 36.0 | 125.00 | |
| 2/3 | 655.00 | 460.0 | 705.00 | 192.0 | 1,200 | 125.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 37.20 | 45.76 | 64.64 | 87.84 | 112.00 | 130.00 | 141.60 |
| Rated Output (KW) | 2.50 | 25.50 | 49.20 | 73.50 | 97.50 | 113.00 | 123.00 |
| Efficiency (%) | 0.0 | 93.0 | 95.0 | 95.4 | 95.4 | 95.2 | 95.2 |
| Power Factor (%) | 5.0 | 56.0 | 77.0 | 84.2 | 87.5 | 87.5 | 87.5 |
| Speed (RPM) | 1,800 | 1,796 | 1,794 | 1,792 | 1,790 | 1,788 | 1,786 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 55.0 | 75.0 | 85.0 |
| Torque (ft-lbs) | 0.00 | 91.50 | 183.00 | 275.00 | 367.00 | 423.00 | 460.00 |
