445THFN8040 – Marathon 200 HP Variable Speed Motor, 3 phase, 1800 RPM, 460 V, 445T Frame, TEFC – Y578

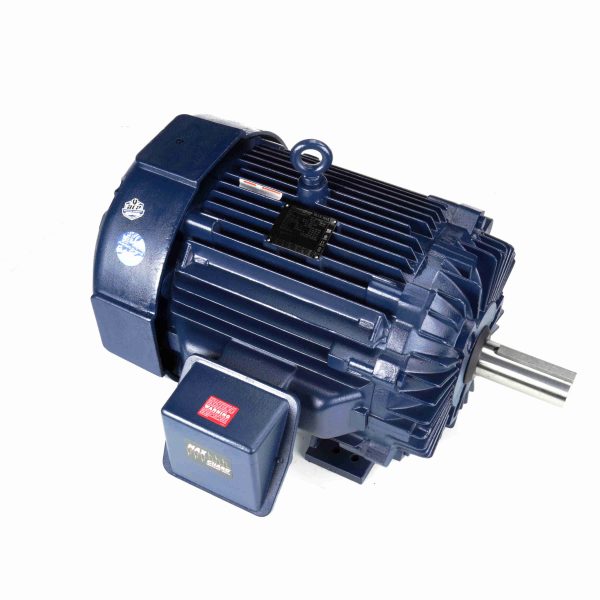

445THFN8040 Marathon 2000:1 With Encoder Provision Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856025500 |
Weight: |
0 LB |
| Packaged Length: |
56 IN |
Packaged Width: |
46 IN |
| Packaged Height: |
33.17 IN |
Nameplate Specifications
| Output HP: |
200 Hp |
Output KW: |
149.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
230.0 A |
Speed: |
1790 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
H |
| Design Code: |
INV |
KVA Code: |
K |
| Frame: |
445T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6318 |
Opp Drive End Bearing Size: |
6316 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Duty |
Starting Method: |
Inverter Only |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.016 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
45.54 in |
| Frame Length: |
20.25 in |
Shaft Diameter: |
3.375 in |
| Shaft Extension: |
8.75 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
1,900.00 |
826.0 |
1,450.00 |
247.0 |
1,200 |
|
|
200.00 |
| Pull-Up |
2,000.00 |
870.0 |
1,150.00 |
196.0 |
900 |
|
|
200.00 |
| Locked-Rotor |
2,100.00 |
913.0 |
1,225.00 |
209.0 |
0 |
|
27.0 |
200.00 |
| No Load |
81.00 |
35.0 |
0.00 |
0.0 |
1,800 |
|
|
200.00 |
| Break-Down |
1,235.00 |
537.0 |
2,260.00 |
385.0 |
1,680 |
|
65.5 |
200.00 |
| Full Load |
230.00 |
100.0 |
587.00 |
100.0 |
1,790 |
|
|
200.00 |
| 1/3 |
2,050.00 |
891.0 |
1,100.00 |
187.0 |
600 |
|
|
200.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
200 % |
| Current (Amps) |
81.00 |
99.00 |
135.00 |
179.00 |
230.00 |
278.00 |
332.00 |
0.00 |
| Rated Output (KW) |
4.50 |
41.50 |
79.50 |
118.00 |
157.00 |
196.00 |
235.00 |
0.00 |
| Efficiency (%) |
0.0 |
88.5 |
93.6 |
95.0 |
95.0 |
95.0 |
94.5 |
0.0 |
| Power Factor (%) |
6.5 |
53.0 |
74.0 |
82.5 |
86.0 |
88.0 |
88.5 |
0.0 |
| Speed (RPM) |
1,800 |
1,796 |
1,794 |
1,792 |
1,790 |
1,782 |
1,778 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
60.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
146.00 |
293.00 |
440.00 |
587.00 |
737.00 |
886.00 |
0.00 |
