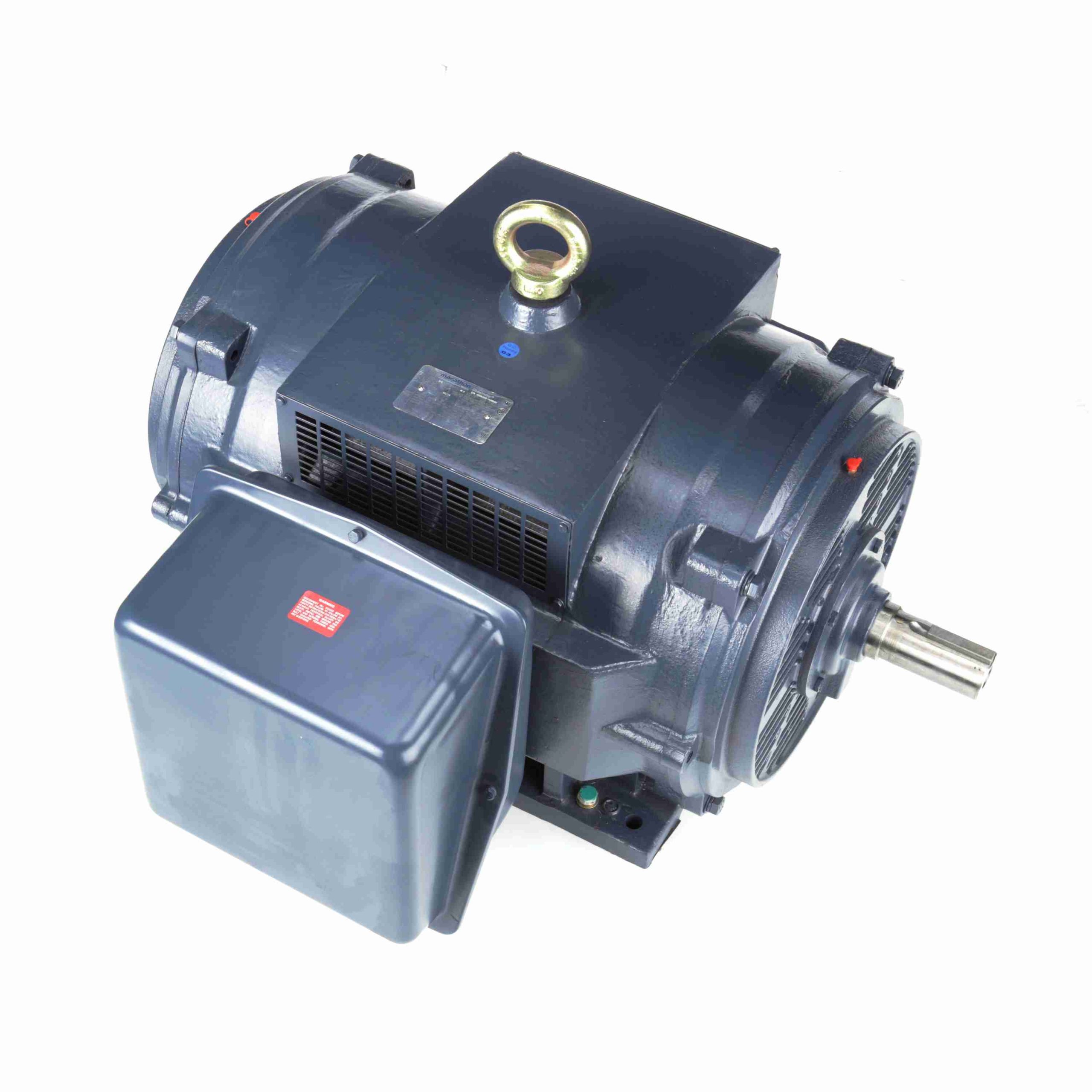

445TSTDCD6060 – Marathon 200 HP General Purpose Motor, 3 phase, 1800 RPM, 460 V, 445TS Frame, ODP – GT0090
445TSTDCD6060 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856061867 |
Weight: |
0 LB |
| Packaged Length: |
44 IN |
Packaged Width: |
37 IN |
| Packaged Height: |
30 IN |
Nameplate Specifications
| Output HP: |
200 Hp |
Output KW: |
149.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
223.0 A |
Speed: |
1790 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.8 % |
Power Factor: |
87.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
445TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6319 |
Opp Drive End Bearing Size: |
6317 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Part Wdg Start Or Inverter |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.019 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
40.83 in |
| Frame Length: |
25.98 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
4.75 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
760.00 |
340.0 |
1,408.00 |
240.0 |
1,750 |
|
61.0 |
200.00 |
| No Load |
66.00 |
30.0 |
0.00 |
0.0 |
1,800 |
|
5.5 |
200.00 |
| Pull-Up |
1,145.00 |
515.0 |
1,025.00 |
175.0 |
900 |
|
|
200.00 |
| Full Load |
223.00 |
100.0 |
587.00 |
100.0 |
1,790 |
|
87.5 |
200.00 |
| 2/3 |
1,030.00 |
460.0 |
1,210.00 |
205.0 |
1,200 |
|
|
200.00 |
| Locked-Rotor |
1,430.00 |
640.0 |
1,233.00 |
210.0 |
0 |
|
38.0 |
200.00 |
| 1/3 |
1,240.00 |
555.0 |
1,010.00 |
170.0 |
600 |
|
|
200.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
66.00 |
85.00 |
124.00 |
171.00 |
223.00 |
256.00 |
279.00 |
| Rated Output (KW) |
4.00 |
40.00 |
78.00 |
117.00 |
156.00 |
180.00 |
196.00 |
| Efficiency (%) |
0.0 |
93.6 |
95.4 |
95.8 |
95.8 |
95.0 |
94.5 |
| Power Factor (%) |
5.5 |
59.5 |
79.0 |
85.5 |
87.5 |
87.8 |
87.5 |
| Speed (RPM) |
1,800 |
1,798 |
1,796 |
1,792 |
1,790 |
1,786 |
1,784 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
70.0 |
| Torque (ft-lbs) |
0.00 |
146.00 |
293.00 |
440.00 |
588.00 |
677.00 |
737.00 |
