445TSTFC6001 – Marathon 150 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 445TS Frame, TEFC – GT1051

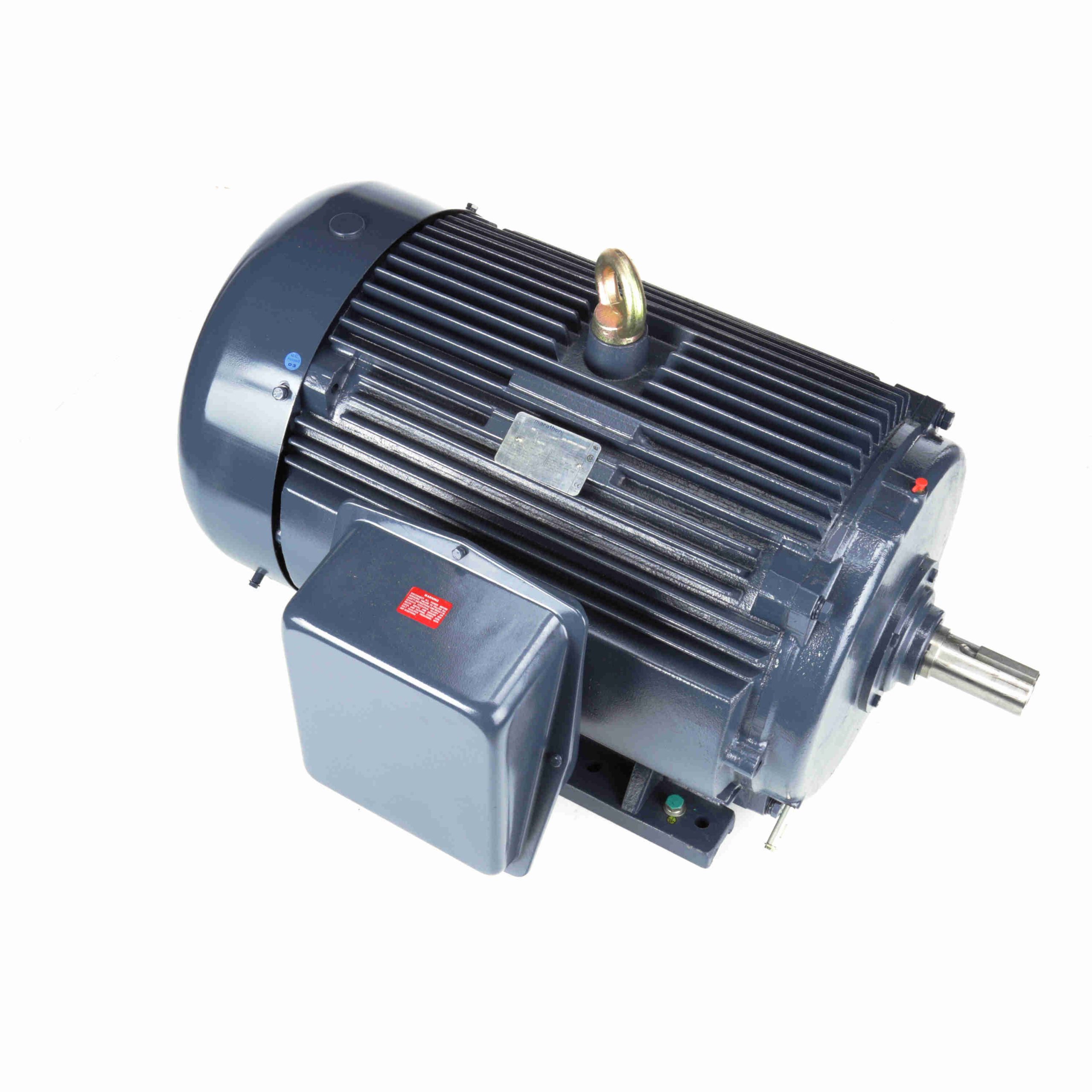

445TSTFC6001 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856002617 |
Weight: |
0 LB |
| Packaged Length: |
66 IN |
Packaged Width: |
46 IN |
| Packaged Height: |
32.39 IN |
Nameplate Specifications
| Output HP: |
150 Hp |
Output KW: |
112.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
162.0 A |
Speed: |
3580 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
90 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
445TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6314 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Part Wdg Start Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.018 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
47.05 in |
| Shaft Diameter: |
2.375 in |
Shaft Extension: |
4.75 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
33.00 |
20.5 |
0.00 |
0.0 |
3,600 |
|
10.0 |
150.00 |
| 1/3 |
1,050.00 |
648.0 |
400.00 |
180.0 |
1,200 |
|
|
150.00 |
| Pull-Up |
950.00 |
586.0 |
400.00 |
180.0 |
1,800 |
|
|
150.00 |
| Full Load |
162.00 |
100.0 |
220.00 |
100.0 |
3,580 |
|
90.0 |
150.00 |
| Break-Down |
600.00 |
370.0 |
550.00 |
252.0 |
3,475 |
|
63.0 |
150.00 |
| Locked-Rotor |
1,085.00 |
670.0 |
475.00 |
215.0 |
0 |
|
35.0 |
150.00 |
| 2/3 |
800.00 |
495.0 |
450.00 |
205.0 |
2,400 |
|
|
150.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
33.00 |
52.50 |
86.00 |
124.00 |
162.00 |
186.00 |
204.00 |
| Rated Output (KW) |
4.50 |
31.00 |
59.50 |
88.50 |
118.00 |
136.00 |
148.00 |
| Efficiency (%) |
0.0 |
90.2 |
94.1 |
95.0 |
95.0 |
95.0 |
94.5 |
| Power Factor (%) |
10.0 |
74.0 |
87.0 |
89.0 |
90.0 |
90.0 |
90.0 |
| Speed (RPM) |
3,600 |
3,595 |
3,590 |
3,585 |
3,580 |
3,578 |
3,575 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
55.00 |
110.00 |
165.00 |
220.00 |
254.00 |
276.00 |
