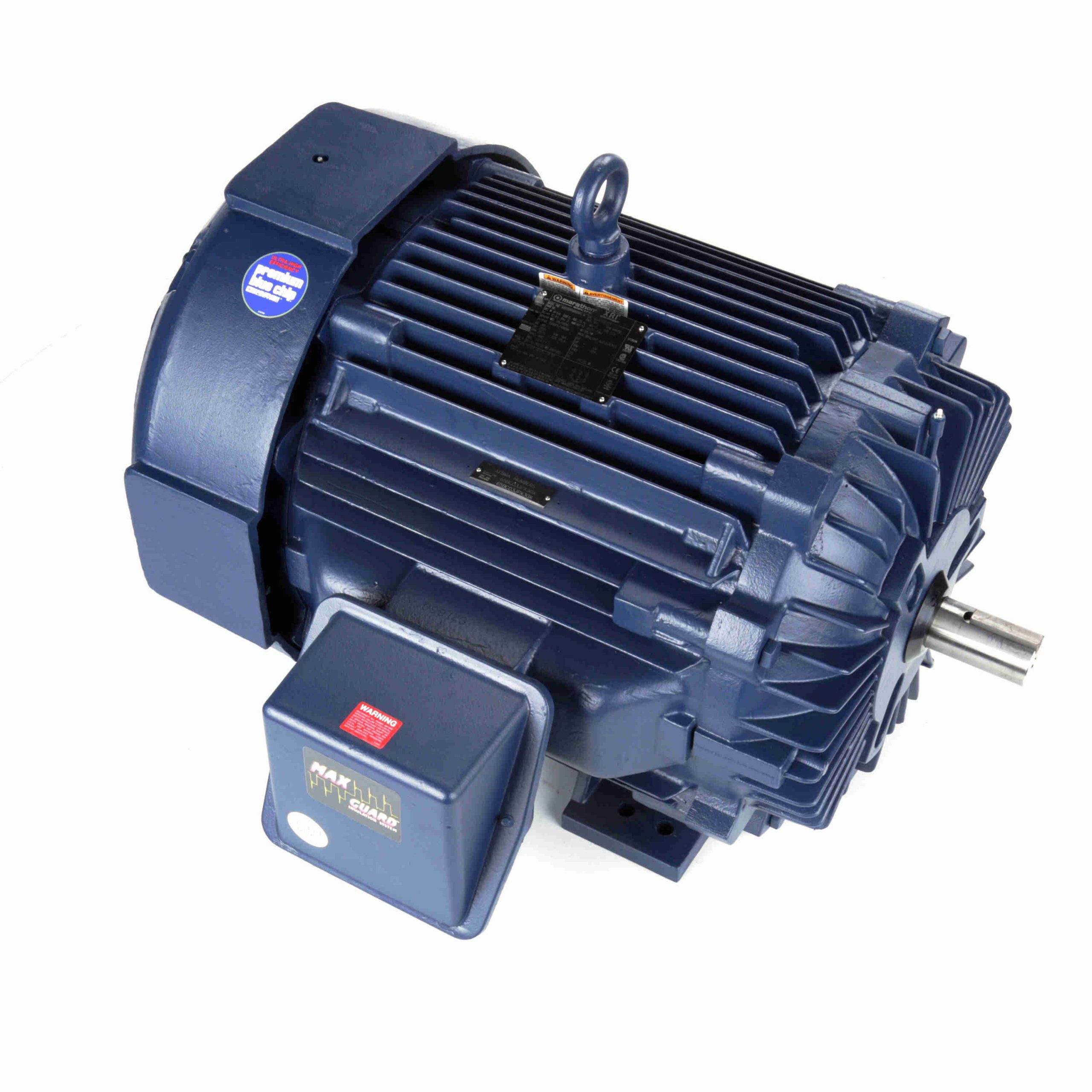

445TSTFN6505 – Marathon 200 HP Severe Duty Motor, 3 phase, 3600 RPM, 460 V, 445TS Frame, TEFC – E449
445TSTFN6505 Marathon Other Severe Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856020413 |
Weight: |
0 LB |
| Packaged Length: |
56 IN |
Packaged Width: |
46 IN |
| Packaged Height: |
33.36 IN |
Nameplate Specifications
| Output HP: |
200 Hp |
Output KW: |
149.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
224.0 A |
Speed: |
3575 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.4 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
H |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
445TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
54 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.0125 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
39.62 in |
| Frame Length: |
20.25 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
5 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
1,210.00 |
540.0 |
415.00 |
141.0 |
1,800 |
|
|
200.00 |
| No Load |
69.50 |
31.0 |
0.00 |
0.0 |
3,600 |
|
6.8 |
200.00 |
| 2/3 |
1,090.00 |
487.0 |
520.00 |
177.0 |
2,400 |
|
|
200.00 |
| 1/3 |
1,410.00 |
629.0 |
410.00 |
139.0 |
1,200 |
|
|
200.00 |
| Break-Down |
925.00 |
415.0 |
900.00 |
306.0 |
3,450 |
|
66.0 |
200.00 |
| Full Load |
224.00 |
100.0 |
294.00 |
100.0 |
3,575 |
|
88.0 |
200.00 |
| Locked-Rotor |
1,450.00 |
647.0 |
475.00 |
162.0 |
0 |
|
26.0 |
200.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
69.50 |
89.00 |
127.00 |
173.00 |
224.00 |
254.00 |
277.00 |
| Rated Output (KW) |
4.00 |
42.00 |
80.00 |
118.00 |
157.00 |
180.00 |
196.00 |
| Efficiency (%) |
0.0 |
90.2 |
94.1 |
95.0 |
95.4 |
95.4 |
95.0 |
| Power Factor (%) |
6.8 |
58.5 |
78.5 |
85.5 |
88.0 |
89.0 |
89.0 |
| Speed (RPM) |
3,600 |
3,595 |
3,590 |
3,580 |
3,575 |
3,570 |
3,565 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
73.00 |
147.00 |
220.00 |
294.00 |
338.00 |
368.00 |
