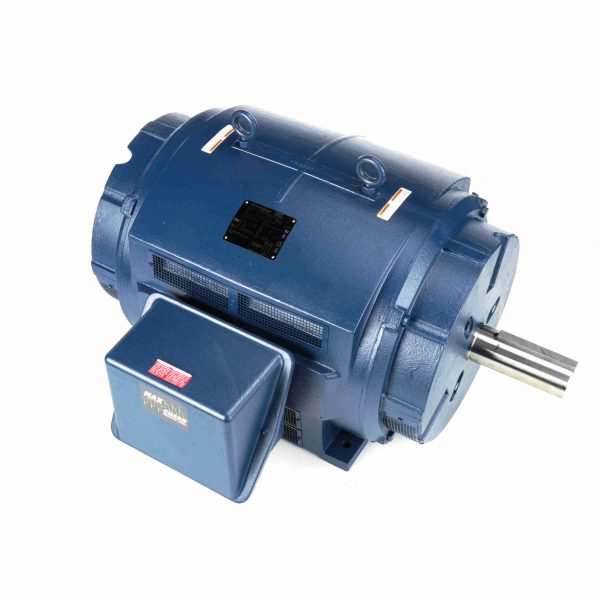

447TTDN16046 – Marathon 250 HP General Purpose Motor, 3 phase, 1800 RPM, 460 V, 447T Frame, ODP – U786
447TTDN16046 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856013521 |
Weight: |
0 LB |
| Packaged Length: |
56 IN |
Packaged Width: |
46 IN |
| Packaged Height: |
31.27 IN |
Nameplate Specifications
| Output HP: |
250 Hp |
Output KW: |
187.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
284.0 A |
Speed: |
1782 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.8 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
447T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6318 |
Opp Drive End Bearing Size: |
6314 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Part Wdg Start & Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.017 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
43.25 in |
| Frame Length: |
24.38 in |
Shaft Diameter: |
3.375 in |
| Shaft Extension: |
8.71 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
1,500.00 |
528.0 |
1,200.00 |
163.0 |
900 |
|
|
250.00 |
| Full Load |
284.00 |
100.0 |
736.00 |
100.0 |
1,782 |
|
|
250.00 |
| Locked-Rotor |
1,650.00 |
581.0 |
1,325.00 |
180.0 |
0 |
|
32.0 |
250.00 |
| Break-Down |
875.00 |
308.0 |
1,550.00 |
211.0 |
1,725 |
|
64.0 |
250.00 |
| 2/3 |
1,250.00 |
440.0 |
1,300.00 |
177.0 |
1,500 |
|
|
250.00 |
| No Load |
81.00 |
29.0 |
0.00 |
0.0 |
1,800 |
|
|
250.00 |
| 1/3 |
1,600.00 |
563.0 |
1,200.00 |
163.0 |
600 |
|
|
250.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
81.00 |
105.00 |
156.00 |
215.00 |
284.00 |
325.00 |
355.00 |
| Rated Output (KW) |
4.00 |
49.50 |
97.00 |
145.00 |
195.00 |
225.00 |
245.00 |
| Efficiency (%) |
0.0 |
94.1 |
95.8 |
95.8 |
95.8 |
95.8 |
95.4 |
| Power Factor (%) |
3.5 |
59.0 |
78.0 |
84.0 |
86.0 |
86.0 |
86.0 |
| Speed (RPM) |
1,800 |
1,796 |
1,792 |
1,788 |
1,782 |
1,780 |
1,778 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
183.00 |
366.00 |
551.00 |
736.00 |
848.00 |
925.00 |
