Description

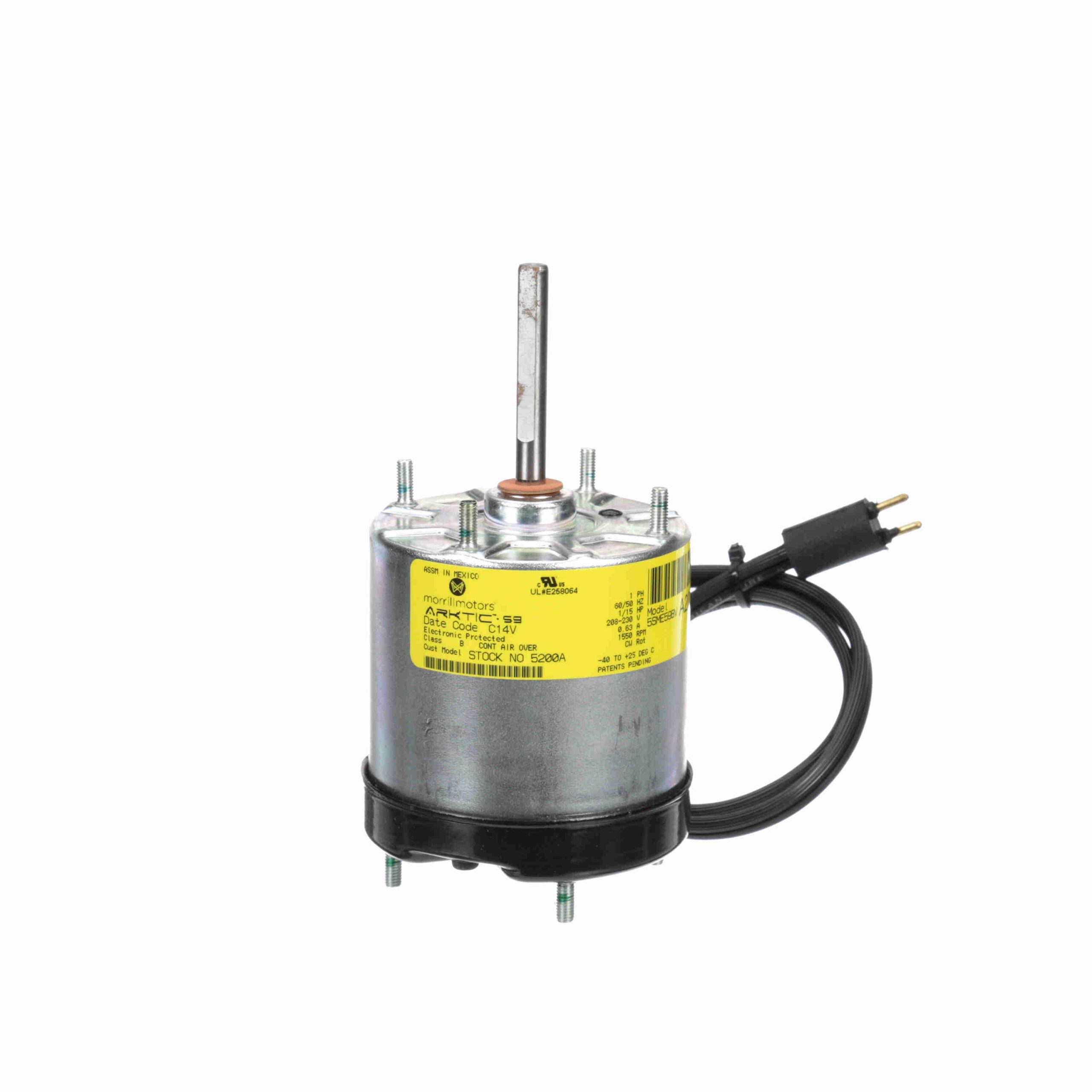

5200A – Morrill Motors 1/15 HP Refrigeration Motor, 1550 RPM, 208-230 Volts, 3.3″ Diameter, TEAO – 5200A
5200A Morrill Refrigeration Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585024668 |
Weight: |
4 LB |
| Packaged Length: |
8 IN |
Packaged Width: |
6.5 IN |
| Packaged Height: |
10.12 IN |
Nameplate Specifications
| Output HP: |
1/15 Hp |
Output KW: |
0.052 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230 V |
| Current: |
0.63 A |
Speed: |
1550 rpm |
| Phase: |
1 |
Duty: |
Continuous Air Over |
| Insulation Class: |
B |
Frame: |
3.3 |
| Enclosure: |
Totally Enclosed Air Over |
Thermal Protection: |
Electronically Protected |
| Ambient Temperature: |
25 °C |
UL: |
Yes |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
Electronically Commutated Motor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Clockwise Opposite Shaft End |
| Mounting: |
Extended Studs |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
6.42 in |
Frame Length: |
3.36 in |
| Shaft Diameter: |
0.312 in |
Shaft Extension: |
2.61 in |
Morrill Motors
Regal Beloit
