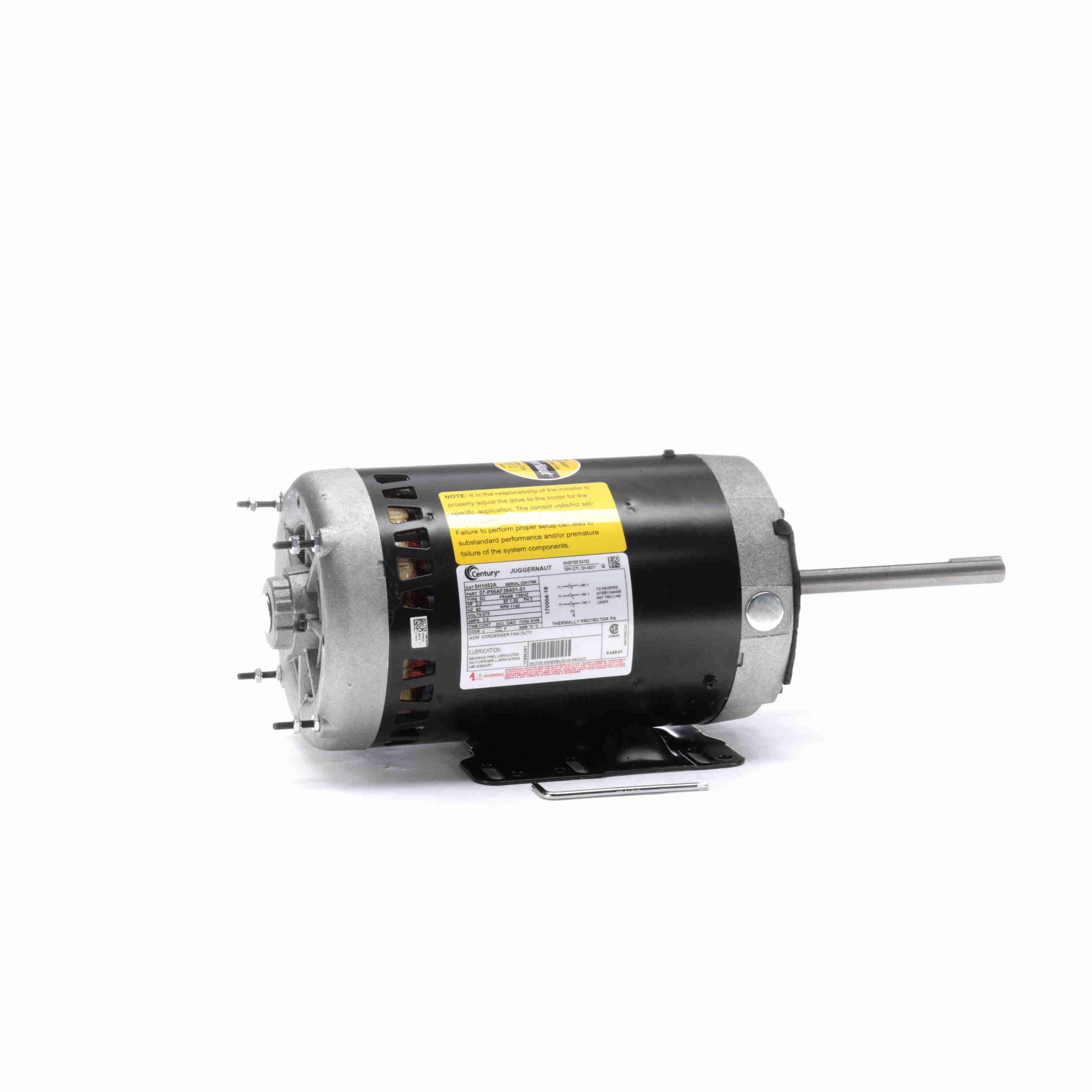

5H1052A – Century 2.0 HP Condenser Fans HVAC/R Motor, 3 phase, 1200 RPM, 575 V, 56HZ Frame, OPAO – 5H1052A

5H1052A – Century 2.0 HP Condenser Fans HVAC/R Motor, 3 phase, 1200 RPM, 575 V, 56HZ Frame, OPAO – 5H1052A

5H1052A Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Automatic reset thermal protector
  • Quick-connect design

Century Motors
Regal Beloit

Description

5H1052A – Century 2.0 HP Condenser Fans HVAC/R Motor, 3 phase, 1200 RPM, 575 V, 56HZ Frame, OPAO – 5H1052A

5H1052A Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674066671 Weight: 44 LB
Packaged Length: 23 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 2.0 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 575 V
Current: 3.0 A Speed: 1140 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: F
Frame: Y56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 70 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 6 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 18.63 in
Frame Length: 8.25 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in
