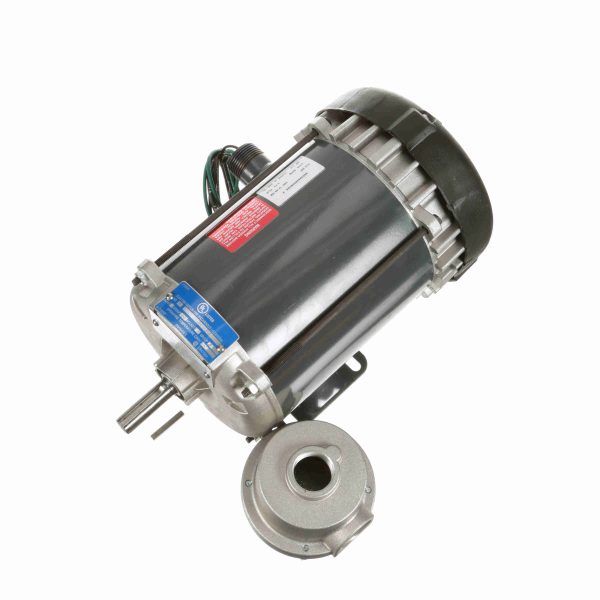

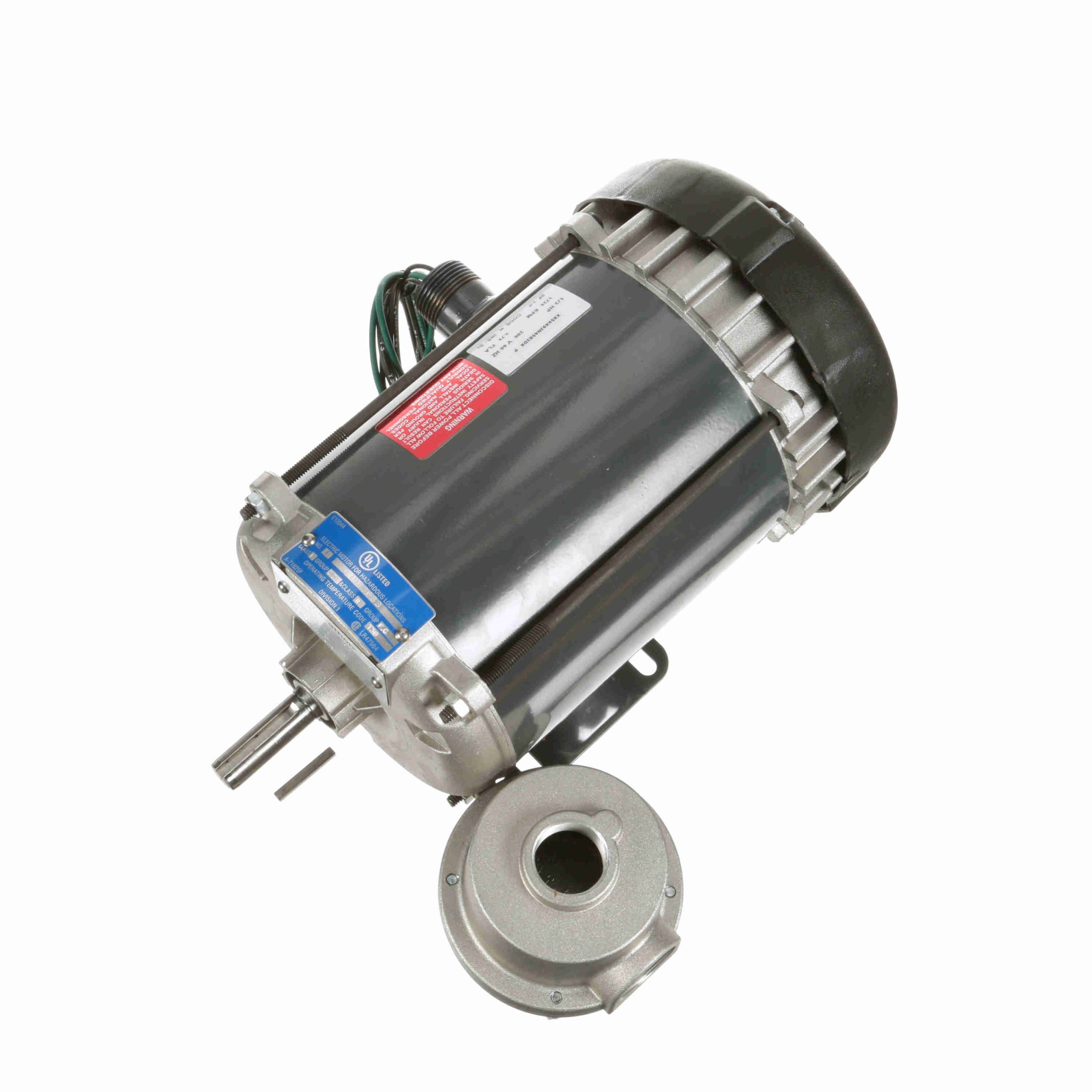

5K49JN4582 – Marathon 0.50 HP Explosion Proof Motor, 3 phase, 1800 RPM, 200 V, 56 Frame, EPFC – K2102
5K49JN4582 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856068347 |
Weight: |
29 LB |
| Packaged Length: |
16.38 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
8.62 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
200 V |
| Current: |
2.8 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
68 % |
Power Factor: |
61.1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
M |
| Frame: |
56 |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
40 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.94 in |
| Frame Length: |
6.81 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
6.20 |
517.0 |
6.60 |
440.0 |
750 |
|
|
0.50 |
| 1/3 |
6.80 |
567.0 |
6.00 |
400.0 |
250 |
|
|
0.50 |
| Break-Down |
4.80 |
400.0 |
7.20 |
480.0 |
1,150 |
|
86.0 |
0.50 |
| Full Load |
1.20 |
100.0 |
1.50 |
100.0 |
1,725 |
|
|
0.50 |
| Pull-Up |
6.50 |
542.0 |
6.20 |
413.0 |
500 |
|
|
0.50 |
| Locked-Rotor |
7.00 |
583.0 |
6.20 |
413.0 |
0 |
|
82.0 |
0.50 |
| No Load |
0.92 |
77.0 |
0.00 |
0.0 |
1,800 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
| Current (Amps) |
2.12 |
2.16 |
2.25 |
2.30 |
2.76 |
2.88 |
2.99 |
3.11 |
3.34 |
| Rated Output (KW) |
0.10 |
0.20 |
0.30 |
0.40 |
0.51 |
0.58 |
0.62 |
0.74 |
0.87 |
| Efficiency (%) |
0.0 |
48.0 |
63.5 |
65.5 |
68.0 |
70.0 |
72.5 |
75.5 |
75.5 |
| Power Factor (%) |
14.0 |
26.0 |
38.0 |
48.5 |
61.1 |
63.0 |
65.0 |
71.0 |
76.0 |
| Speed (RPM) |
1,800 |
1,785 |
1,775 |
1,750 |
1,725 |
1,722 |
1,720 |
1,715 |
1,700 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
75.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.37 |
0.74 |
1.10 |
1.50 |
1.80 |
2.00 |
2.30 |
2.70 |
