Description

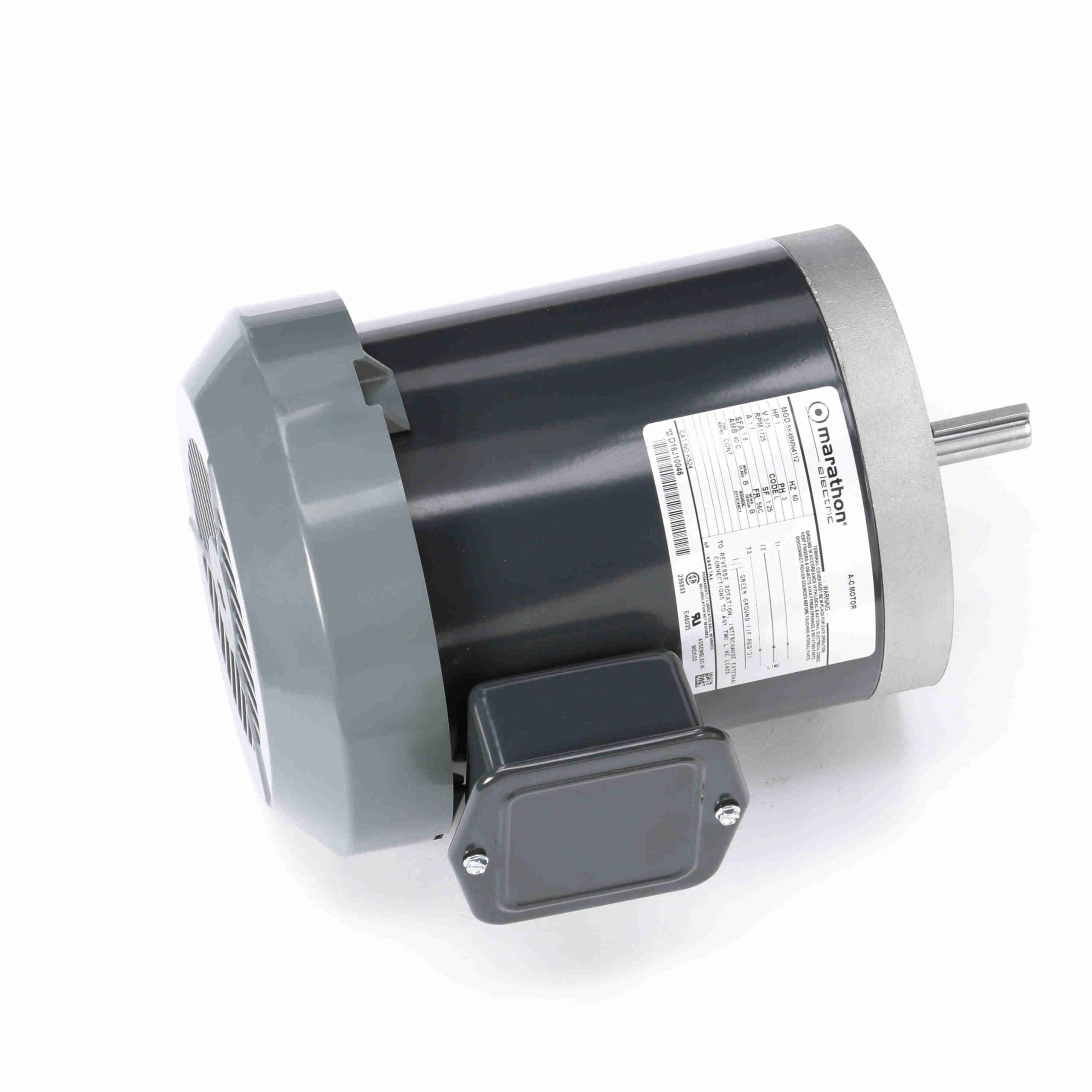

5K49MN4112 – Marathon 1 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 56C Frame, TEFC – K524
5K49MN4112 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856015372 |
Weight: |
27 LB |
| Packaged Length: |
15.14 IN |
Packaged Width: |
10.19 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
1.7 A |
Speed: |
1725 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
0 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
N/R |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Yes |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Three Phase |
Starting Method: |
N/R |
| Poles: |
4 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Round |
Motor Orientation: |
ANY |
| Drive End Bearing: |
LOCKED |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
11.44 in |
| Frame Length: |
6.15 in |
Shaft Extension: |
.625 X 1.88 – .188 X .188 KEY in |
Marathon Motors
Regal Beloit
