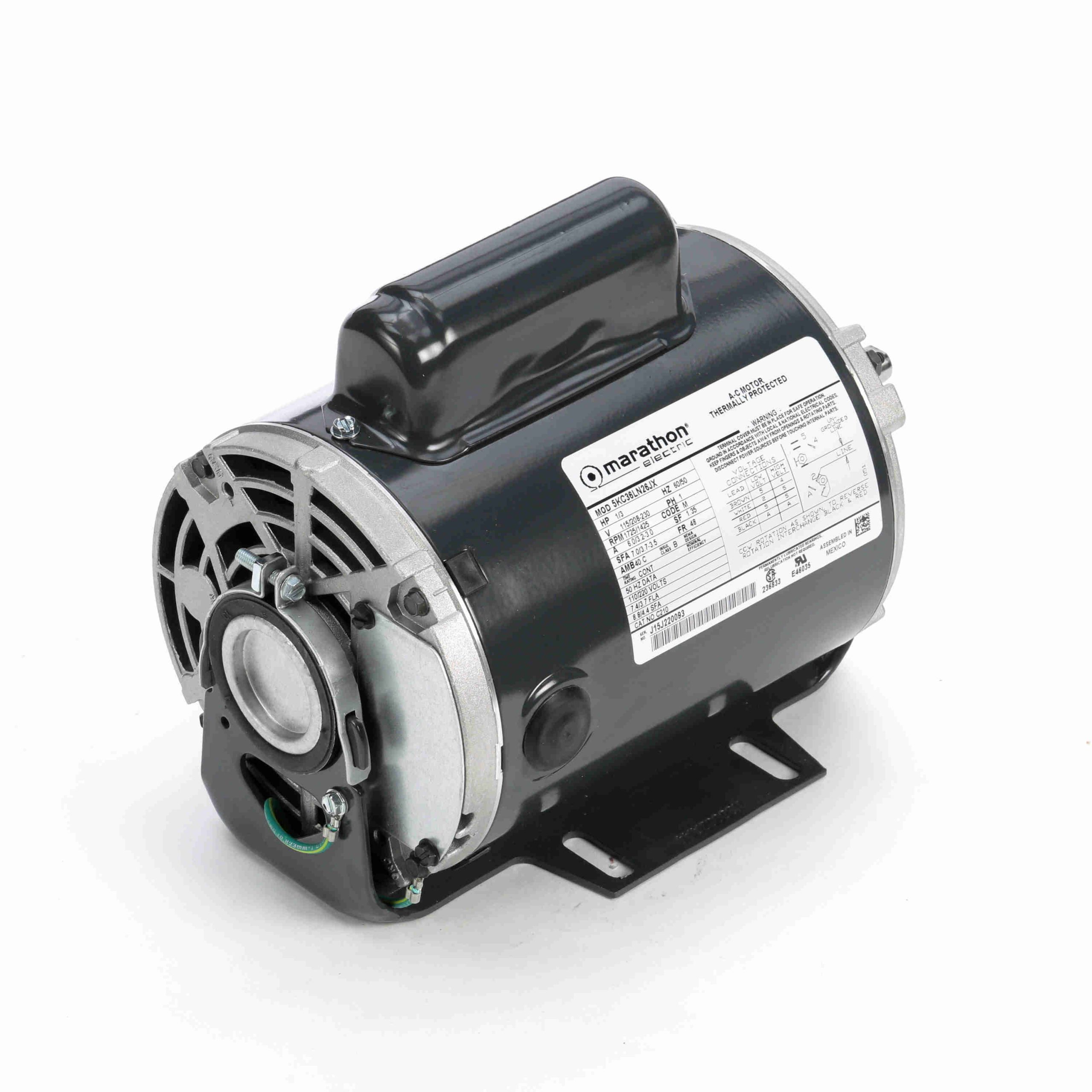

5KC36LN26X – Marathon 1/3 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 48 Frame, ODP – C210

5KC36LN26X – Marathon 1/3 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 48 Frame, ODP – C210

5KC36LN26X Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Heavy gauge steel frame and base
  • Ball bearings
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower

Marathon Motors
Regal Beloit

Original price was: $733.00.Current price is: $460.73.

Description

5KC36LN26X – Marathon 1/3 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 48 Frame, ODP – C210

5KC36LN26X Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856007353 Weight: 18 LB
Packaged Length: 12.63 IN Packaged Width: 6.94 IN
Packaged Height: 7.5 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 6.0,3.2-3.0 A Speed: 1725/1425 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 59.5 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: M Frame: 48
Enclosure: Drip Proof Thermal Protection: AUTO
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: SM
Poles: 4 Rotation: Counterclockwise/Clockwise
Mounting: Resilient Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 10 in
Frame Length: 6.22 in Shaft Diameter: 0.5 in
Shaft Extension: 1.5 in
