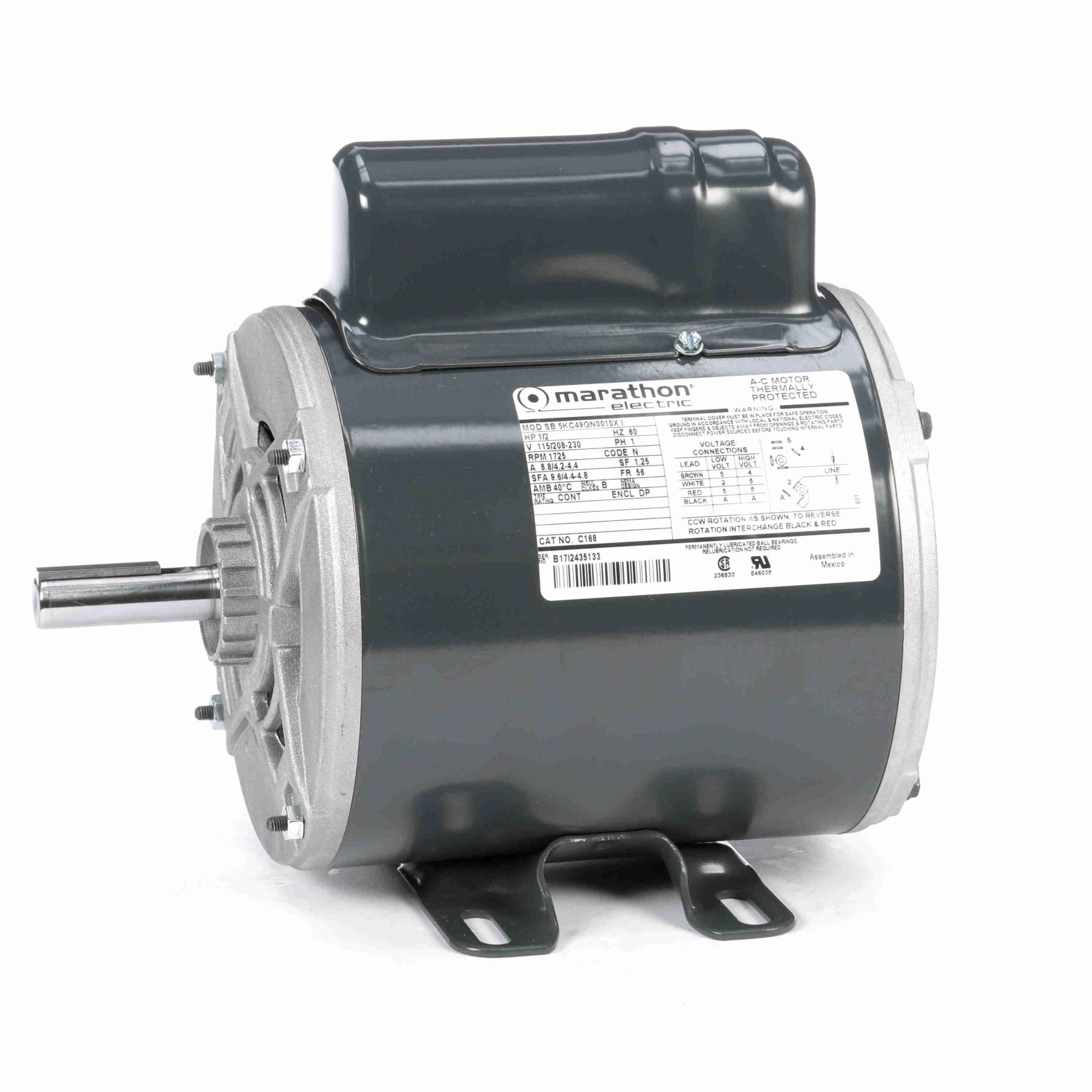

5KC49GN0010X – Marathon .5 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP – C168

5KC49GN0010X – Marathon .5 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP – C168

5KC49GN0010X Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Heavy gauge steel frame and base
  • Ball bearings (except as noted)
  • Economical split phase or capacitor start designs, as noted
  • Service Factor, as noted
  • UL Recognized and CSA Certified

Marathon Motors
Regal Beloit

Description

5KC49GN0010X – Marathon .5 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP – C168

5KC49GN0010X Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856006400 Weight: 21 LB
Packaged Length: 13.69 IN Packaged Width: 7.13 IN
Packaged Height: 7.5 IN

Nameplate Specifications

Output HP: .5 Hp Output KW: .37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 8.8 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 0 % Power Factor: 0
Duty: CONT Insulation Class: B
KVA Code: N Frame: 56
Enclosure: DP Thermal Protection: AUTO
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: Capacitor start(CSIR) Starting Method: SM
Poles: 4 Rotation: CCW/CW
Mounting: WB Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Overall Length: 10.38 in Frame Length: 6.15 in
Shaft Extension: .625 X 1.88 – .188 X .188 KEY in
