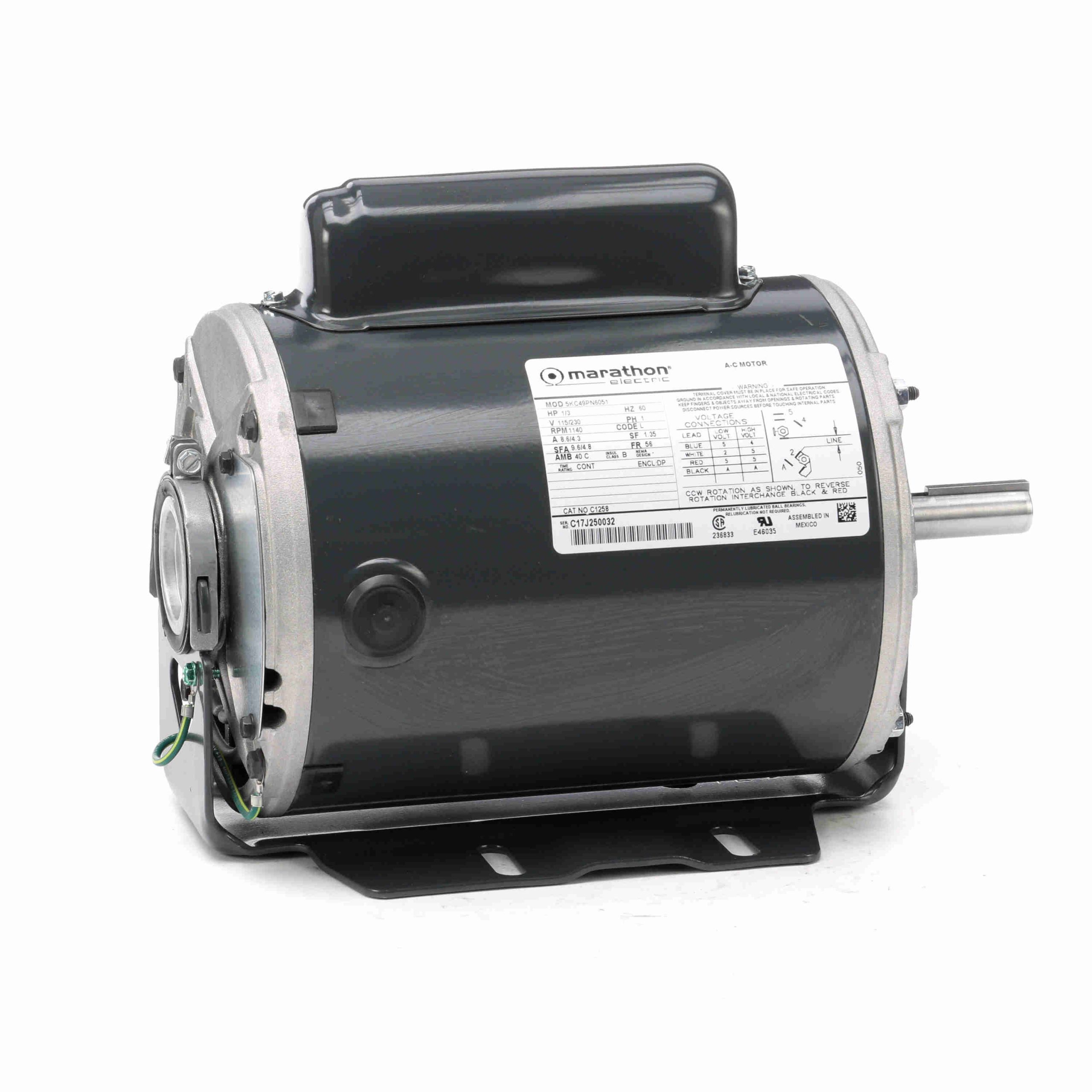

5KC49PN6051 – Marathon 1/3 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56 Frame, ODP – C1258

5KC49PN6051 – Marathon 1/3 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56 Frame, ODP – C1258

5KC49PN6051 Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Heavy gauge steel frame and base
  • Ball bearings

Marathon Motors
Regal Beloit

Original price was: $1,017.00.Current price is: $639.25.

Description

5KC49PN6051 – Marathon 1/3 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56 Frame, ODP – C1258

5KC49PN6051 Marathon Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856007292 Weight: 28 LB
Packaged Length: 13.69 IN Packaged Width: 7.13 IN
Packaged Height: 7.5 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 8.6,4.3 A Speed: 1140 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 50 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: L Frame: 56
Enclosure: Drip Proof Thermal Protection: N/R
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: SM
Poles: 6 Rotation: Counterclockwise/Clockwise
Mounting: Resilient Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 11.38 in
Frame Length: 7.15 in Shaft Diameter: 0.63 in
Shaft Extension: 1.88 in
