Description

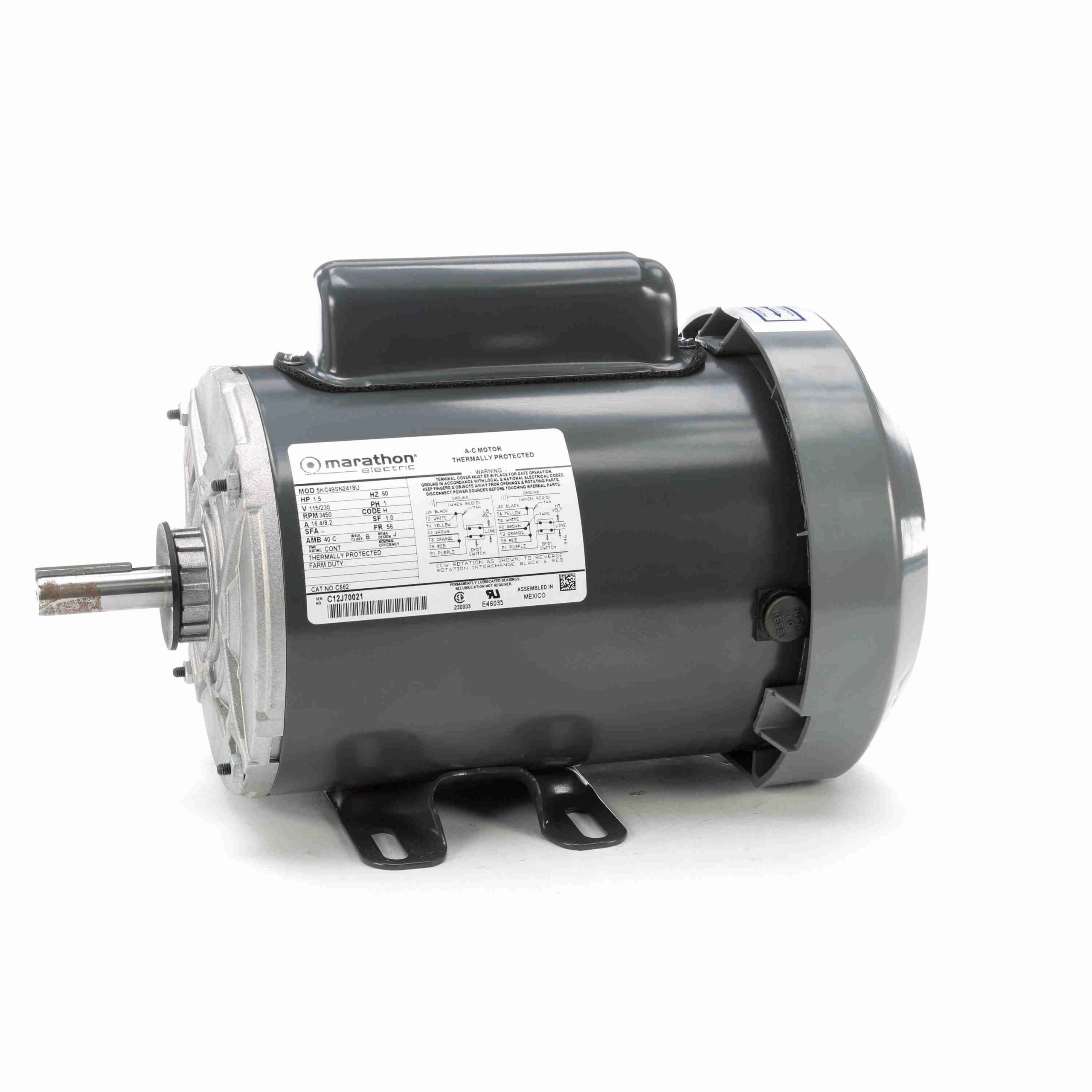

5KC49SN2418U – Marathon 1.5 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, TEFC – C662
5KC49SN2418U Marathon Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856008701 |
Weight: |
35 LB |
| Packaged Length: |
15.14 IN |
Packaged Width: |
10.19 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
1.5 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
16.4,8.2 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
73 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
J |
KVA Code: |
H |
| Frame: |
56 |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
MAN |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Yes |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
SM |
| Poles: |
2 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Rigid Base |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
12.96 in |
| Frame Length: |
7.68 in |
Shaft Diameter: |
0.63 in |
| Shaft Extension: |
1.88 in |
