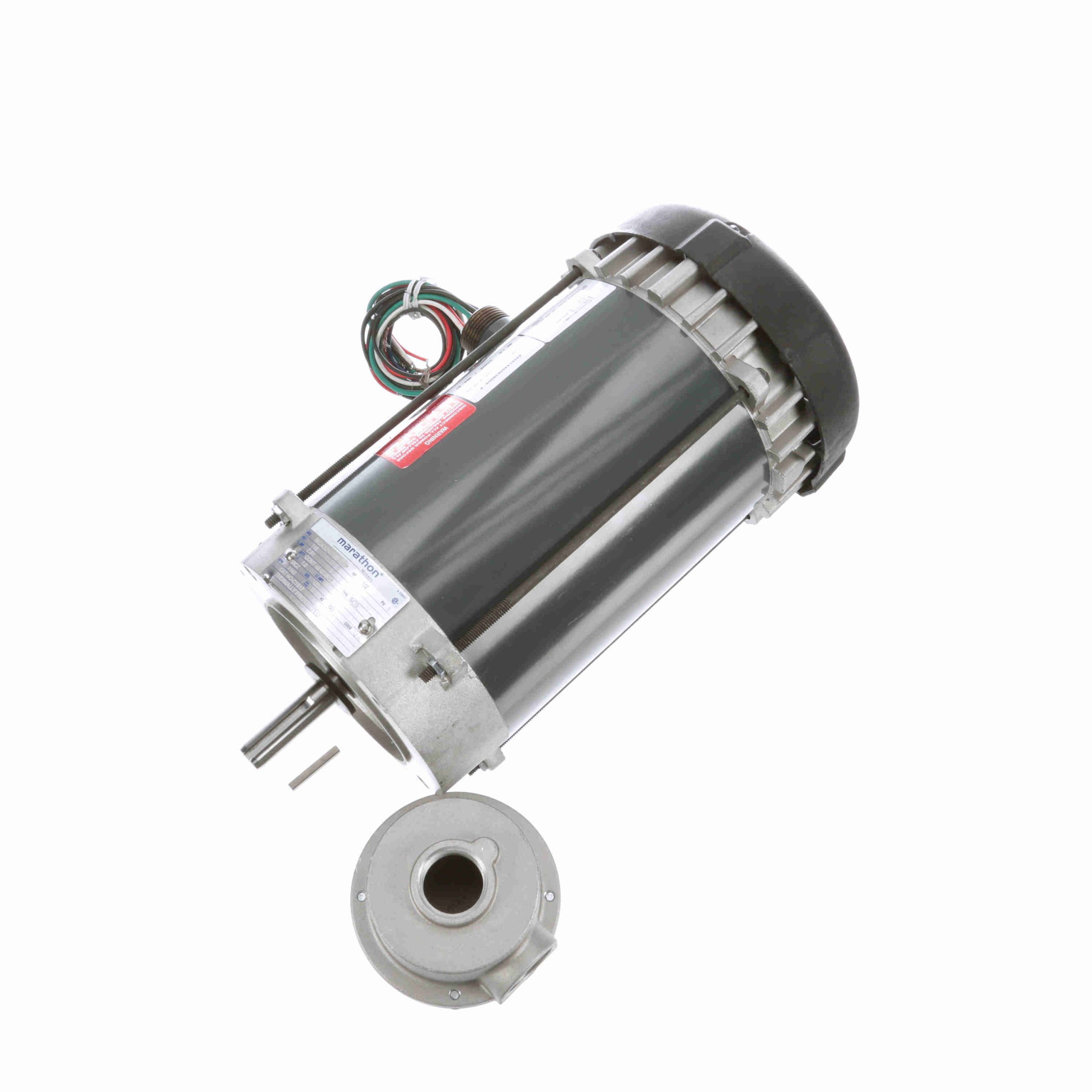

5KC49SN6380 – Marathon 0.50 HP Explosion Proof Motor, 1 phase, 1200 RPM, 115 V, 56CZ Frame, EPFC – C1817
5KC49SN6380 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856068491 |
Weight: |
40 LB |
| Packaged Length: |
19.69 IN |
Packaged Width: |
12.31 IN |
| Packaged Height: |
12.62 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
7.8 A |
Speed: |
1140 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
63.8 % |
Power Factor: |
65.2 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
J |
| Frame: |
56CZ |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
UL Listed And CSA Certified |
CSA: |
N |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
15.30 in |
| Frame Length: |
7.81 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.42 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
7.40 |
|
61.70 |
|
1,079 |
1.30 |
|
0.50 |
| Pull-Up |
15.80 |
|
36.70 |
|
436 |
2.70 |
|
0.50 |
| Locked-Rotor |
16.00 |
|
44.40 |
|
0 |
2.80 |
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
5.40 |
5.58 |
6.12 |
6.94 |
8.06 |
8.98 |
9.72 |
| Rated Output (KW) |
0.11 |
0.22 |
0.34 |
0.47 |
0.61 |
0.72 |
0.80 |
| Efficiency (%) |
|
|
|
|
|
|
|
| Power Factor (%) |
|
|
|
|
|
|
|
| Speed (RPM) |
1,200 |
1,189 |
1,178 |
1,168 |
1,154 |
1,142 |
1,133 |
| Temp. Rise @ FL |
|
|
|
|
|
|
|
| Torque (ft-lbs) |
0.00 |
8.93 |
17.90 |
27.10 |
36.50 |
42.40 |
46.50 |
