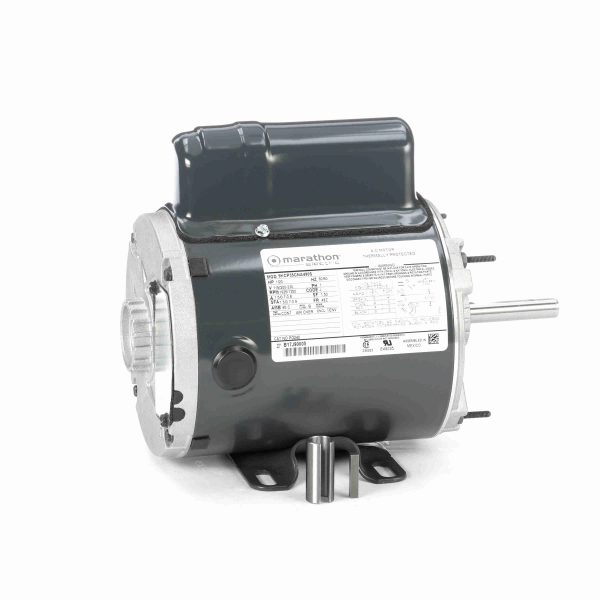

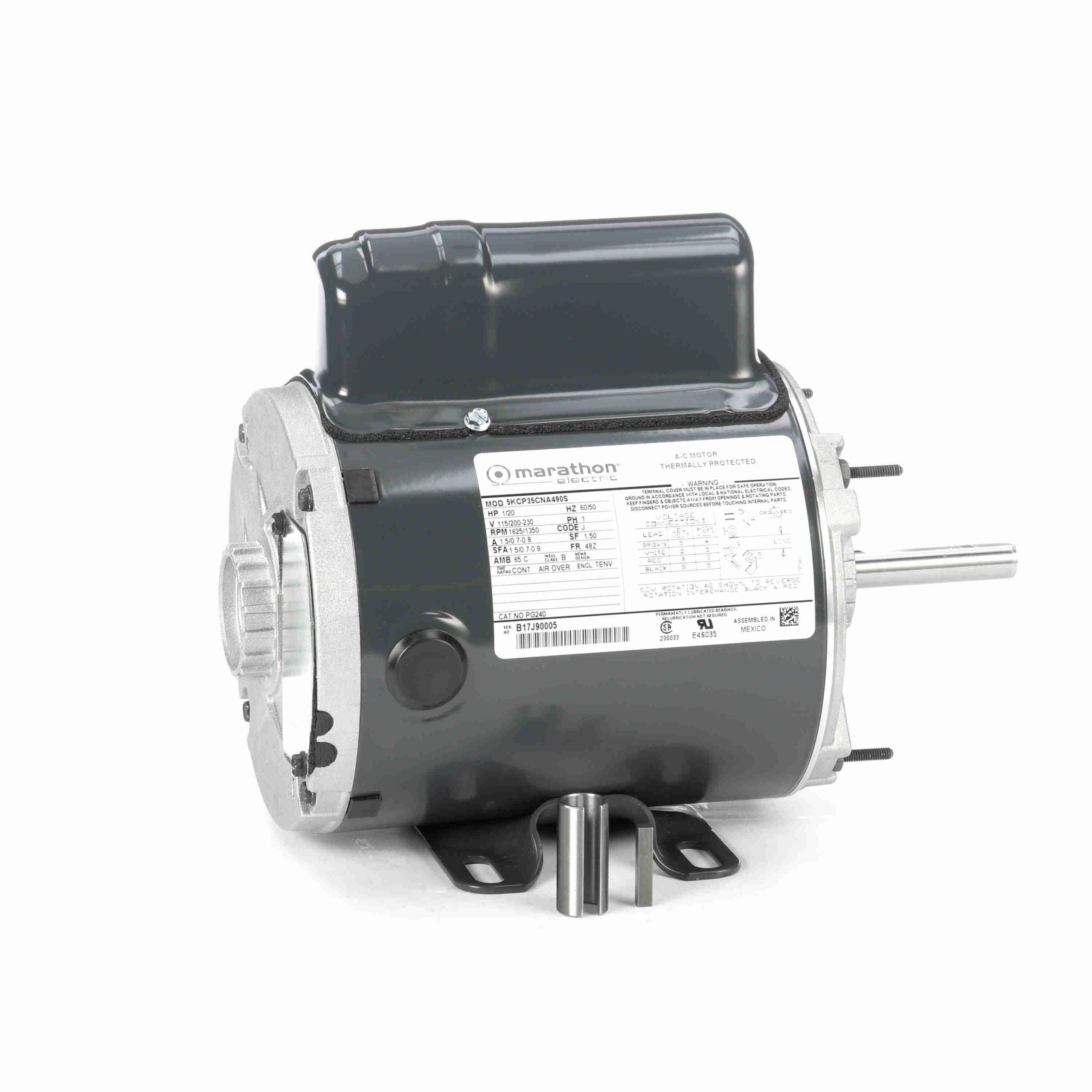

5KCP35CNA490S – Marathon 1/20 HP Direct Drive Blower and Unit Heater HVAC/R Motor, 1 phase, 1800 RPM, 115/200-230 V, 48Z Frame, TENV – PG240
5KCP35CNA490S Marathon Direct Drive Blower & Unit Heater Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856041791 |
Weight: |
12 LB |
| Packaged Length: |
13.69 IN |
Packaged Width: |
7.13 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/20 Hp |
Output KW: |
0.04 kW |
| Frequency: |
60 Hz |
Voltage: |
115/200-230 V |
| Current: |
1.5,0.7-0.8 A |
Speed: |
1625/1350 rpm |
| Service Factor: |
1.5 |
Phase: |
1 |
| Efficiency: |
35.5 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
J |
Frame: |
48Z |
| Enclosure: |
Totally Enclosed Non Ventilated |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
65 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor(PSC) |
Starting Method: |
N/R |
| Poles: |
4 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Rigid Base |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
10.32 in |
| Frame Length: |
5.79 in |
Shaft Diameter: |
0.5 in |
| Shaft Extension: |
2.25 in |
Thru-bolts Extension: |
0 in |
