Description

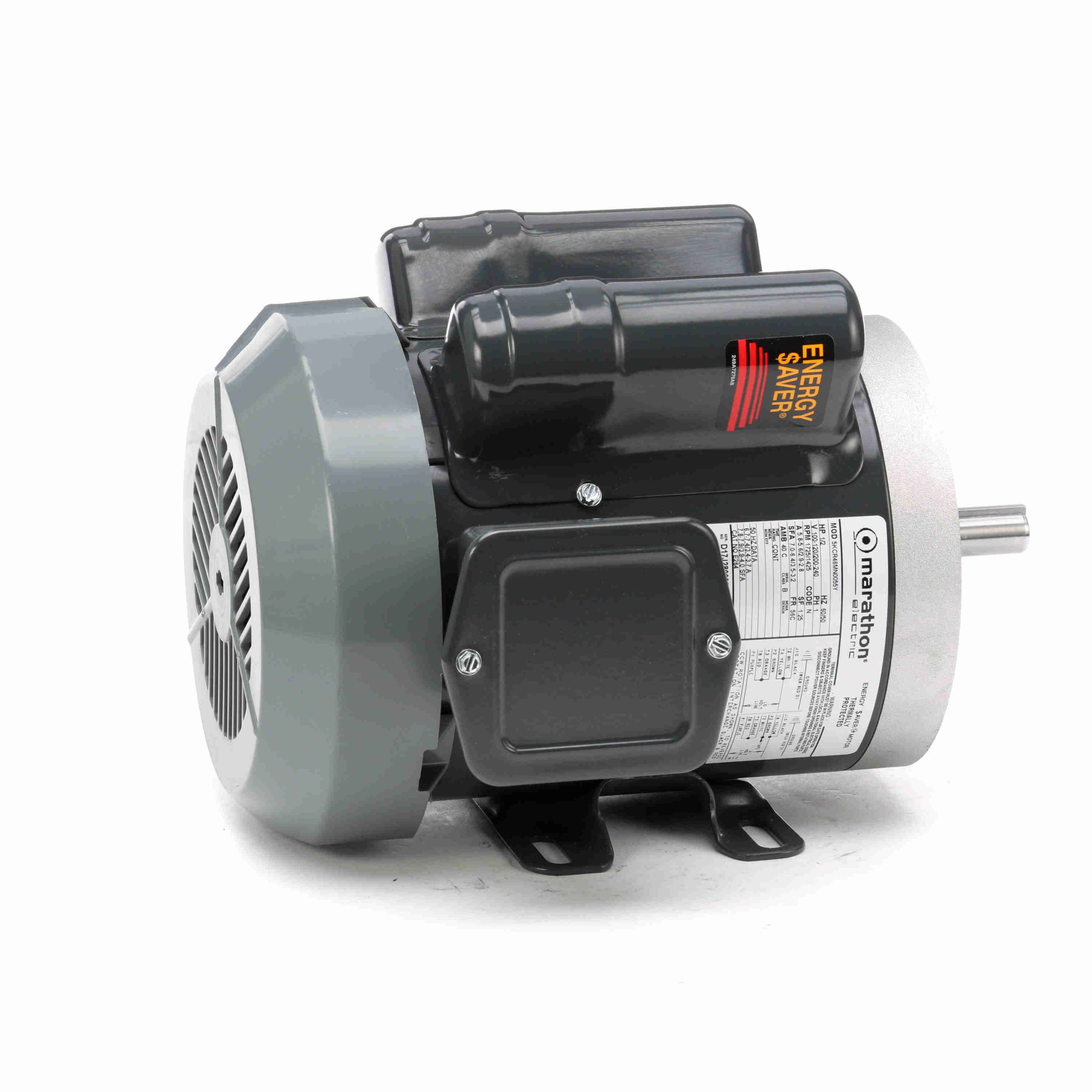

5KCR46MN0055Y – Marathon 1/2 HP General Purpose Motor, 1 phase, 1800 RPM, 100-120/200-240 V, 56C Frame, TEFC – E264
5KCR46MN0055Y Marathon Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856009326 |
Weight: |
29 LB |
| Packaged Length: |
15.14 IN |
Packaged Width: |
10.19 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
1/2 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
100-120/200-240 V |
| Current: |
5.8-5.6,2.9-2.8 A |
Speed: |
1725/1425 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
74 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
N |
Frame: |
56C |
| Enclosure: |
Totally Enclosed Fan Cooled |
Thermal Protection: |
MAN |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
SM |
| Poles: |
4 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Rigid Base |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
11.83 in |
| Frame Length: |
6.55 in |
Shaft Diameter: |
0.63 in |
| Shaft Extension: |
1.88 in |
