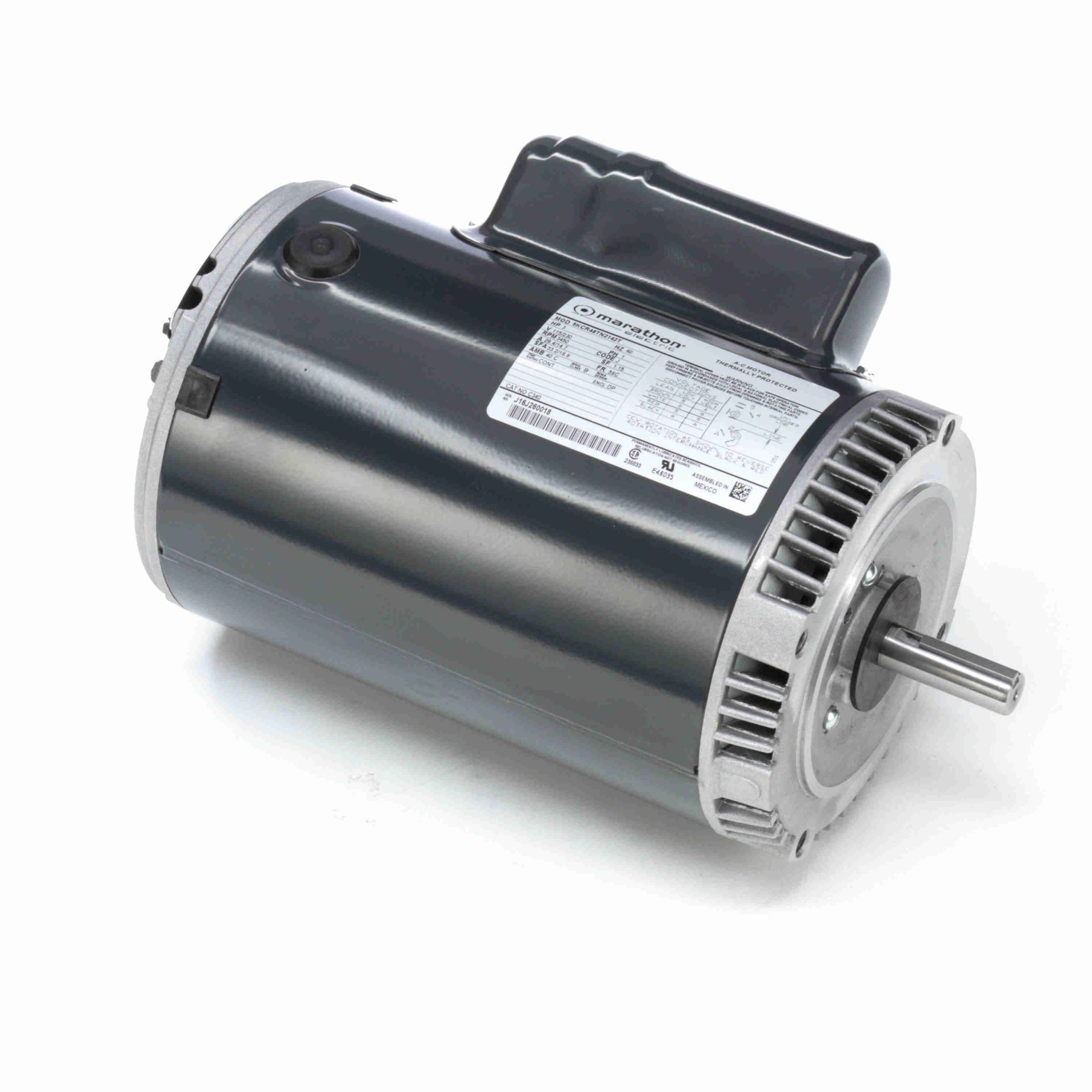

5KCR48TN2142T – Marathon 3 HP General Purpose Pump Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – C340
5KCR48TN2142T Marathon General Purpose Pump Single Phase Motors
General Specifications
| UPC: |
722856048868 |
Weight: |
38 LB |
| Packaged Length: |
15.14 IN |
Packaged Width: |
10.19 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
29.4,14.7 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
78.5 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
J |
Frame: |
56C |
| Enclosure: |
Drip Proof |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6205 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
SM |
| Poles: |
2 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Round |
Motor Orientation: |
ANY |
| Drive End Bearing: |
LOCKED |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
12.66 in |
| Frame Length: |
8.43 in |
Shaft Diameter: |
0.63 in |
| Shaft Extension: |
1.88 in |
