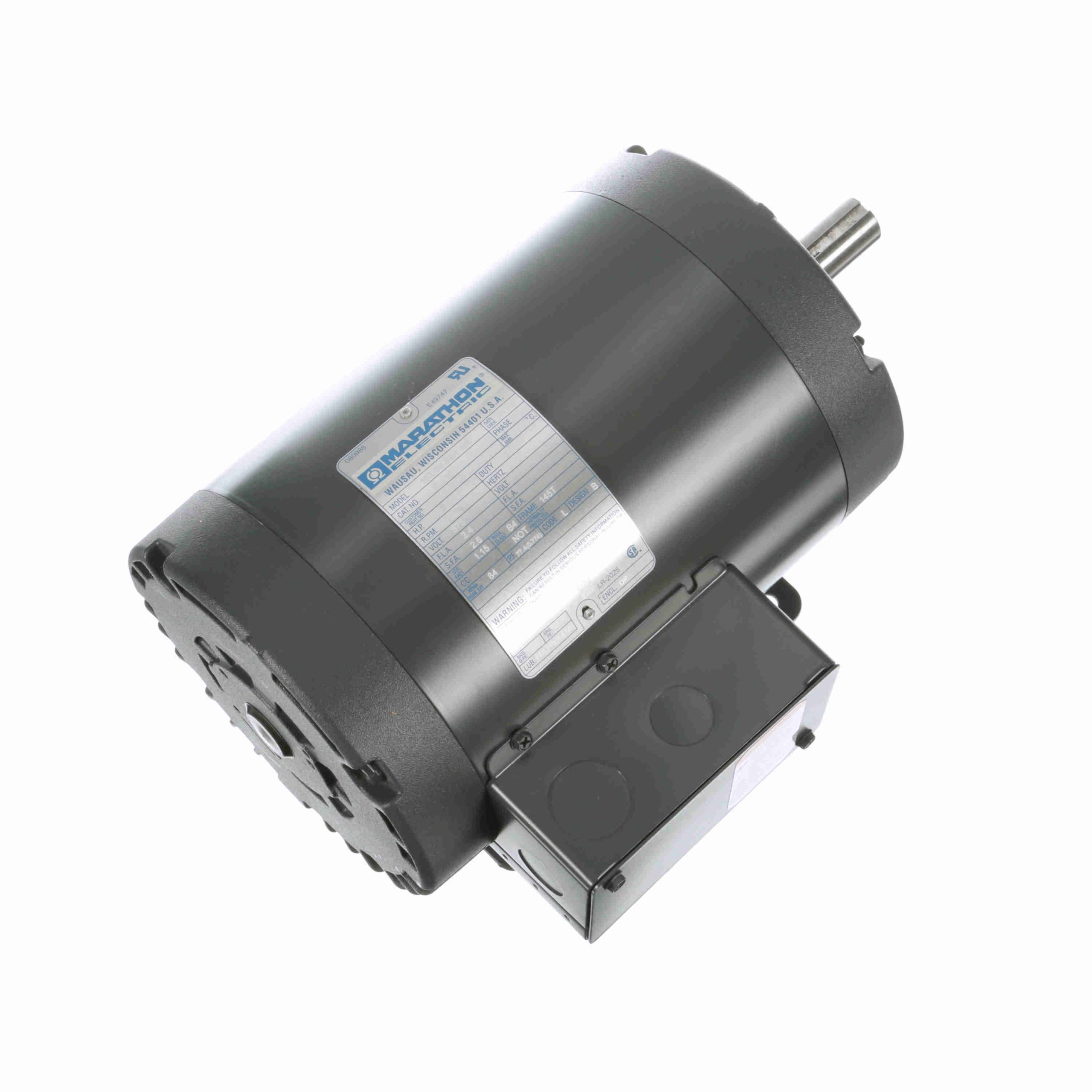

5KE49UN8416 – Marathon 2 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 145T Frame, ODP – K2010
5KE49UN8416 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
10.65 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.50 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
2.4 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
84 % |
Power Factor: |
77.4 |
| Duty: |
CONTINUOUS |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
145T |
Enclosure: |
DP |
| Thermal Protection: |
NOT |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
SQ CAGE IND RUN |
Starting Method: |
ACROSS THE LINE |
| Poles: |
4 |
Rotation: |
REV |
| Resistance Main: |
12.82 Ohms |
Mounting: |
RIGID |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
ROLLED STEEL |
| Shaft Type: |
T |
Overall Length: |
12.12 in |
| Frame Length: |
7 in |
Shaft Diameter: |
.88 in |
| Shaft Extension: |
2.38 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
|
19.40 |
323.0 |
0 |
|
|
2.00 |
| Full Load |
2.40 |
|
6.00 |
100.0 |
1,740 |
|
|
2.00 |
| Locked-Rotor |
18.40 |
|
19.90 |
332.0 |
0 |
|
|
2.00 |
| Break-Down |
0.00 |
|
24.00 |
410.0 |
1,200 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.28 |
1.35 |
1.60 |
1.92 |
2.35 |
2.72 |
3.30 |
| Rated Output (KW) |
0.12 |
0.50 |
0.91 |
1.33 |
1.77 |
2.25 |
2.76 |
| Efficiency (%) |
0.0 |
74.3 |
82.5 |
84.2 |
84.0 |
82.8 |
81.0 |
| Power Factor (%) |
9.2 |
37.2 |
57.6 |
69.8 |
77.4 |
82.2 |
85.5 |
| Speed (RPM) |
1,798 |
1,786 |
1,771 |
1,757 |
1,740 |
1,722 |
1,700 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
100.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
7.50 |
9.00 |
