Description

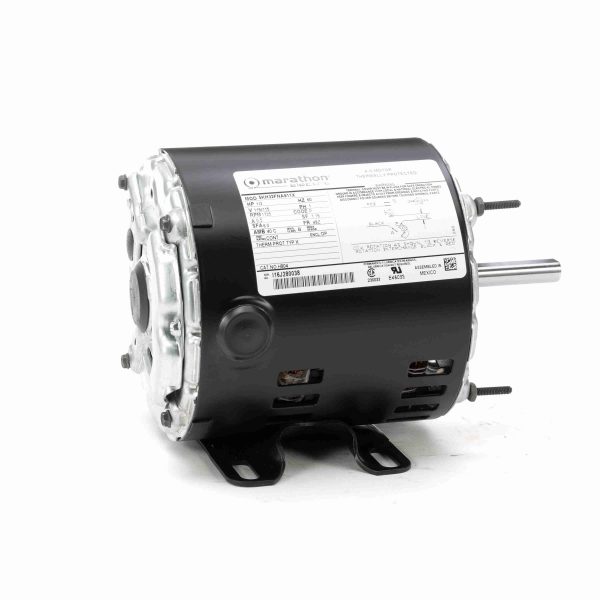

5KH32FNA611X – Marathon 1/3 HP General Purpose Motor, 1 phase, 1800 RPM, 115 V, 48Z Frame, ODP – H904
5KH32FNA611X Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856006769 |
Weight: |
12 LB |
| Packaged Length: |
12.63 IN |
Packaged Width: |
6.94 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
5.5 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
57.5 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
P |
Frame: |
48Z |
| Enclosure: |
Drip Proof |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
SM |
| Poles: |
4 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Rigid Base |
Motor Orientation: |
HOR |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
8.74 in |
| Frame Length: |
5.16 in |
Shaft Diameter: |
0.5 in |
| Shaft Extension: |
2.25 in |
Marathon Motors
Regal Beloit
