Description

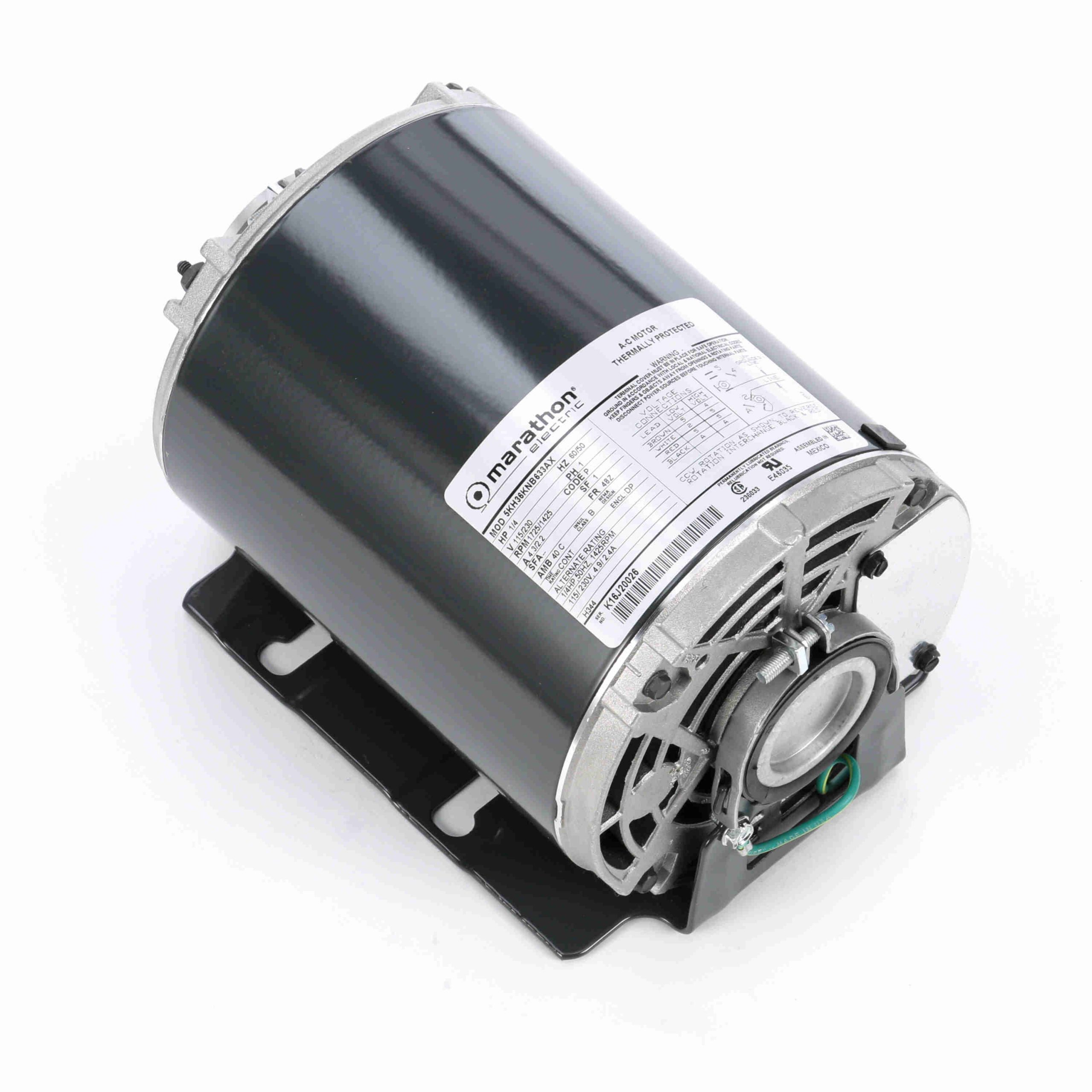

5KH36KNB633X – Marathon 1/4 HP Carbonator Pump Motor, 1 phase, 1800 RPM, 115/230 V, 48Z Frame, ODP – H344
5KH36KNB633X Marathon Carbonator Pump Motors
General Specifications
| UPC: |
722856031655 |
Weight: |
16 LB |
| Packaged Length: |
12.63 IN |
Packaged Width: |
6.94 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
4.3,2.2 A |
Speed: |
1725/1425 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
64.9 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
P |
Frame: |
48Z |
| Enclosure: |
Drip Proof |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
SM |
| Poles: |
4 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Resilient Base |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
8.75 in |
| Frame Length: |
6.22 in |
Shaft Diameter: |
0.63 in |
| Shaft Extension: |
0.17 in |
Marathon Motors
Regal Beloit
