Description

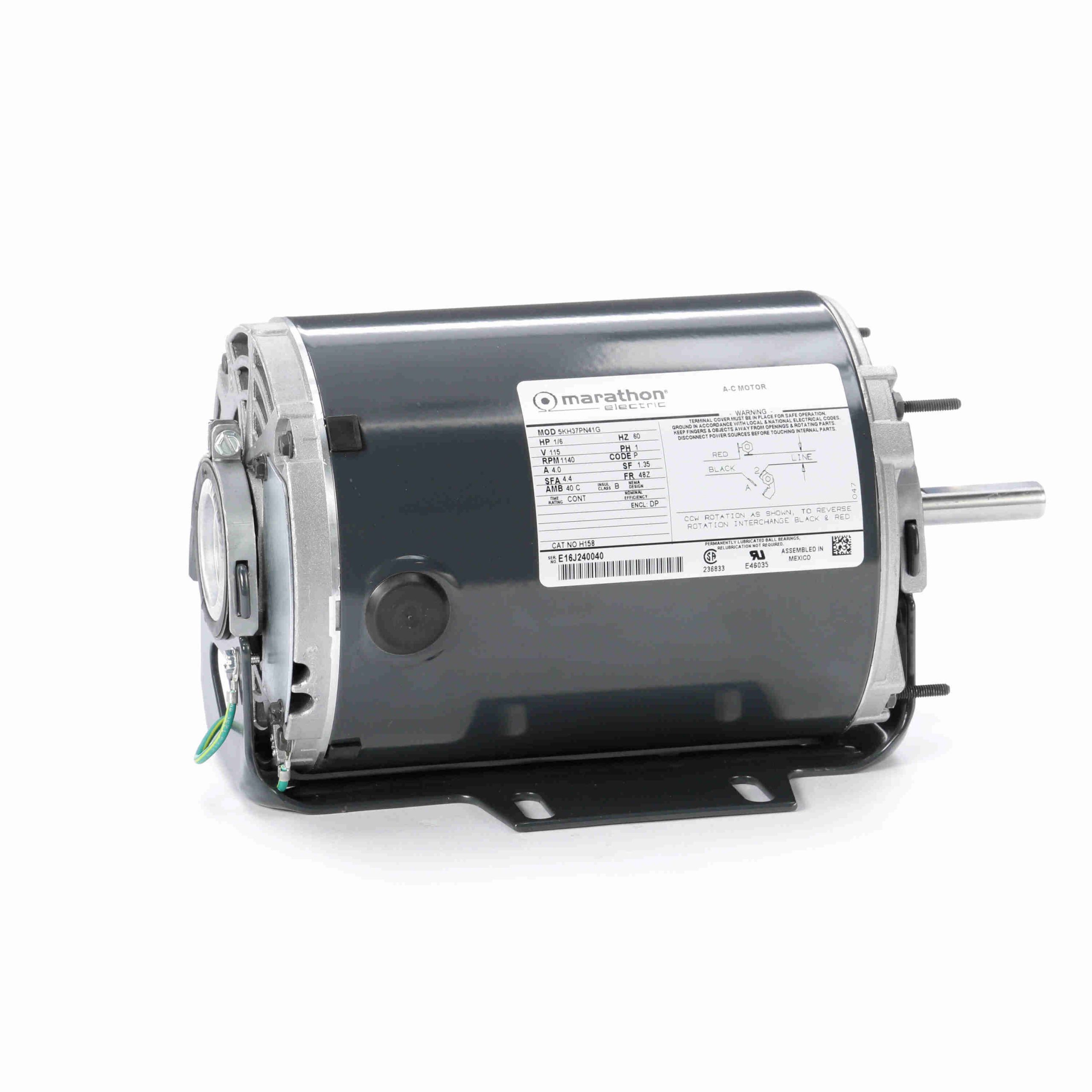

5KH37PN41 – Marathon 1/6 HP Fan and Blower HVAC/R Motor, 1 phase, 1200 RPM, 115 V, 48Z Frame, ODP – H158
5KH37PN41 Marathon Self Cooled Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856039439 |
Weight: |
21 LB |
| Packaged Length: |
12.63 IN |
Packaged Width: |
6.94 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/6 Hp |
Output KW: |
0.13 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
4 A |
Speed: |
1140 rpm |
| Service Factor: |
1.35 |
Phase: |
1 |
| Efficiency: |
0 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
P |
Frame: |
48Z |
| Enclosure: |
Drip Proof |
Thermal Protection: |
N/R |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
| IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
SM |
| Poles: |
6 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Resilient Base |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
10.8 in |
| Frame Length: |
6.62 in |
Shaft Diameter: |
0.5 in |
| Shaft Extension: |
1.88 in |
Thru-bolts Extension: |
0 in |
