Description

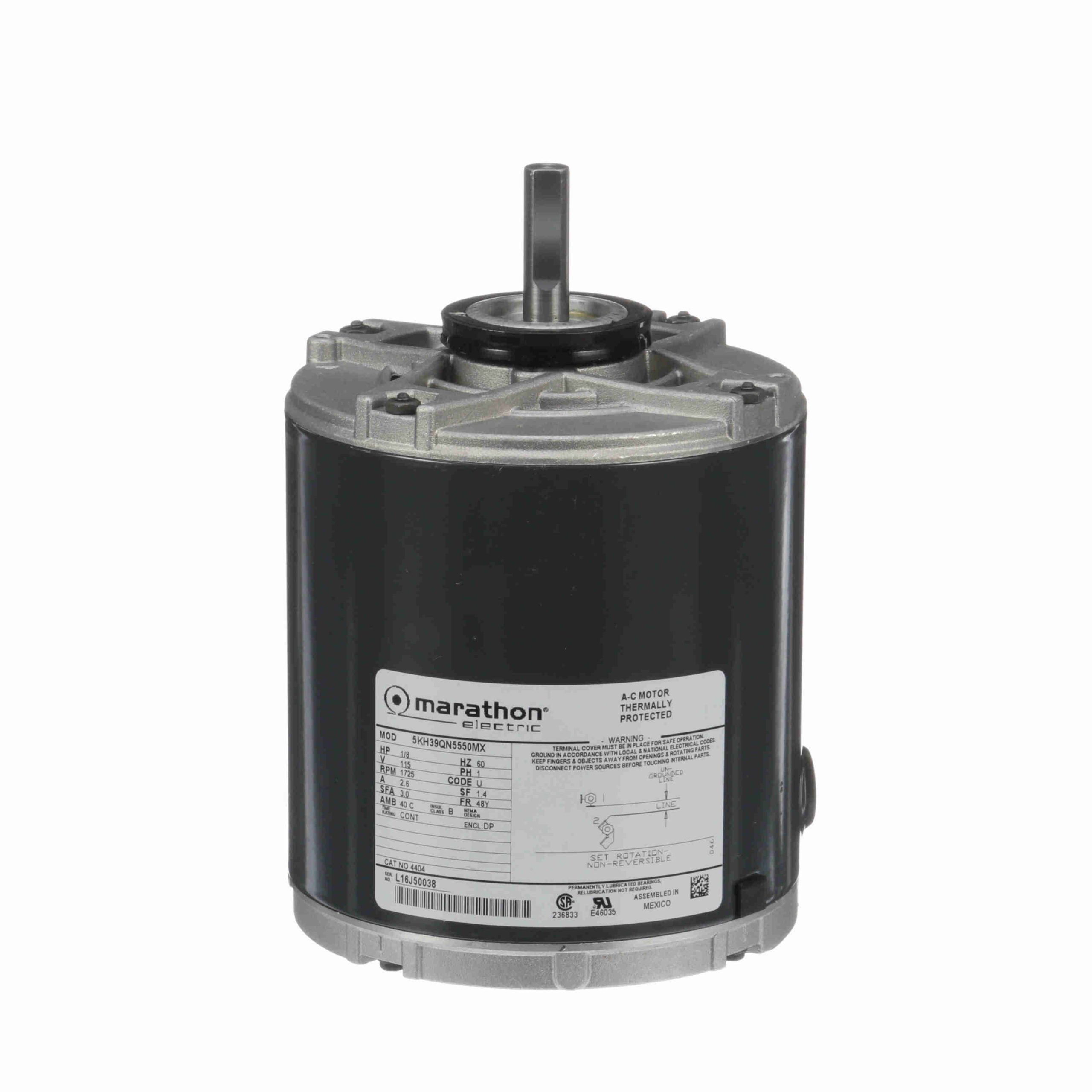

5KH39QN5550X – Marathon 1/8 HP Definite Purpose AC Motor, 1 phase, 1800 RPM, 115 V, 48Y Frame, ODP – 4404
5KH39QN5550X Marathon Other Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856049148 |
Weight: |
11 LB |
| Packaged Length: |
12.63 IN |
Packaged Width: |
6.94 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/8 Hp |
Output KW: |
0.10 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
2.6 A |
Speed: |
1725 rpm |
| Service Factor: |
1.4 |
Phase: |
1 |
| Efficiency: |
51.5 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
U |
Frame: |
48Y |
| Enclosure: |
Drip Proof |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
SM |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Resilient Rings |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
8.9 in |
| Frame Length: |
5.16 in |
Shaft Diameter: |
0.5 in |
| Shaft Extension: |
1.5 in |
