Description

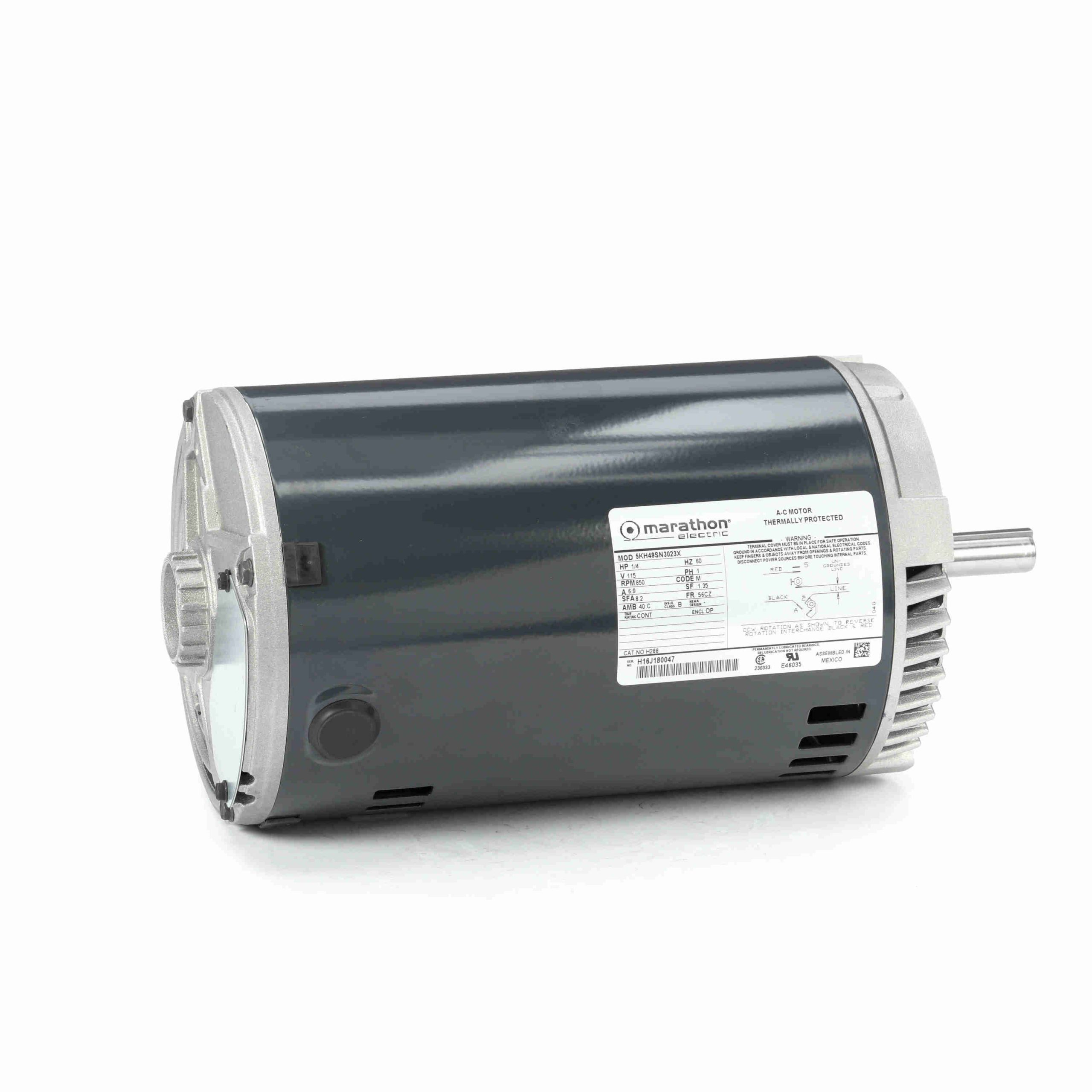

5KH49SN3023X – Marathon 1/4 HP Single Phase HVAC/R Motor, 1 phase, 900 RPM, 115 V, 56CZ Frame, ODP – H288
5KH49SN3023X Marathon HVAC/R Single Phase Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856041449 |
Weight: |
31 LB |
| Packaged Length: |
15.63 IN |
Packaged Width: |
9.88 IN |
| Packaged Height: |
7.5 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
6.9 A |
Speed: |
850 rpm |
| Service Factor: |
1.35 |
Phase: |
1 |
| Efficiency: |
43.3 % |
Power Factor: |
0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| KVA Code: |
M |
Frame: |
56CZ |
| Enclosure: |
Drip Proof |
Thermal Protection: |
AUTO |
| Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
| Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
| CSA: |
Yes |
CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
SM |
| Poles: |
8 |
Rotation: |
Counterclockwise/Clockwise |
| Mounting: |
Round |
Motor Orientation: |
ANY |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Overall Length: |
13.59 in |
| Frame Length: |
8.99 in |
Shaft Diameter: |
0.63 in |
| Shaft Extension: |
2.25 in |
Thru-bolts Extension: |
0 in |
