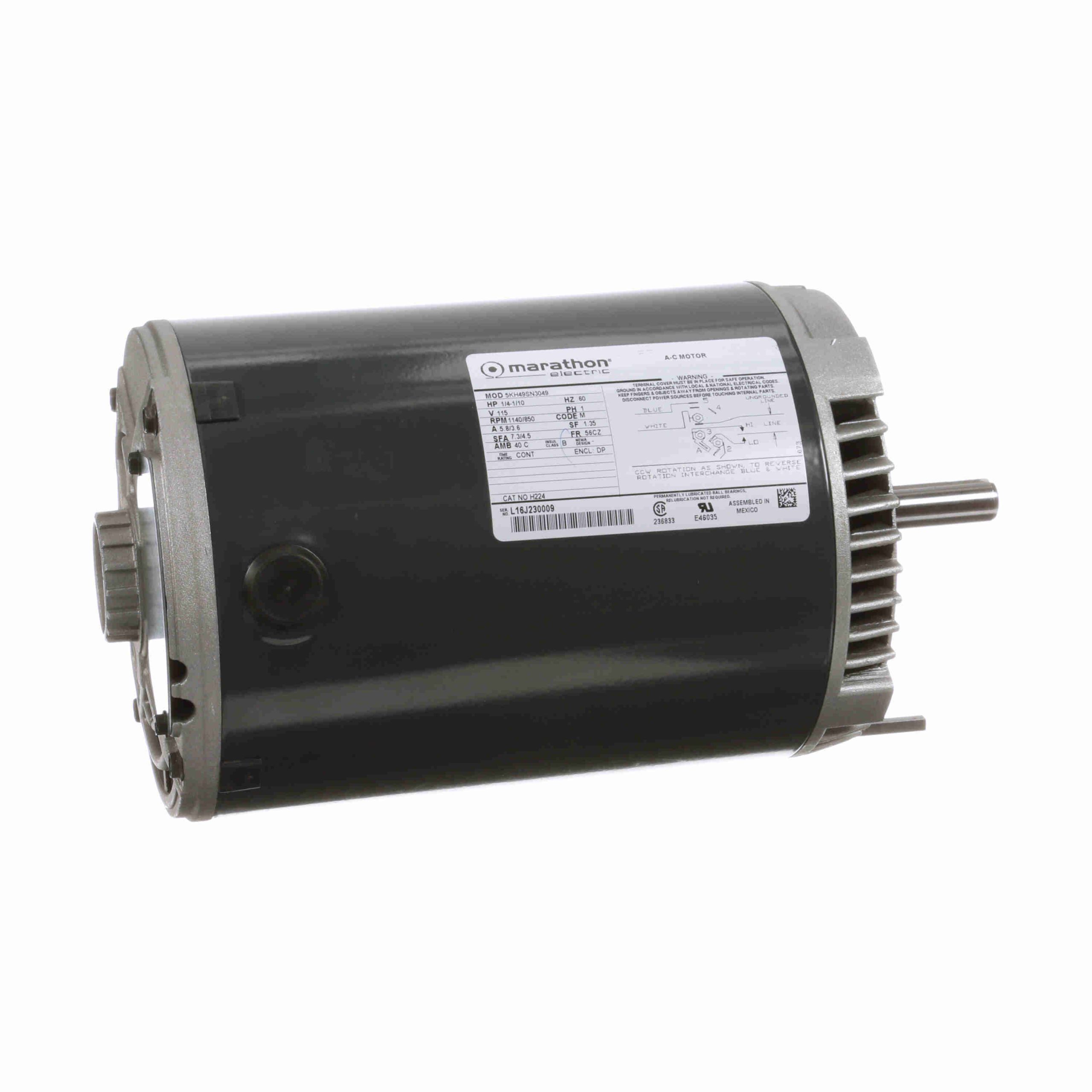

5KH49SN3049 – Marathon 1/4-1/10 HP 2 speed Single Phase HVAC/R Motor, 1 phase, 1200/1200 RPM, 115 V, 56CZ Frame, ODP – H224

5KH49SN3049 – Marathon 1/4-1/10 HP 2 speed Single Phase HVAC/R Motor, 1 phase, 1200/1200 RPM, 115 V, 56CZ Frame, ODP – H224

5KH49SN3049 Marathon HVAC/R Single Phase Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Split phase design
  • Ball bearings

Marathon Motors
Regal Beloit

Description

5KH49SN3049 – Marathon 1/4-1/10 HP 2 speed Single Phase HVAC/R Motor, 1 phase, 1200/1200 RPM, 115 V, 56CZ Frame, ODP – H224

5KH49SN3049 Marathon HVAC/R Single Phase Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856041371 Weight: 29 LB
Packaged Length: 15.63 IN Packaged Width: 9.88 IN
Packaged Height: 7.5 IN

Nameplate Specifications

Output HP: 1/4-1/10 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 5.8,3.6 A Speed: 1140/850 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 52.5 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: M Frame: 56CZ
Enclosure: Drip Proof Thermal Protection: N/R
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Split Phase Starting Method: SM
Poles: 6 Rotation: Counterclockwise/Clockwise
Mounting: Round Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 11.91 in
Frame Length: 7.68 in Shaft Diameter: 0.63 in
Shaft Extension: 2.25 in Thru-bolts Extension: 0 in
