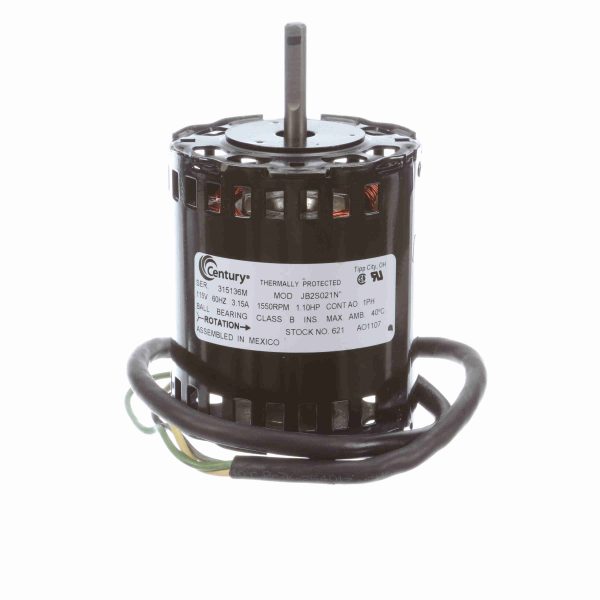

621 – Century 1/10 HP OEM Replacement Motor, 1550 RPM, 115 Volts, 3.3″ Diameter, OAO – 621

621 – Century 1/10 HP OEM Replacement Motor, 1550 RPM, 115 Volts, 3.3″ Diameter, OAO – 621

621 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • OEM Direct Replacement Motor
  • 3.3″ Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16″ Diameter Shaft with Flat
  • 25″ Leads
  • Extended Studs Shaft End and Opposite Shaft End

Century Motors
Regal Beloit

Description

621 – Century 1/10 HP OEM Replacement Motor, 1550 RPM, 115 Volts, 3.3″ Diameter, OAO – 621

621 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674007582 Weight: 5 LB
Packaged Length: 11 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/10 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.15 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Bracket Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.85 in
Shaft Diameter: 0.312 in Shaft Extension: 1 1/2 in
