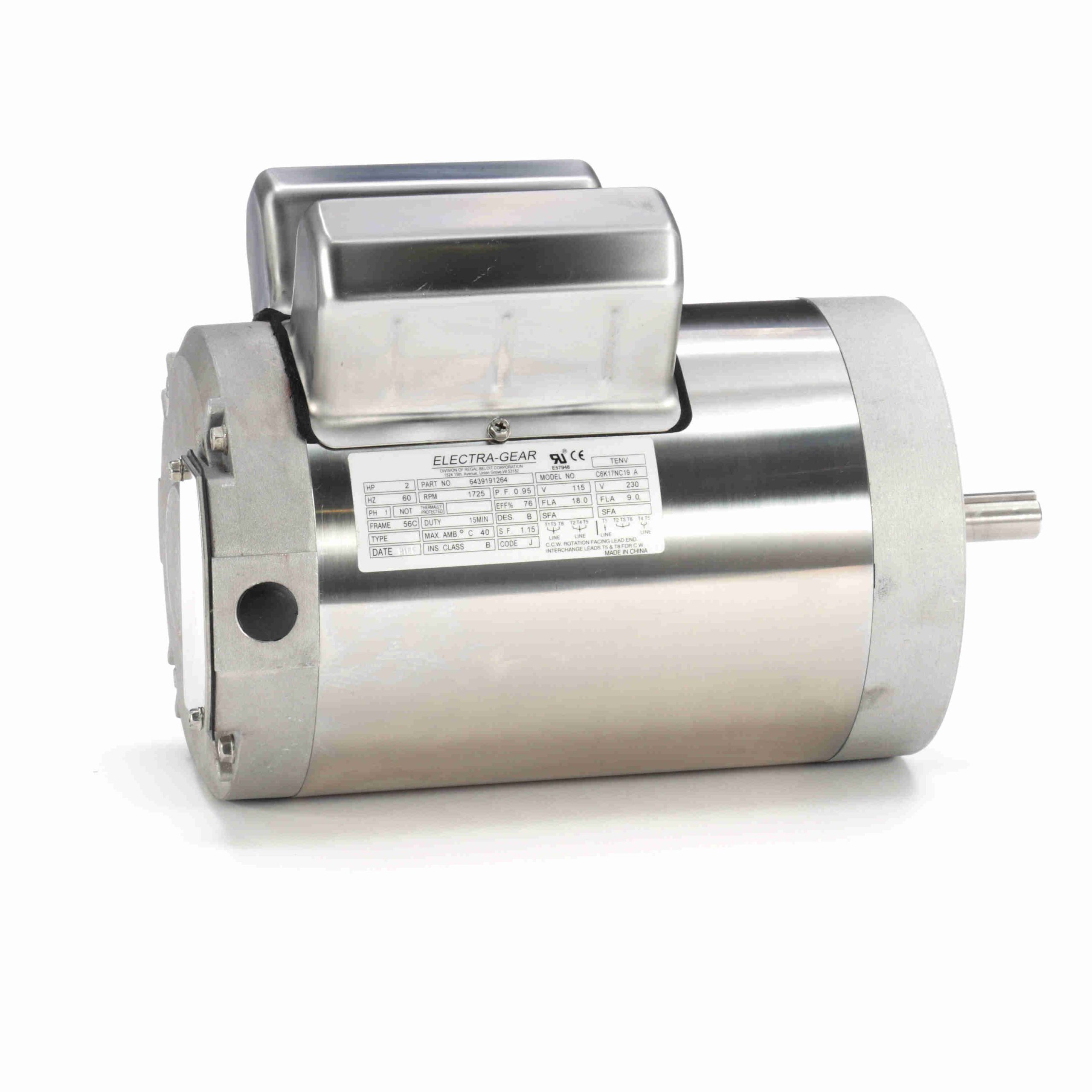

6439191264 – Leeson 2 HP Boat Hoist Duty Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, TENV – 6439191264
6439191264 Leeson Boat Hoist Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
UPC: |
691720000106 |
Weight: |
45 LB |
Packaged Length: |
15.16 IN |
Packaged Width: |
9.65 IN |
Packaged Height: |
10 IN |
Nameplate Specifications
Output HP: |
2 Hp |
Output KW: |
1.5 kW |
Frequency: |
60 Hz |
Voltage: |
115/230 V |
Current: |
18.0/9.0 A |
Speed: |
1725 rpm |
Service Factor: |
1.15 |
Phase: |
1 |
Efficiency: |
76 % |
Power Factor: |
95 |
Duty: |
15 Minute |
Insulation Class: |
B |
Design Code: |
N |
KVA Code: |
J |
Frame: |
56C |
Enclosure: |
Totally Enclosed Non Ventilated |
Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
UL: |
Recognized |
CSA: |
Y |
CE: |
Y |
IP Code: |
43 |
Technical Specifications
Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
Poles: |
4 |
Rotation: |
Selective Counterclockwise |
Resistance Main: |
0 Ohms |
Mounting: |
Round |
Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
Shaft Type: |
NEMA 56 |
Overall Length: |
13.40 in |
Frame Length: |
7.68 in |
Shaft Diameter: |
0.625 in |
Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
Pull-Up |
0.00 |
0.0 |
180.50 |
188.0 |
1,343 |
0.00 |
0.0 |
2.00 |
Full Load |
8.77 |
100.0 |
95.80 |
100.0 |
1,754 |
1.77 |
0.0 |
2.00 |
Break-Down |
0.00 |
0.0 |
270.20 |
282.0 |
1,521 |
0.00 |
0.0 |
2.00 |
Locked-Rotor |
69.30 |
790.0 |
220.60 |
230.0 |
0 |
11.60 |
0.0 |
2.00 |
Load Characteristics
% of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
Current (Amps) |
3.98 |
4.46 |
5.58 |
7.05 |
8.77 |
9.91 |
10.71 |
12.86 |
Rated Output (KW) |
0.22 |
0.57 |
0.95 |
1.34 |
1.77 |
2.03 |
2.21 |
2.69 |
Efficiency (%) |
7.2 |
65.4 |
78.8 |
83.2 |
84.5 |
84.5 |
84.4 |
83.2 |
Power Factor (%) |
24.3 |
55.6 |
73.9 |
82.9 |
87.5 |
89.1 |
89.7 |
90.9 |
Speed (RPM) |
1,799 |
1,788 |
1,778 |
1,767 |
1,754 |
1,746 |
1,740 |
1,726 |
Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
Torque (ft-lbs) |
1.00 |
23.50 |
47.30 |
71.30 |
95.80 |
110.70 |
120.70 |
146.10 |
