Description

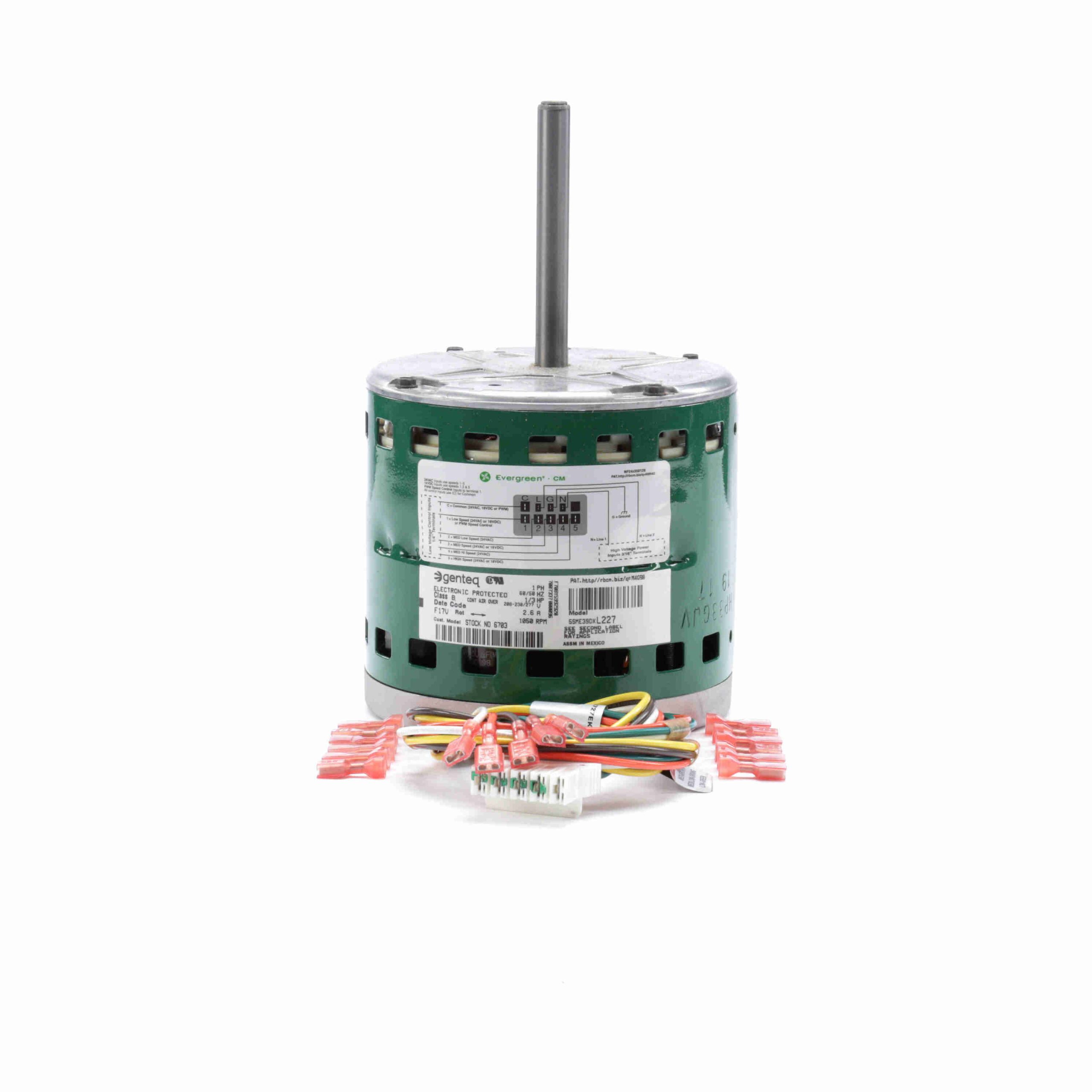

6703 – Genteq 1/3 HP Fan & Blower Motor, 1075 RPM, 5 Speed/PWM, 208-230/277 Volts, 48 Frame, Semi Enclosed – 6703
6703 Genteq Direct Drive Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585023852 |
Weight: |
11 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
8 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Frequency: |
60 Hz |
| Voltage: |
208-230/277 V |
Current: |
2.8/2.6 A |
| Speed: |
1075 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous Air Over |
| Insulation Class: |
B |
Frame: |
48 |
| Enclosure: |
Open Air Over |
Thermal Protection: |
No |
| Ambient Temperature: |
40 °C |
UL: |
Recognized |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
Electronically Commutated Motor |
Poles: |
12 |
| Rotation: |
Reversible |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Flat |
Overall Length: |
9.17 in |
| Frame Length: |
4.32 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
3.92 in |
