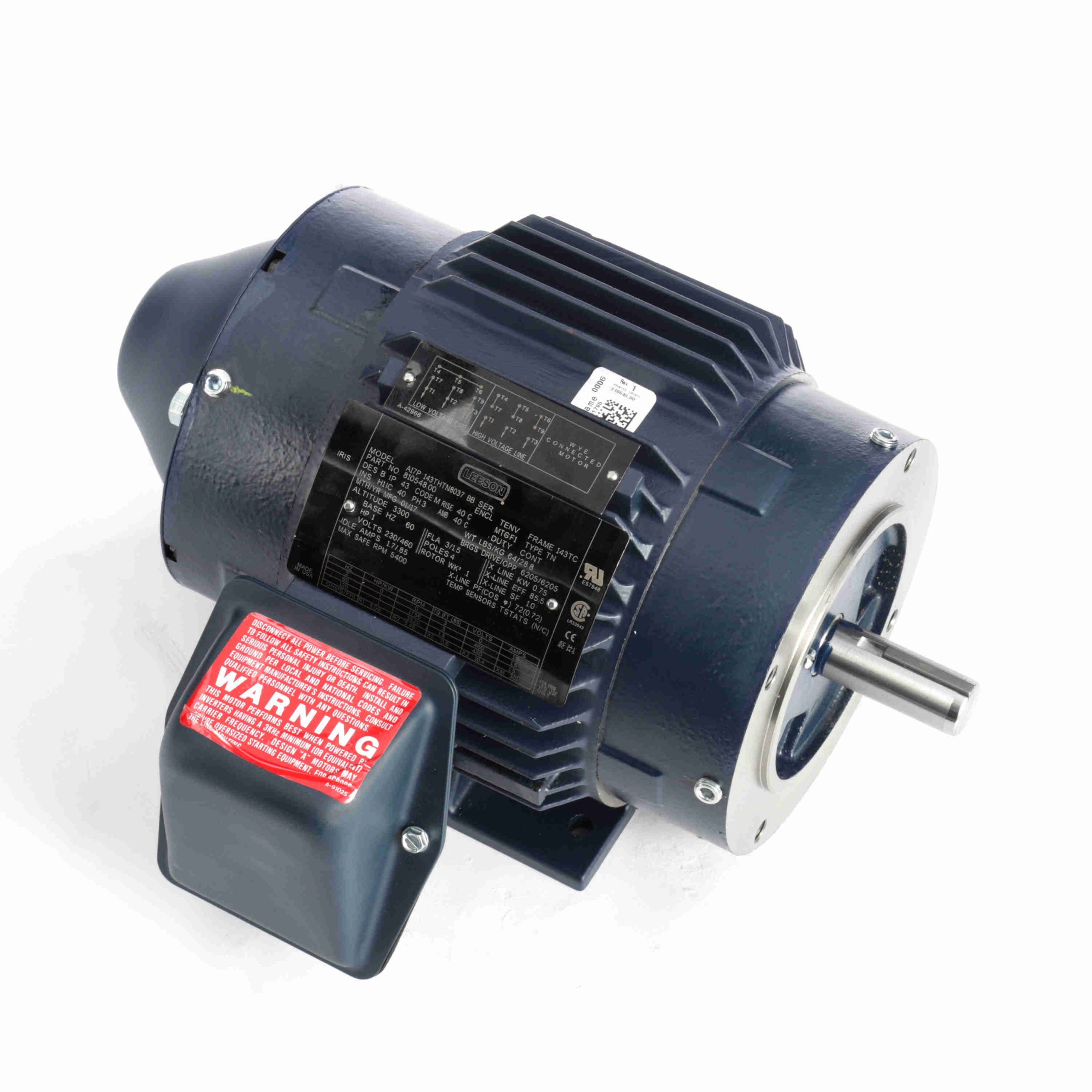

| UPC: | 691720211342 | Weight: | 64 LB |
| Packaged Length: | 15.82 IN | Packaged Width: | 12.56 IN |
| Packaged Height: | 9.38 IN |
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 3.0/1.5 A | Speed: | 1756 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 85.5 % | Power Factor: | 72 |
| Duty: | Continuous | Insulation Class: | H |
| Design Code: | B | KVA Code: | M |
| Frame: | 143TC | Enclosure: | Totally Enclosed Non Ventilated |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 13.8 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T Both Sides | Overall Length: | 13.68 in |
| Frame Length: | 5.25 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.25 in | Assembly/Box Mounting: | F1 ONLY |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 13.50 | 900.0 | 10.80 | 360.0 | 0 | 67.0 | 1.00 | |
| Full Load | 1.50 | 100.0 | 3.00 | 100.0 | 1,756 | 1.00 | ||
| 2/3 | 12.00 | 800.0 | 12.00 | 400.0 | 800 | 1.00 | ||
| Pull-Up | 12.50 | 833.0 | 11.00 | 367.0 | 600 | 1.00 | ||
| 1/3 | 13.00 | 867.0 | 10.50 | 350.0 | 150 | 1.00 | ||
| Break-Down | 9.00 | 600.0 | 14.00 | 467.0 | 1,300 | 81.5 | 1.00 | |
| No Load | 0.85 | 57.0 | 0.00 | 0.0 | 1,800 | 1.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % | 200 % |
| Current (Amps) | 0.85 | 0.90 | 1.00 | 1.20 | 1.50 | 1.70 | 2.10 | 2.50 |
| Rated Output (KW) | 0.09 | 0.25 | 0.45 | 0.65 | 0.85 | 1.10 | 1.30 | 1.70 |
| Efficiency (%) | 0.0 | 79.0 | 85.5 | 86.5 | 85.5 | 85.5 | 84.0 | 81.5 |
| Power Factor (%) | 9.5 | 33.5 | 53.5 | 67.0 | 72.0 | 80.0 | 83.5 | 83.5 |
| Speed (RPM) | 1,800 | 1,790 | 1,780 | 1,768 | 1,756 | 1,745 | 1,730 | 1,700 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 40.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.75 | 1.50 | 2.20 | 3.00 | 3.80 | 4.60 | 6.00 |
