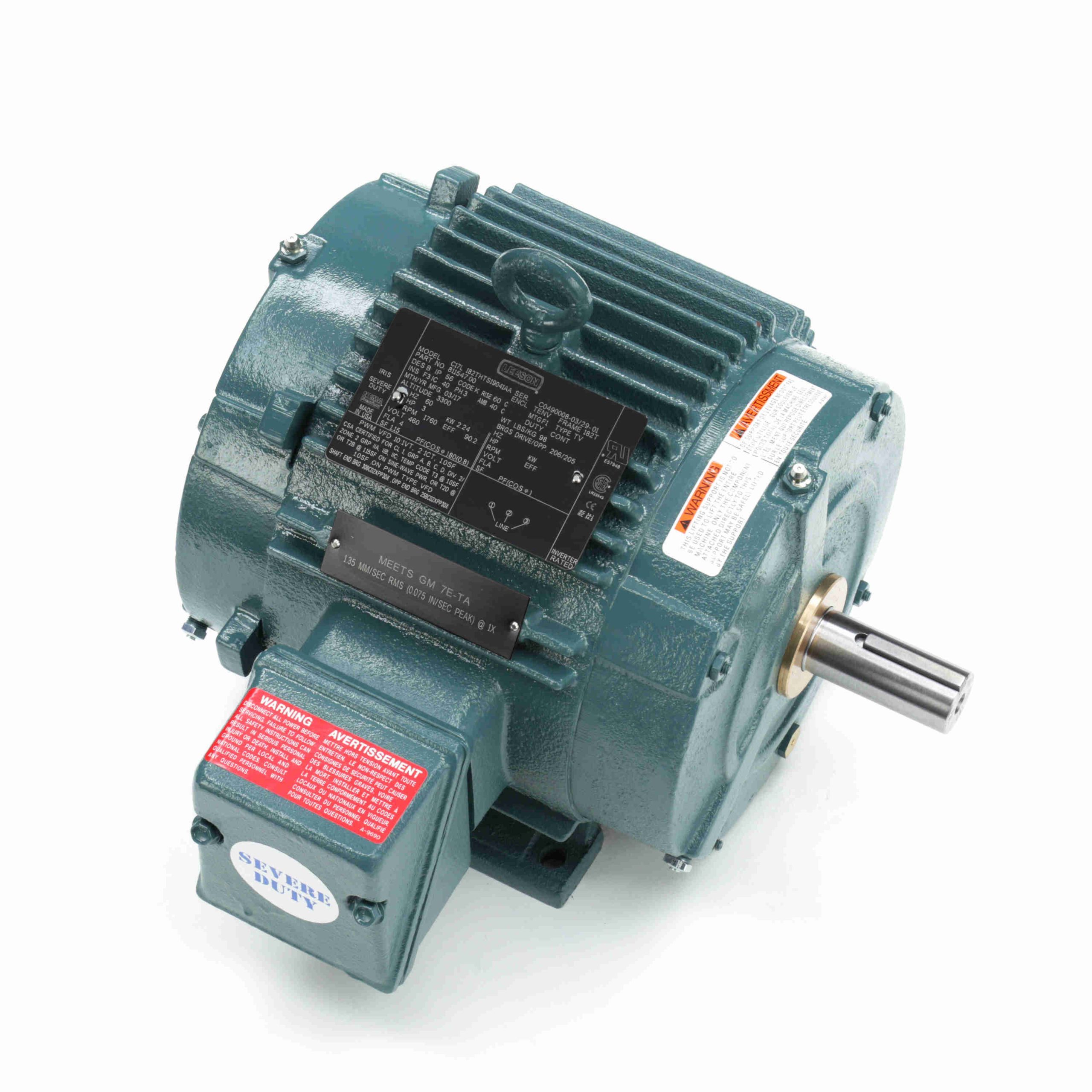

| UPC: | 691720363102 | Weight: | 100 LB |
| Packaged Length: | 22.5 IN | Packaged Width: | 16.81 IN |
| Packaged Height: | 14 IN |
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 460 V |
| Current: | 4.0 A | Speed: | 1760 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 90.2 % | Power Factor: | 80 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Frame: | 182T | Enclosure: | Totally Enclosed Non Ventilated |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 206 | Opp Drive End Bearing Size: | 205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 56 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 3.76 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 12.71 in |
| Frame Length: | 5.75 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 4.00 | 100.0 | 9.00 | 100.0 | 1,760 | 0.00 | 0.0 | 3.00 |
| 1/3 | 31.00 | 775.0 | 19.00 | 211.0 | 500 | 0.00 | 0.0 | 3.00 |
| Break-Down | 23.00 | 575.0 | 35.00 | 389.0 | 1,500 | 0.00 | 74.0 | 3.00 |
| Pull-Up | 30.00 | 750.0 | 20.00 | 222.0 | 750 | 0.00 | 0.0 | 3.00 |
| No Load | 1.90 | 48.0 | 0.00 | 0.0 | 1,800 | 0.00 | 0.0 | 3.00 |
| Locked-Rotor | 32.00 | 800.0 | 22.50 | 250.0 | 0 | 0.00 | 47.0 | 3.00 |
| 2/3 | 28.00 | 700.0 | 24.00 | 267.0 | 1,000 | 0.00 | 0.0 | 3.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 1.90 | 2.10 | 2.50 | 3.20 | 4.00 | 4.40 | 4.60 |
| Rated Output (KW) | 0.12 | 0.70 | 1.30 | 1.90 | 2.50 | 2.90 | 3.20 |
| Efficiency (%) | 0.0 | 82.5 | 88.5 | 89.5 | 90.2 | 89.5 | 88.5 |
| Power Factor (%) | 6.5 | 42.0 | 63.0 | 75.0 | 80.0 | 83.0 | 84.0 |
| Speed (RPM) | 1,800 | 1,790 | 1,780 | 1,770 | 1,760 | 1,755 | 1,750 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 60.0 | 80.0 | 100.0 |
| Torque (ft-lbs) | 0.00 | 2.20 | 4.40 | 6.70 | 9.00 | 10.40 | 11.20 |
