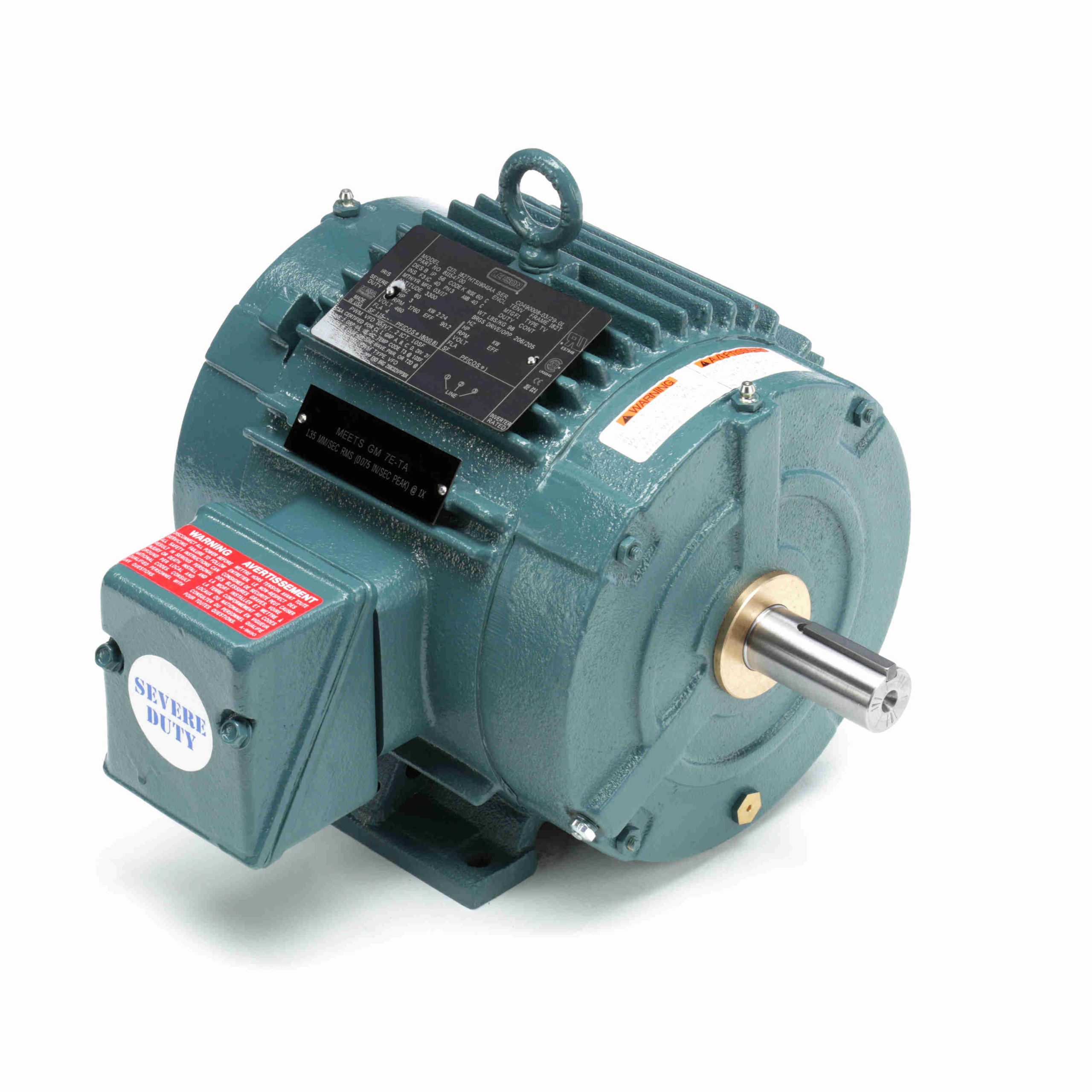

| UPC: | 691720247020 | Weight: | 142 LB |
| Packaged Length: | 22.5 IN | Packaged Width: | 16.81 IN |
| Packaged Height: | 14 IN |
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60 Hz | Voltage: | 460 V |
| Current: | 5.9 A | Speed: | 3505 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 89.5 % | Power Factor: | 89 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | J |
| Frame: | 184T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 206 | Opp Drive End Bearing Size: | 205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 56 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 2.32 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 16.19 in |
| Frame Length: | 6.75 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 37.00 | 627.0 | 10.50 | 140.0 | 1,800 | 5.00 | ||
| Full Load | 5.90 | 100.0 | 7.50 | 100.0 | 3,505 | 5.00 | ||
| 2/3 | 34.00 | 576.0 | 12.00 | 160.0 | 2,400 | 5.00 | ||
| Locked-Rotor | 40.50 | 686.0 | 12.00 | 160.0 | 0 | 41.0 | 5.00 | |
| 1/3 | 39.00 | 661.0 | 10.00 | 133.0 | 1,200 | 5.00 | ||
| Break-Down | 25.50 | 432.0 | 22.00 | 293.0 | 3,000 | 76.0 | 5.00 | |
| No Load | 2.00 | 34.0 | 0.00 | 0.0 | 3,600 | 5.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.00 | 2.40 | 3.40 | 4.50 | 5.90 | 6.70 | 7.40 |
| Rated Output (KW) | 0.20 | 1.13 | 2.11 | 3.14 | 4.21 | 4.81 | 5.34 |
| Efficiency (%) | 0.0 | 83.1 | 88.4 | 89.0 | 88.5 | 88.0 | 87.5 |
| Power Factor (%) | 11.5 | 58.6 | 77.5 | 85.5 | 88.5 | 89.2 | 89.8 |
| Speed (RPM) | 3,600 | 3,580 | 3,560 | 3,535 | 3,505 | 3,490 | 3,480 |
| Temp. Rise @ FL | 0.0 | 25.0 | 20.0 | 0.0 | 50.0 | 70.0 | 85.0 |
| Torque (ft-lbs) | 0.00 | 1.80 | 3.70 | 5.50 | 7.50 | 8.60 | 9.40 |
