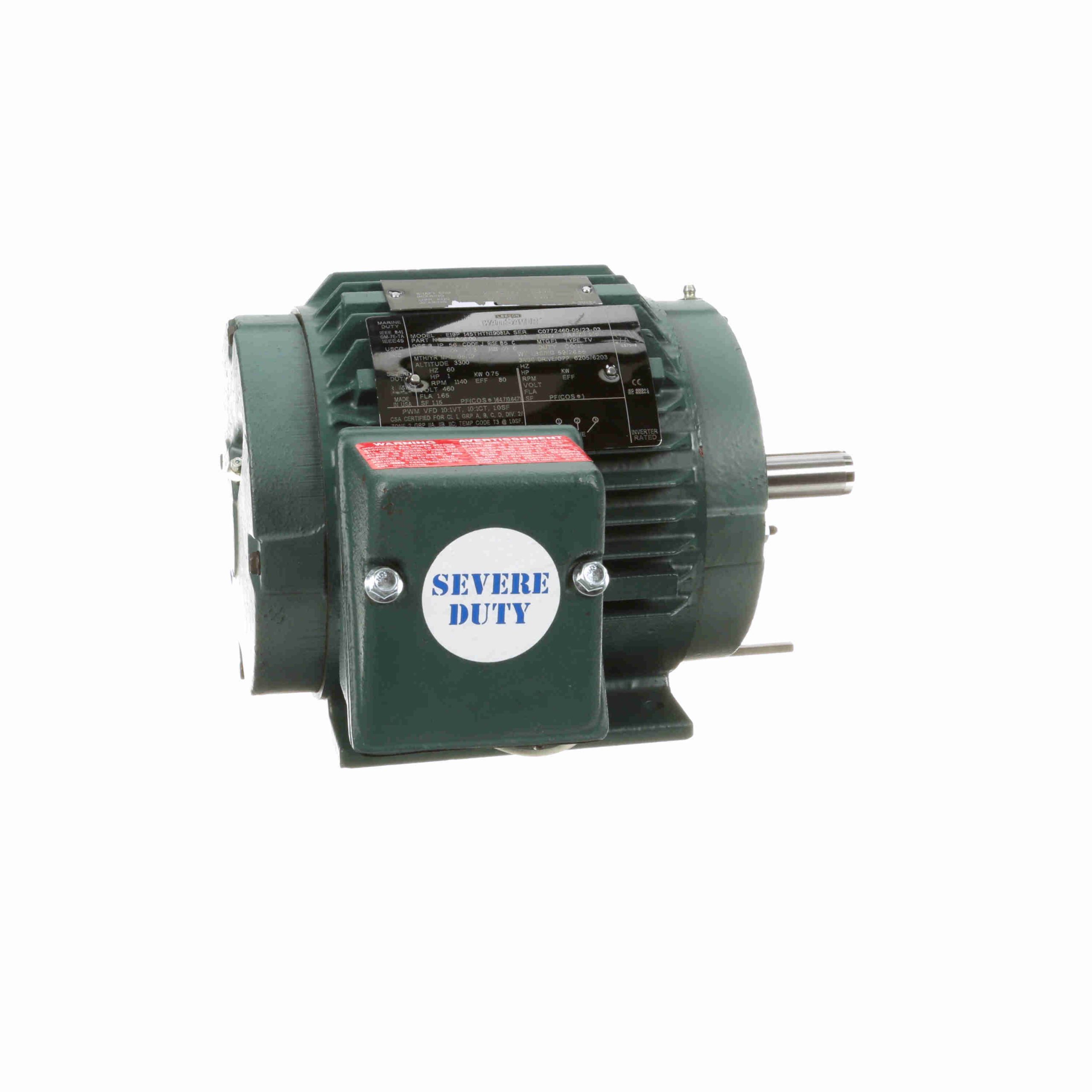

811646.00 – Leeson 1 HP Severe Duty Motor, 3 phase, 1200 RPM, 460 V, 145T Frame, TENV – 811646.00
811646.00 Leeson IEEE 841 Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720991930 |
Weight: |
59 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
12.25 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
1.7 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
80 % |
Power Factor: |
64.7 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
145T |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
56 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
20.05 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
11.43 in |
| Frame Length: |
6.25 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
8.60 |
521.0 |
9.20 |
200.0 |
400 |
|
|
1.00 |
| Break-Down |
7.00 |
424.0 |
14.30 |
311.0 |
1,050 |
|
75.5 |
1.00 |
| Pull-Up |
8.10 |
491.0 |
9.70 |
211.0 |
600 |
|
|
1.00 |
| 2/3 |
7.60 |
461.0 |
11.30 |
246.0 |
800 |
|
|
1.00 |
| No Load |
1.20 |
73.0 |
0.00 |
0.0 |
1,200 |
|
|
1.00 |
| Full Load |
1.70 |
103.0 |
4.60 |
100.0 |
1,140 |
|
|
1.00 |
| Locked-Rotor |
9.00 |
545.0 |
10.80 |
235.0 |
0 |
|
63.5 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
| Current (Amps) |
1.20 |
1.30 |
1.40 |
1.55 |
1.65 |
1.90 |
2.00 |
0.00 |
0.00 |
| Rated Output (KW) |
0.08 |
0.28 |
0.48 |
0.69 |
0.92 |
1.10 |
1.20 |
0.00 |
0.00 |
| Efficiency (%) |
0.0 |
67.0 |
77.0 |
80.5 |
80.0 |
77.0 |
76.5 |
0.0 |
0.0 |
| Power Factor (%) |
8.0 |
27.5 |
43.5 |
55.5 |
64.7 |
71.0 |
72.0 |
0.0 |
0.0 |
| Speed (RPM) |
1,200 |
1,190 |
1,177 |
1,165 |
1,140 |
1,120 |
1,110 |
0 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
85.0 |
105.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.10 |
2.20 |
3.40 |
4.60 |
5.40 |
5.80 |
0.00 |
0.00 |
