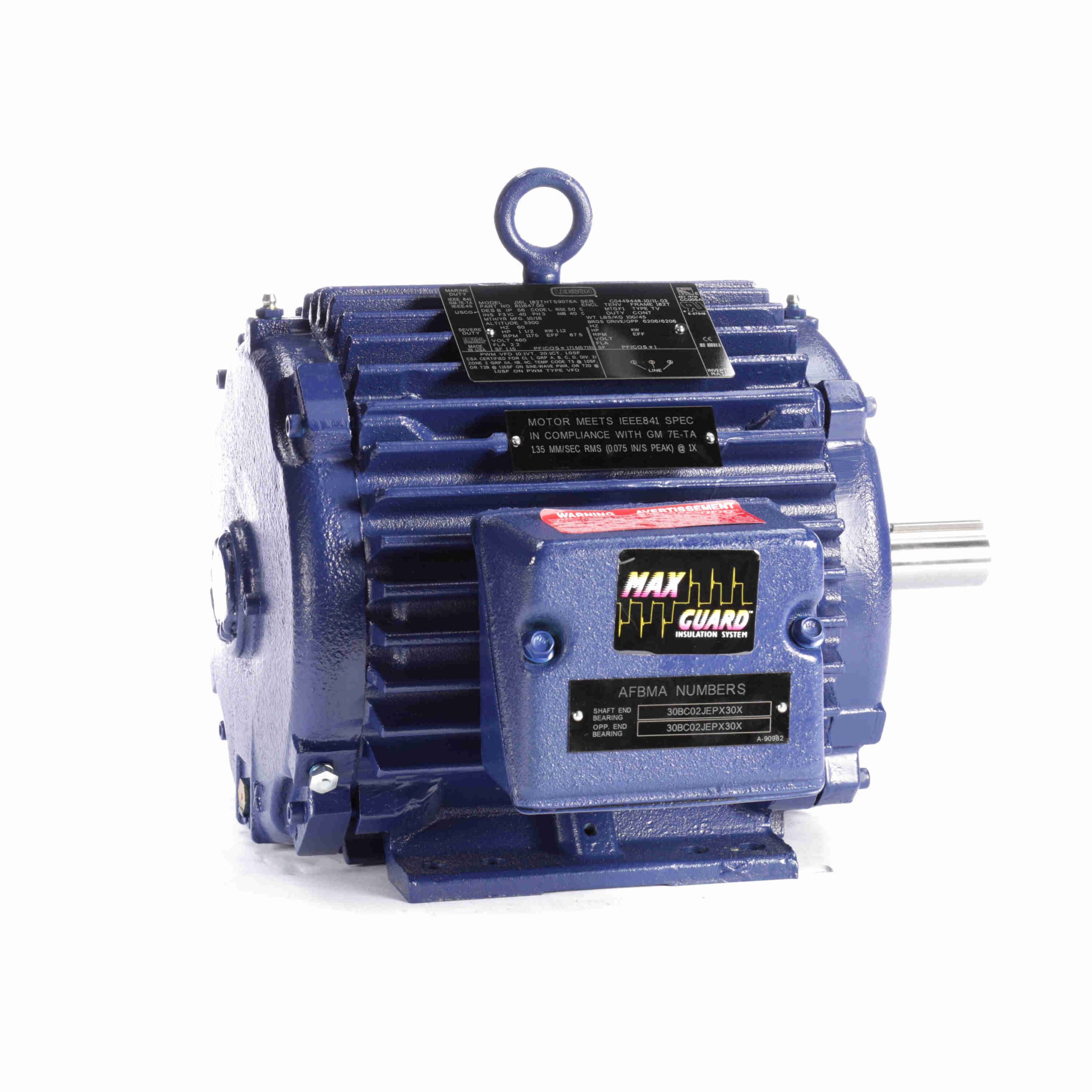

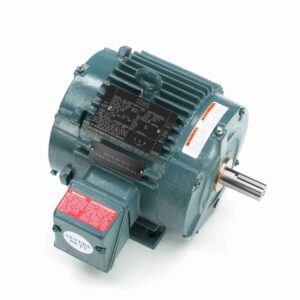

811647.00 – Leeson 1.50 HP Severe Duty Motor, 3 phase, 1200 RPM, 460 V, 182T Frame, TENV – 811647.00
811647.00 Leeson IEEE 841 Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720991947 |
Weight: |
100 LB |
| Packaged Length: |
22.19 IN |
Packaged Width: |
16.5 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
2.2 A |
Speed: |
1175 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
87.5 % |
Power Factor: |
71.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
182T |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
56 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
7.75 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
13.94 in |
| Frame Length: |
8.00 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
14.40 |
655.0 |
14.50 |
213.0 |
900 |
|
|
1.50 |
| 1/3 |
16.00 |
727.0 |
11.50 |
169.0 |
300 |
|
|
1.50 |
| Pull-Up |
15.00 |
682.0 |
11.80 |
174.0 |
600 |
|
|
1.50 |
| Locked-Rotor |
17.00 |
773.0 |
13.40 |
197.0 |
0 |
|
45.0 |
1.50 |
| Break-Down |
8.20 |
373.0 |
24.40 |
359.0 |
1,050 |
|
|
1.50 |
| Full Load |
2.20 |
100.0 |
6.80 |
100.0 |
1,175 |
|
|
1.50 |
| No Load |
1.30 |
59.0 |
0.00 |
0.0 |
1,200 |
|
|
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.30 |
1.40 |
1.60 |
1.90 |
2.20 |
2.40 |
2.60 |
| Rated Output (KW) |
0.08 |
0.35 |
0.65 |
1.00 |
1.30 |
1.50 |
1.60 |
| Efficiency (%) |
0.0 |
80.0 |
86.5 |
87.5 |
87.5 |
87.5 |
86.5 |
| Power Factor (%) |
6.0 |
32.5 |
52.0 |
64.0 |
71.5 |
74.5 |
76.5 |
| Speed (RPM) |
1,200 |
1,195 |
1,188 |
1,182 |
1,175 |
1,172 |
1,168 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
65.0 |
80.0 |
| Torque (ft-lbs) |
0.00 |
1.70 |
3.40 |
5.20 |
6.80 |
7.80 |
8.50 |
Leeson Motors
Regal Beloit
