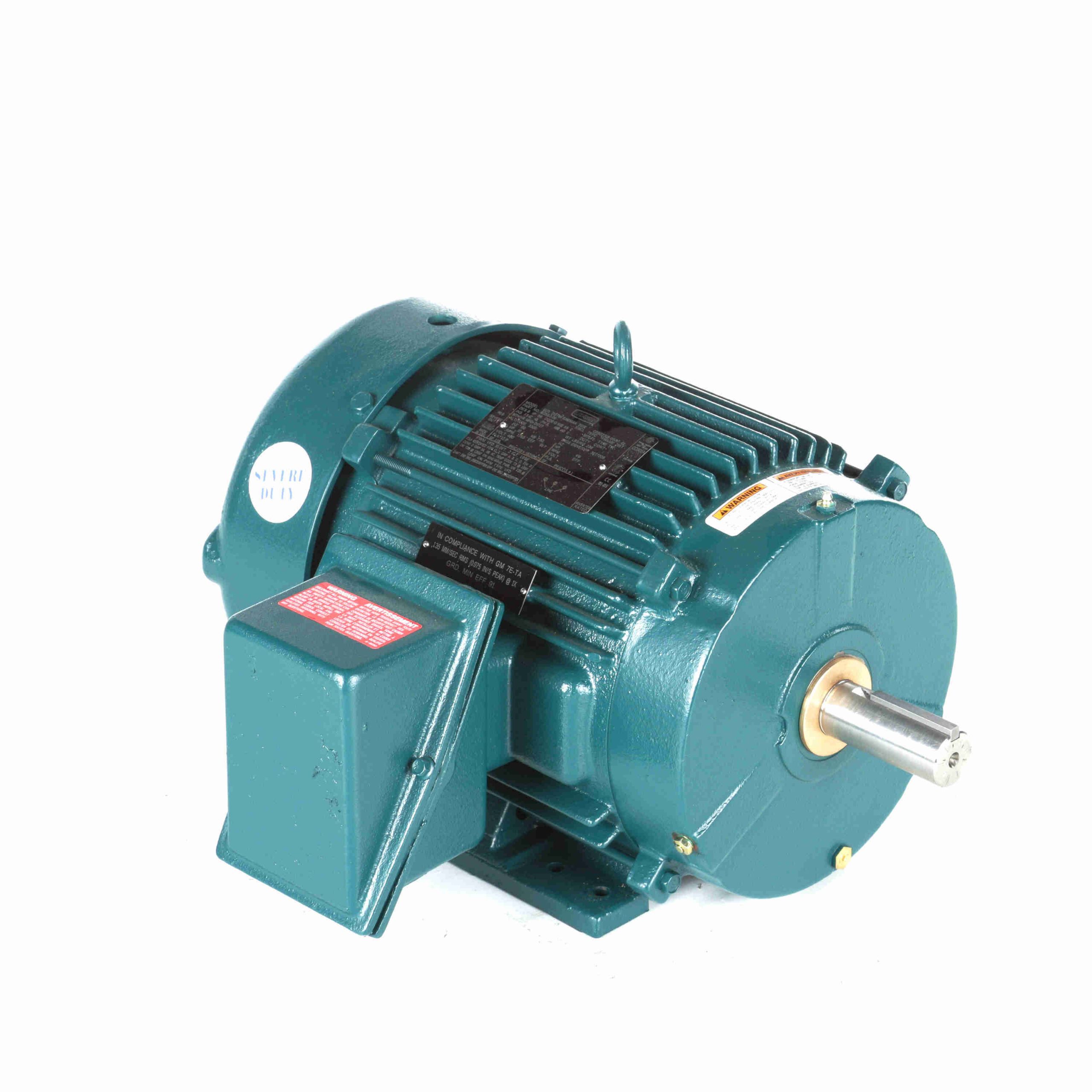

811649.00 – Leeson 3 HP Severe Duty Motor, 3 phase, 1200 RPM, 460 V, 213T Frame, TEFC – 811649.00
811649.00 Leeson IEEE 841 Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720991961 |
Weight: |
200 LB |
| Packaged Length: |
26.5 IN |
Packaged Width: |
18 IN |
| Packaged Height: |
14.38 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
4.4 A |
Speed: |
1175 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
71.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
213T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6208 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
56 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
2.7431 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
19.63 in |
| Frame Length: |
9.12 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
2.60 |
59.0 |
0.00 |
0.0 |
1,200 |
0.00 |
0.0 |
3.00 |
| Pull-Up |
28.00 |
636.0 |
30.00 |
224.0 |
600 |
0.00 |
0.0 |
3.00 |
| 1/3 |
30.00 |
682.0 |
30.50 |
228.0 |
400 |
0.00 |
0.0 |
3.00 |
| Full Load |
4.40 |
100.0 |
13.40 |
100.0 |
1,175 |
0.00 |
0.0 |
3.00 |
| 2/3 |
25.00 |
568.0 |
36.00 |
269.0 |
800 |
0.00 |
0.0 |
3.00 |
| Break-Down |
20.00 |
455.0 |
47.00 |
351.0 |
1,025 |
0.00 |
65.0 |
3.00 |
| Locked-Rotor |
32.00 |
727.0 |
31.00 |
231.0 |
0 |
0.00 |
40.0 |
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
133 % |
| Current (Amps) |
2.60 |
2.75 |
3.10 |
3.70 |
4.40 |
4.90 |
5.20 |
5.50 |
| Rated Output (KW) |
0.15 |
0.70 |
1.30 |
1.89 |
2.51 |
2.90 |
3.17 |
3.38 |
| Efficiency (%) |
0.0 |
80.0 |
86.7 |
88.7 |
89.5 |
88.8 |
88.2 |
92.9 |
| Power Factor (%) |
7.2 |
31.9 |
52.4 |
64.1 |
71.5 |
74.3 |
76.5 |
77.1 |
| Speed (RPM) |
1,200 |
1,194 |
1,188 |
1,180 |
1,175 |
1,170 |
1,166 |
1,163 |
| Temp. Rise @ FL |
0.0 |
30.0 |
25.0 |
0.0 |
35.0 |
45.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
3.30 |
6.65 |
10.00 |
13.43 |
15.50 |
16.89 |
19.00 |
