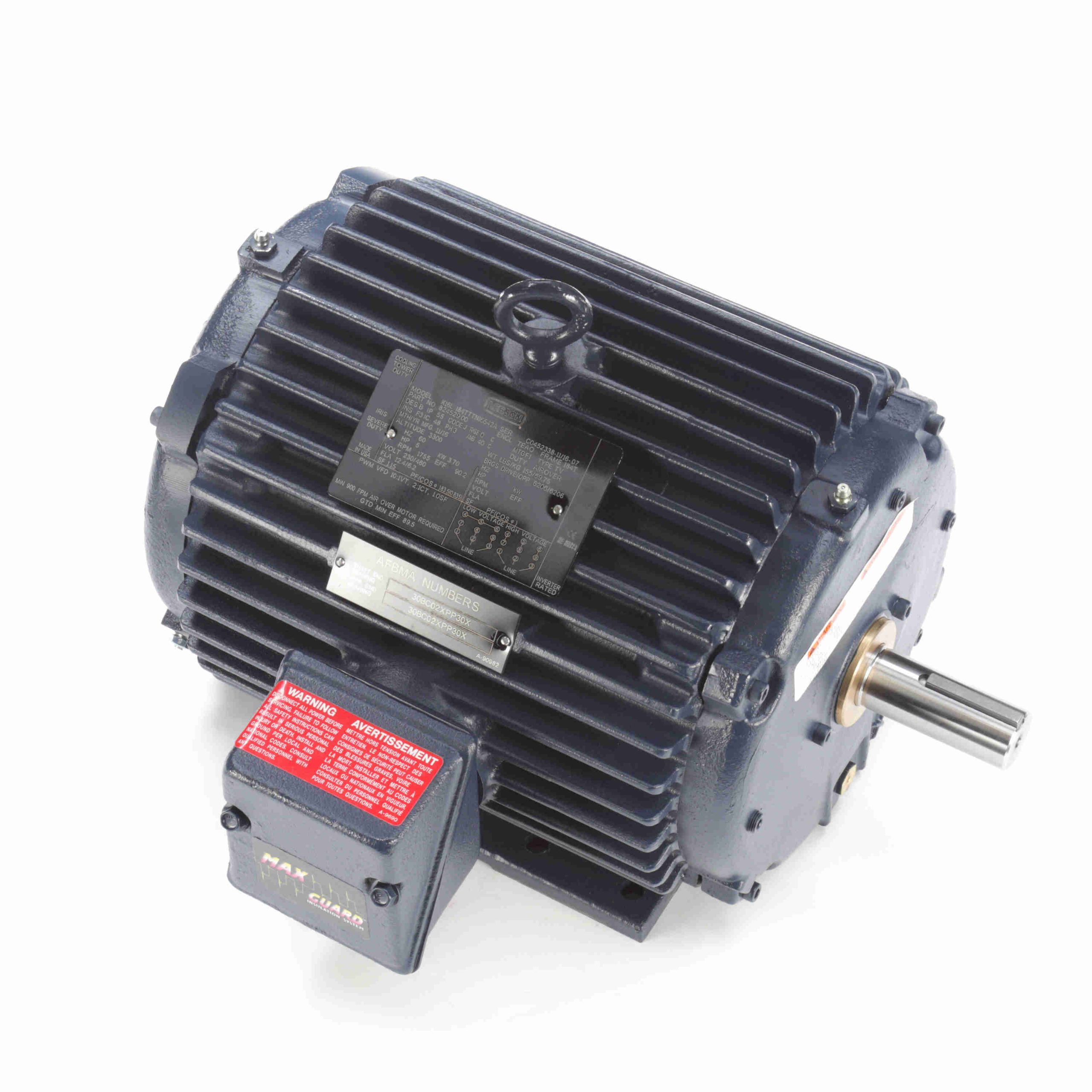

824529.00 – Leeson 5 HP Severe Duty Motor, 3 phase, 1800 RPM, 230/460 V, 184T Frame, TEAO – 824529.00

824529.00 – Leeson 5 HP Severe Duty Motor, 3 phase, 1800 RPM, 230/460 V, 184T Frame, TEAO – 824529.00

824529.00 Leeson Low Voltage NEMA Cooling Tower Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Complete cast iron construction for rigidity and reduced vibration
  • Epoxy painted; Severe duty treatment of internal parts
  • Class F insulation; Regreasable bearings
  • Inpro Shaft seal protected; Shaft grounding ring (SGRs) installed
  • Inverter rated IRIS™ insulation system
  • 10 : 1 constant and variable torque rated
  • 1.15 S.F. under sine wave power

Leeson Motors
Regal Beloit

Original price was: $3,418.00.Current price is: $2,436.35.

Description

824529.00 – Leeson 5 HP Severe Duty Motor, 3 phase, 1800 RPM, 230/460 V, 184T Frame, TEAO – 824529.00

824529.00 Leeson Low Voltage NEMA Cooling Tower Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720294048 Weight: 155.00 LB
Packaged Length: 22.19 IN Packaged Width: 16.5 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 12.4/6.2 A Speed: 1755 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 90.2 % Power Factor: 83.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 184T Enclosure: Totally Enclosed Air Over
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6206
UL: No CSA: N
CE: N IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 2.62 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 15.82 in
Frame Length: 10.00 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 25.00 403.0 45.00 300.0 1,600 74.0 5.00
Full Load 6.20 100.0 15.00 100.0 1,755 5.00
2/3 39.00 629.0 36.00 240.0 1,200 5.00
Pull-Up 41.00 661.0 31.00 207.0 900 5.00
1/3 44.00 710.0 29.00 193.0 600 5.00
No Load 2.80 45.0 0.00 0.0 1,800 5.00
Locked-Rotor 46.00 742.0 34.50 230.0 0 48.0 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.80 3.00 3.80 5.00 6.20 7.20 7.80
Rated Output (KW) 0.15 1.10 2.10 3.10 4.20 4.80 5.30
Efficiency (%) 0.0 85.5 90.2 90.2 90.2 89.5 88.5
Power Factor (%) 6.5 47.0 70.0 78.5 83.5 84.5 86.0
Speed (RPM) 1,800 1,790 1,780 1,765 1,755 1,745 1,740
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 3.70 7.40 11.50 15.00 17.50 19.00
