Description

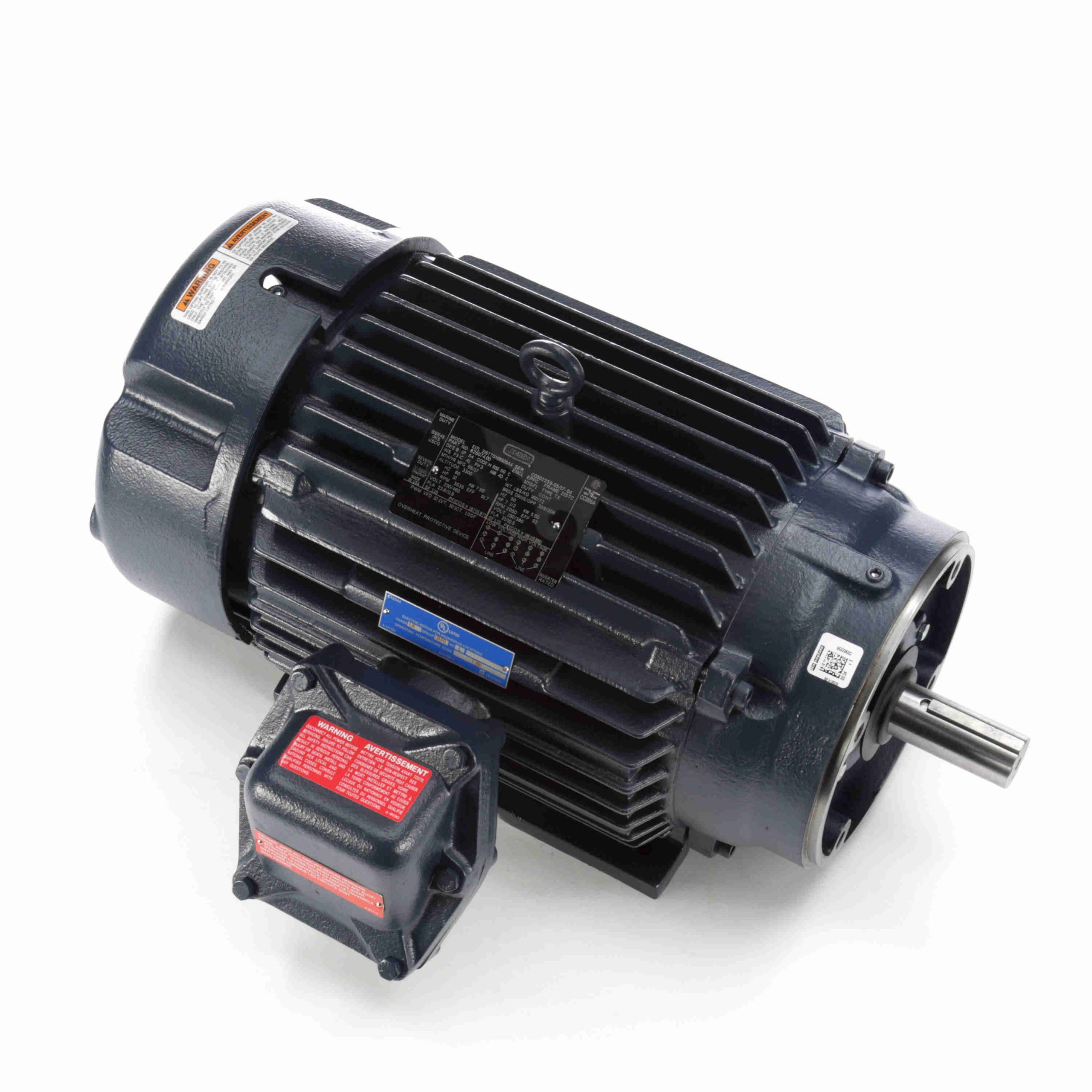

825074.00 – Leeson 10 HP Explosion Proof Motor, 3 phase, 3600 RPM, 230/460 V, 215TC Frame, EPFC – 825074.00
825074.00 Leeson Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720303443 |
Weight: |
160 LB |
| Packaged Length: |
27 IN |
Packaged Width: |
20.5 IN |
| Packaged Height: |
18 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
7.5 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
23.6/11.8 A |
Speed: |
3535 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
87 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
215TC |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
309 |
Opp Drive End Bearing Size: |
208 |
| UL: |
UL Listed; also, UL Certified for Canada |
CSA: |
N |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.8 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
23.45 in |
| Frame Length: |
12.12 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
50.00 |
424.0 |
46.00 |
309.0 |
3,175 |
|
73.0 |
10.00 |
| Locked-Rotor |
80.00 |
678.0 |
30.00 |
201.0 |
0 |
|
40.0 |
10.00 |
| Full Load |
11.80 |
100.0 |
14.90 |
100.0 |
3,535 |
|
|
10.00 |
| 1/3 |
76.00 |
644.0 |
26.00 |
174.0 |
1,200 |
|
|
10.00 |
| Pull-Up |
72.00 |
610.0 |
27.00 |
181.0 |
1,800 |
|
|
10.00 |
| 2/3 |
68.00 |
576.0 |
32.00 |
215.0 |
2,400 |
|
|
10.00 |
| No Load |
3.50 |
30.0 |
0.00 |
0.0 |
3,600 |
|
|
10.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
3.50 |
4.50 |
6.50 |
9.00 |
11.80 |
13.00 |
14.00 |
| Rated Output (KW) |
0.30 |
2.00 |
4.00 |
6.00 |
8.00 |
9.50 |
10.00 |
| Efficiency (%) |
0.0 |
88.0 |
91.7 |
92.4 |
91.7 |
91.7 |
91.7 |
| Power Factor (%) |
8.5 |
58.5 |
78.5 |
86.0 |
87.0 |
89.0 |
90.0 |
| Speed (RPM) |
3,600 |
3,585 |
3,570 |
3,555 |
3,535 |
3,530 |
3,525 |
| Temp. Rise @ FL |
0.0 |
30.0 |
25.0 |
0.0 |
50.0 |
70.0 |
85.0 |
| Torque (ft-lbs) |
0.00 |
3.50 |
7.50 |
11.00 |
14.90 |
17.00 |
18.50 |
