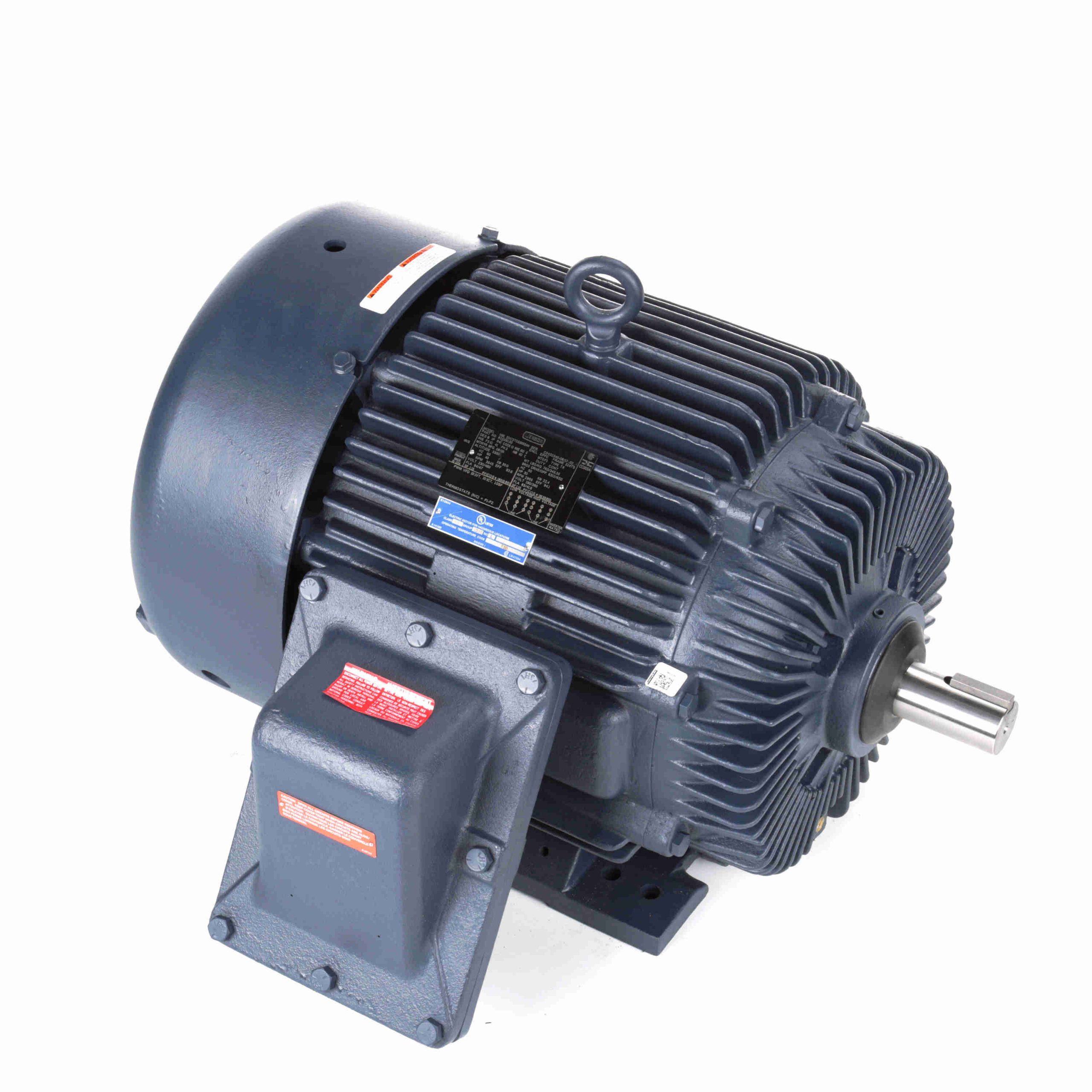

825100.00 – Leeson 40 HP Explosion Proof Motor, 3 phase, 3600 RPM, 230/460 V, 324TS Frame, EPFC – 825100.00
825100.00 Leeson Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720092910 |
Weight: |
763 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
24.66 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
94.0/47.0 A |
Speed: |
3545 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93.6 % |
Power Factor: |
85 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324TS |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.122 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
28.87 in |
| Frame Length: |
13.00 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
3.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
261.00 |
555.0 |
78.00 |
131.0 |
1,200 |
|
|
40.00 |
| Break-Down |
172.00 |
366.0 |
157.00 |
264.0 |
3,300 |
|
65.5 |
40.00 |
| Pull-Up |
248.00 |
528.0 |
82.00 |
138.0 |
1,800 |
|
|
40.00 |
| Full Load |
47.00 |
100.0 |
59.50 |
100.0 |
3,545 |
|
|
40.00 |
| Locked-Rotor |
275.00 |
585.0 |
91.50 |
154.0 |
0 |
|
29.0 |
40.00 |
| No Load |
14.70 |
31.0 |
0.00 |
0.0 |
3,600 |
|
|
40.00 |
| 2/3 |
234.00 |
498.0 |
96.00 |
161.0 |
2,400 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
14.70 |
18.50 |
26.00 |
35.50 |
47.00 |
53.00 |
54.50 |
| Rated Output (KW) |
1.10 |
8.50 |
16.20 |
24.00 |
32.00 |
37.00 |
40.00 |
| Efficiency (%) |
0.0 |
87.5 |
92.4 |
93.6 |
93.6 |
93.6 |
93.0 |
| Power Factor (%) |
9.3 |
56.0 |
76.0 |
83.0 |
85.0 |
86.0 |
86.5 |
| Speed (RPM) |
3,600 |
3,590 |
3,575 |
3,560 |
3,545 |
3,540 |
3,530 |
| Temp. Rise @ FL |
0.0 |
42.0 |
40.0 |
0.0 |
60.0 |
80.0 |
95.0 |
| Torque (ft-lbs) |
0.00 |
14.50 |
29.50 |
44.00 |
59.50 |
68.50 |
74.50 |
