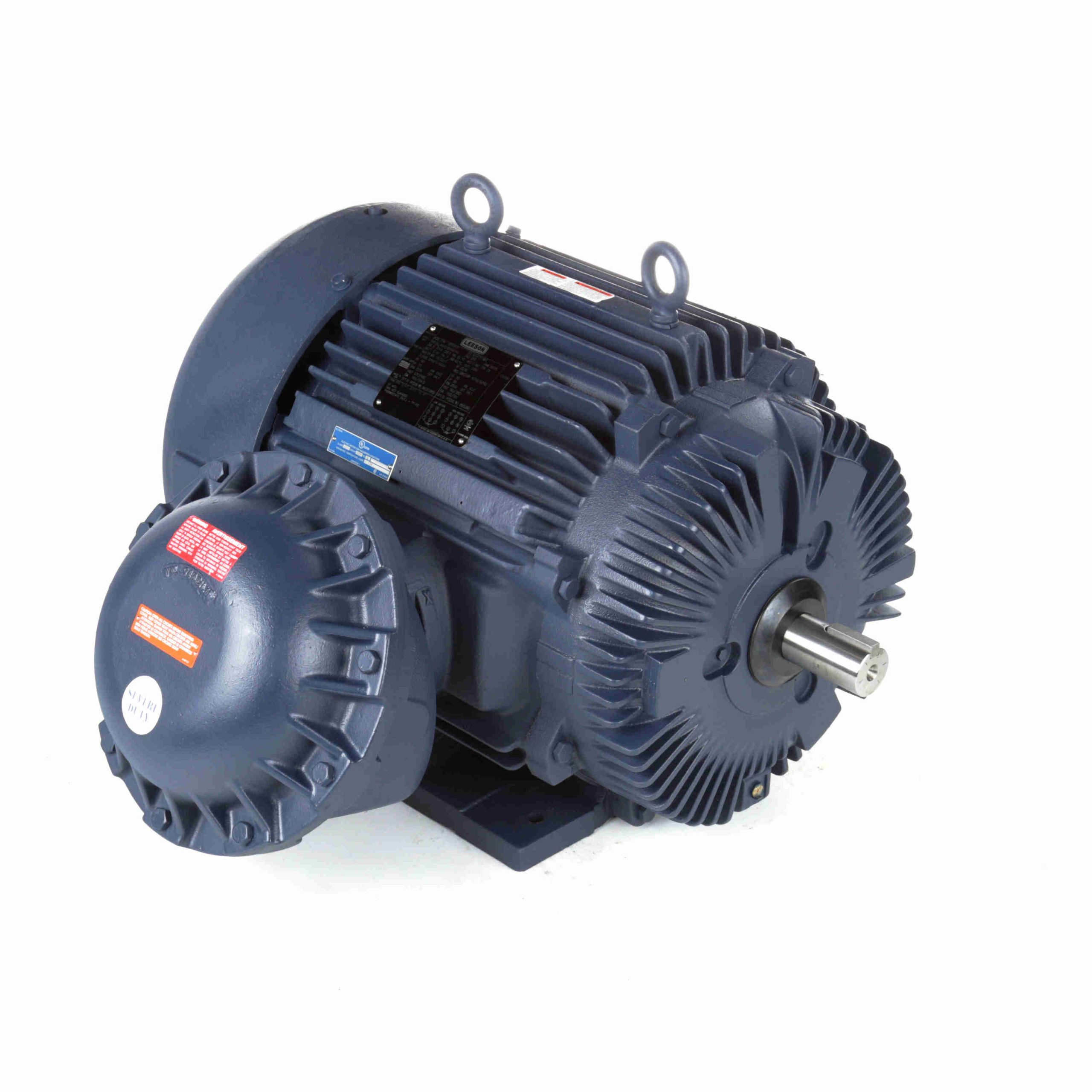

825104.00 – Leeson 60 HP Explosion Proof Motor, 3 phase, 3600 RPM, 230/460 V, 364TS Frame, EPFC – 825104.00
825104.00 Leeson Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720152348 |
Weight: |
890 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.35 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
134.0/67.0 A |
Speed: |
3555 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
364TS |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.089 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
29.38 in |
| Frame Length: |
13.50 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
3.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
300.00 |
448.0 |
265.00 |
299.0 |
3,330 |
|
66.5 |
60.00 |
| No Load |
20.00 |
30.0 |
0.00 |
0.0 |
3,600 |
|
|
60.00 |
| 1/3 |
413.00 |
616.0 |
95.00 |
107.0 |
1,200 |
|
|
60.00 |
| Full Load |
67.00 |
100.0 |
88.60 |
100.0 |
3,555 |
|
|
60.00 |
| Pull-Up |
392.00 |
585.0 |
101.00 |
114.0 |
1,800 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
649.0 |
140.00 |
158.0 |
0 |
|
28.5 |
60.00 |
| 2/3 |
370.00 |
552.0 |
118.00 |
133.0 |
2,400 |
|
|
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
19.50 |
26.00 |
38.00 |
52.00 |
67.00 |
77.50 |
84.50 |
| Rated Output (KW) |
1.50 |
12.00 |
24.00 |
35.50 |
47.50 |
54.50 |
59.50 |
| Efficiency (%) |
0.0 |
91.0 |
94.1 |
94.5 |
94.5 |
94.1 |
93.6 |
| Power Factor (%) |
6.0 |
60.0 |
79.0 |
85.5 |
88.0 |
88.5 |
89.0 |
| Speed (RPM) |
3,600 |
3,590 |
3,580 |
3,570 |
3,555 |
3,550 |
3,545 |
| Temp. Rise @ FL |
0.0 |
50.0 |
45.0 |
0.0 |
70.0 |
95.0 |
115.0 |
| Torque (ft-lbs) |
0.00 |
22.00 |
44.00 |
66.00 |
88.60 |
102.00 |
111.00 |
