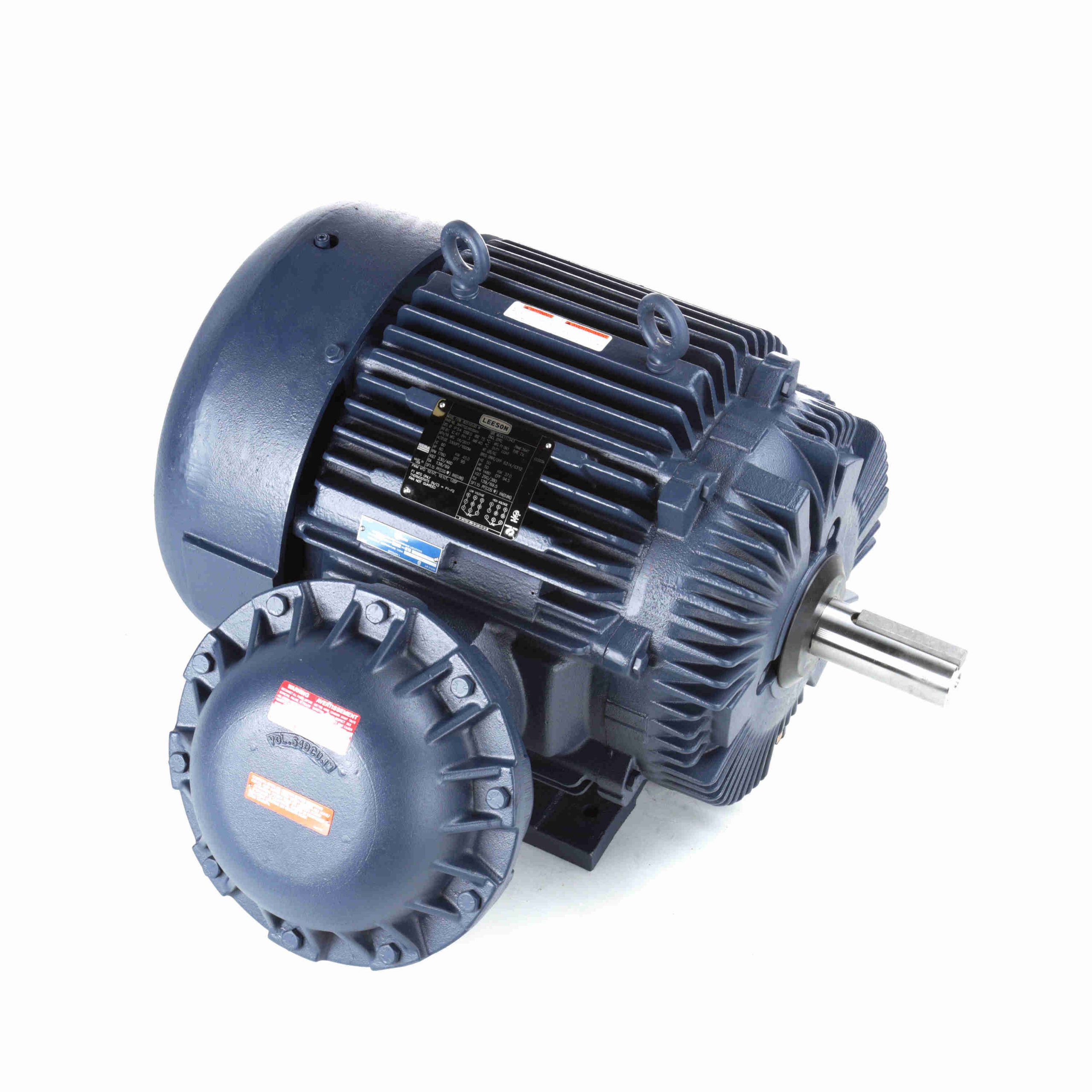

825105.00 – Leeson 60 HP Explosion Proof Motor, 3 phase, 1800 RPM, 230/460 V, 364T Frame, EPFC – 825105.00
825105.00 Leeson Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720152355 |
Weight: |
992 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.35 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
138.0/69.0 A |
Speed: |
1780 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
364T |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.101 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
31.52 in |
| Frame Length: |
13.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
5.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
350.00 |
507.0 |
350.00 |
198.0 |
1,200 |
|
|
60.00 |
| Pull-Up |
375.00 |
543.0 |
300.00 |
169.0 |
900 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
630.0 |
325.00 |
184.0 |
0 |
|
34.0 |
60.00 |
| Full Load |
69.00 |
100.0 |
177.00 |
100.0 |
1,780 |
|
|
60.00 |
| 1/3 |
400.00 |
580.0 |
275.00 |
155.0 |
600 |
|
|
60.00 |
| Break-Down |
250.00 |
362.0 |
450.00 |
254.0 |
1,715 |
|
66.0 |
60.00 |
| No Load |
22.50 |
33.0 |
0.00 |
0.0 |
1,800 |
|
|
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
22.00 |
27.00 |
39.00 |
53.00 |
69.00 |
78.50 |
86.50 |
| Rated Output (KW) |
1.00 |
12.00 |
23.50 |
35.50 |
47.50 |
54.50 |
59.50 |
| Efficiency (%) |
0.0 |
93.0 |
95.0 |
95.4 |
95.0 |
94.5 |
94.1 |
| Power Factor (%) |
5.0 |
56.0 |
77.0 |
83.5 |
86.0 |
86.5 |
86.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,775 |
1,772 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
133.00 |
177.00 |
204.00 |
222.00 |
