Description

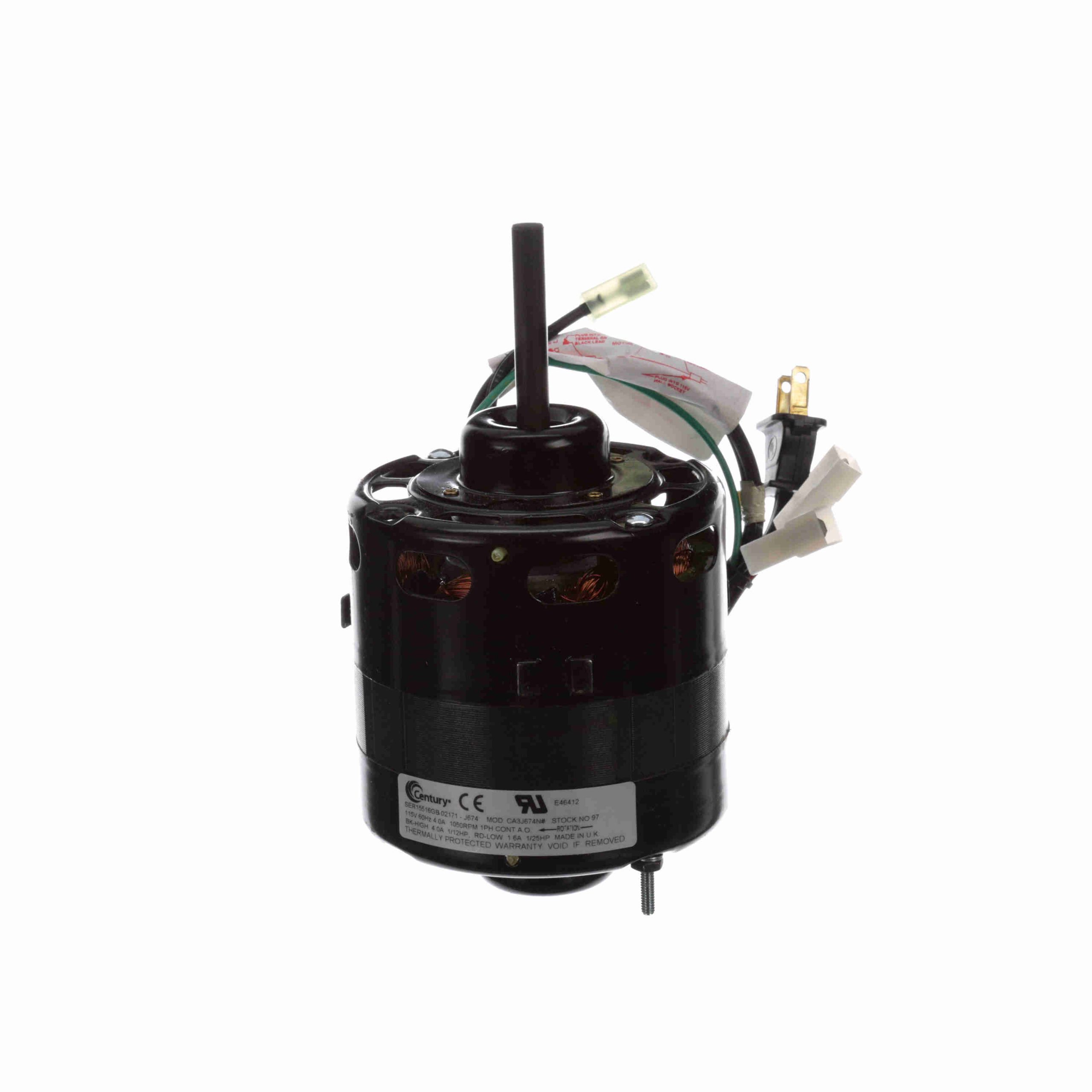

97 – Century 1/12 HP OEM Replacement Motor, 1050 RPM, 2 Speed, 115 Volts, 4.3″ Diameter, OAO – 97
97 Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674006134 |
Weight: |
8 LB |
| Packaged Length: |
11.75 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
8 IN |
Nameplate Specifications
| Output HP: |
1/12-1/25 Hp |
Output KW: |
0.06 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
4.0/1.6 A |
Speed: |
1050 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous Air Over |
Insulation Class: |
A |
| Frame: |
4.4 |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
N |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Clockwise Shaft End |
| Mounting: |
Extended Studs |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
7.69 in |
Shaft Diameter: |
0.375 in |
| Shaft Extension: |
3/8 X 3 in |
Century Motors
Regal Beloit
