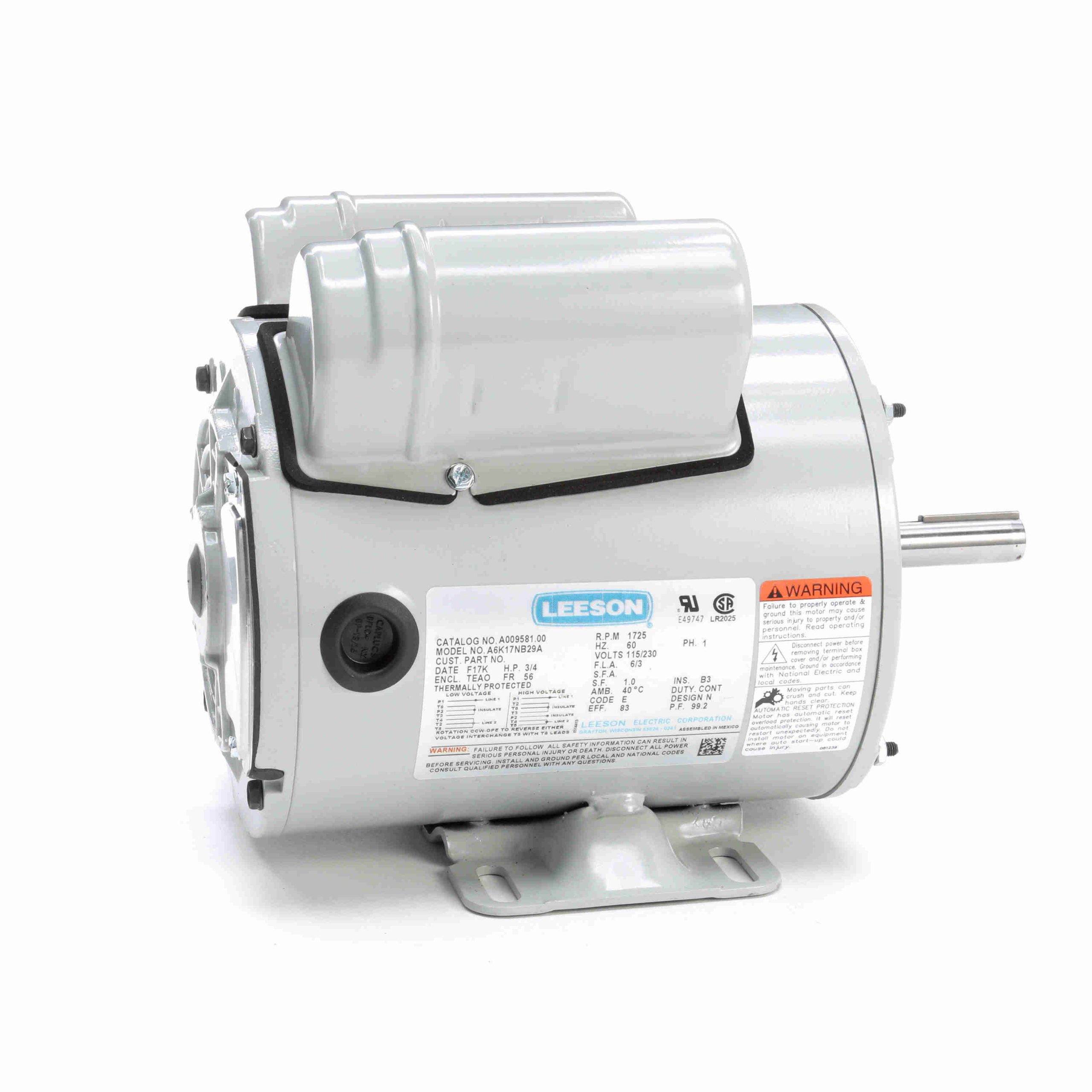

A009581.00 – Leeson 0.75 HP Agricultural Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, TEAO – A009581.00
A009581.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720103043 |
Weight: |
30 LB |
| Packaged Length: |
15.82 IN |
Packaged Width: |
12.56 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
6.0/3.0 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
83 % |
Power Factor: |
99.2 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
E |
| Frame: |
56 |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.94 in |
| Frame Length: |
7.06 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
15.20 |
507.0 |
52.00 |
142.0 |
0 |
3.03 |
87.0 |
0.75 |
| Pull-Up |
15.20 |
507.0 |
52.00 |
142.0 |
0 |
3.03 |
87.0 |
0.75 |
| Break-Down |
9.80 |
327.0 |
70.00 |
192.0 |
1,440 |
1.72 |
87.8 |
0.75 |
| Full Load |
3.00 |
100.0 |
36.52 |
100.0 |
1,740 |
0.67 |
99.2 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
0.45 |
0.99 |
1.58 |
2.21 |
3.00 |
3.45 |
3.80 |
| Rated Output (KW) |
0.10 |
0.22 |
0.36 |
0.51 |
0.67 |
0.78 |
0.86 |
| Efficiency (%) |
0.0 |
64.8 |
79.5 |
84.4 |
83.0 |
82.4 |
81.3 |
| Power Factor (%) |
92.5 |
98.7 |
99.9 |
100.0 |
99.2 |
98.6 |
98.0 |
| Speed (RPM) |
1,795 |
1,785 |
1,770 |
1,760 |
1,740 |
1,725 |
1,715 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
9.13 |
18.26 |
27.40 |
36.52 |
42.00 |
45.65 |
