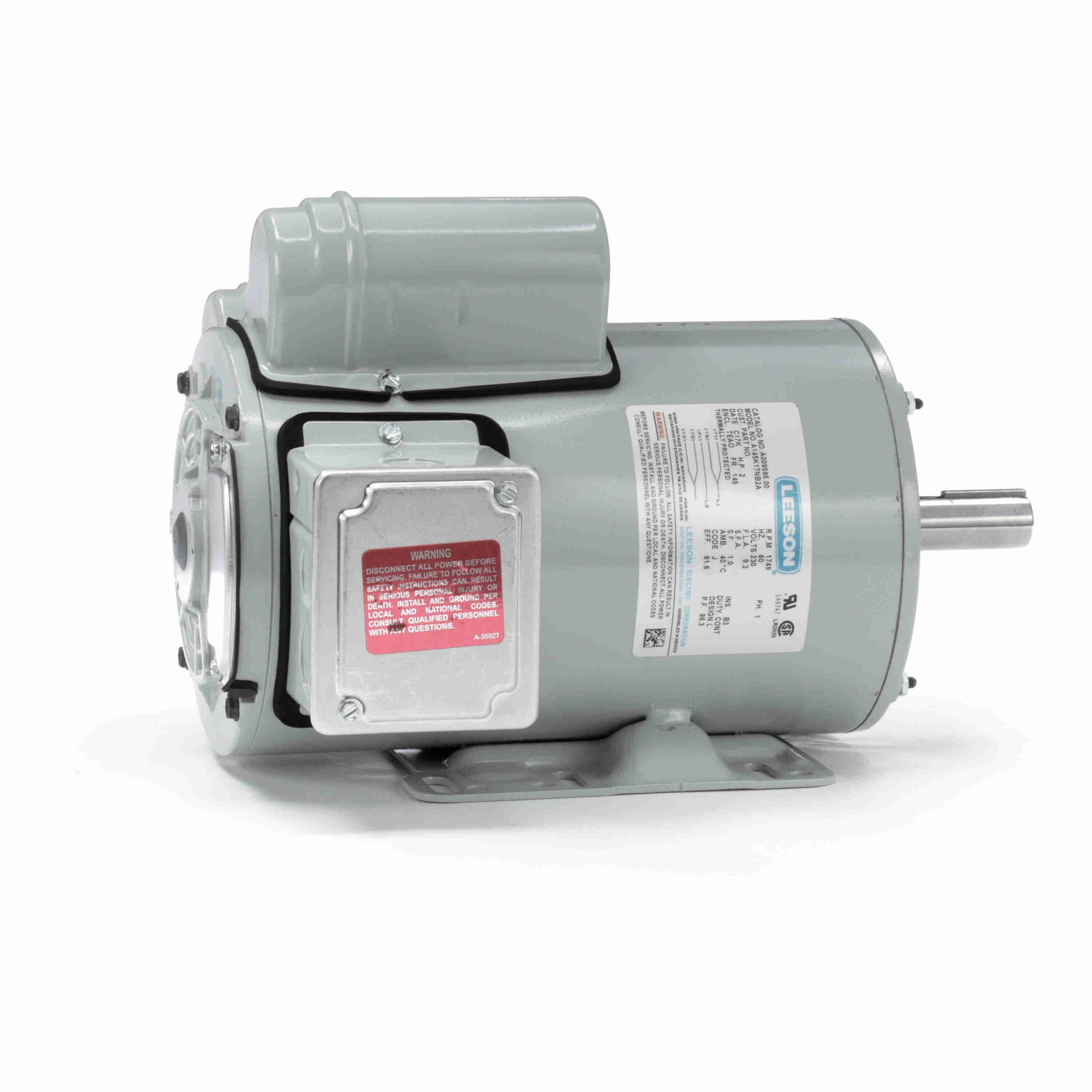

A009595.00 – Leeson 2 HP Agricultural Motor, 1 phase, 1800 RPM, 230 V, 145 Frame, TEAO – A009595.00
A009595.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720103067 |
Weight: |
50 LB |
| Packaged Length: |
19.69 IN |
Packaged Width: |
12.62 IN |
| Packaged Height: |
12.31 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
9.2 A |
Speed: |
1749 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
81.6 % |
Power Factor: |
86.3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
145 |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.49 in |
| Frame Length: |
9.56 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
65.70 |
0.0 |
18.84 |
0.0 |
71 |
12.07 |
79.9 |
2.00 |
| Full Load |
9.26 |
0.0 |
6.00 |
0.0 |
1,749 |
1.84 |
86.3 |
2.00 |
| Pull-Up |
35.30 |
0.0 |
14.80 |
0.0 |
1,457 |
6.65 |
82.1 |
2.00 |
| Break-Down |
30.50 |
0.0 |
15.31 |
0.0 |
1,514 |
6.24 |
88.9 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
3.83 |
4.44 |
5.75 |
7.43 |
9.23 |
10.51 |
11.56 |
14.09 |
| Rated Output (KW) |
0.24 |
0.57 |
0.96 |
1.39 |
1.83 |
2.12 |
2.36 |
2.90 |
| Efficiency (%) |
0.0 |
65.3 |
77.1 |
81.0 |
81.6 |
80.8 |
79.3 |
77.3 |
| Power Factor (%) |
28.0 |
56.6 |
73.1 |
81.6 |
86.3 |
87.8 |
88.7 |
89.6 |
| Speed (RPM) |
1,790 |
1,788 |
1,776 |
1,764 |
1,749 |
1,738 |
1,730 |
1,710 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.49 |
2.95 |
4.51 |
6.02 |
6.95 |
7.62 |
9.24 |
