Description

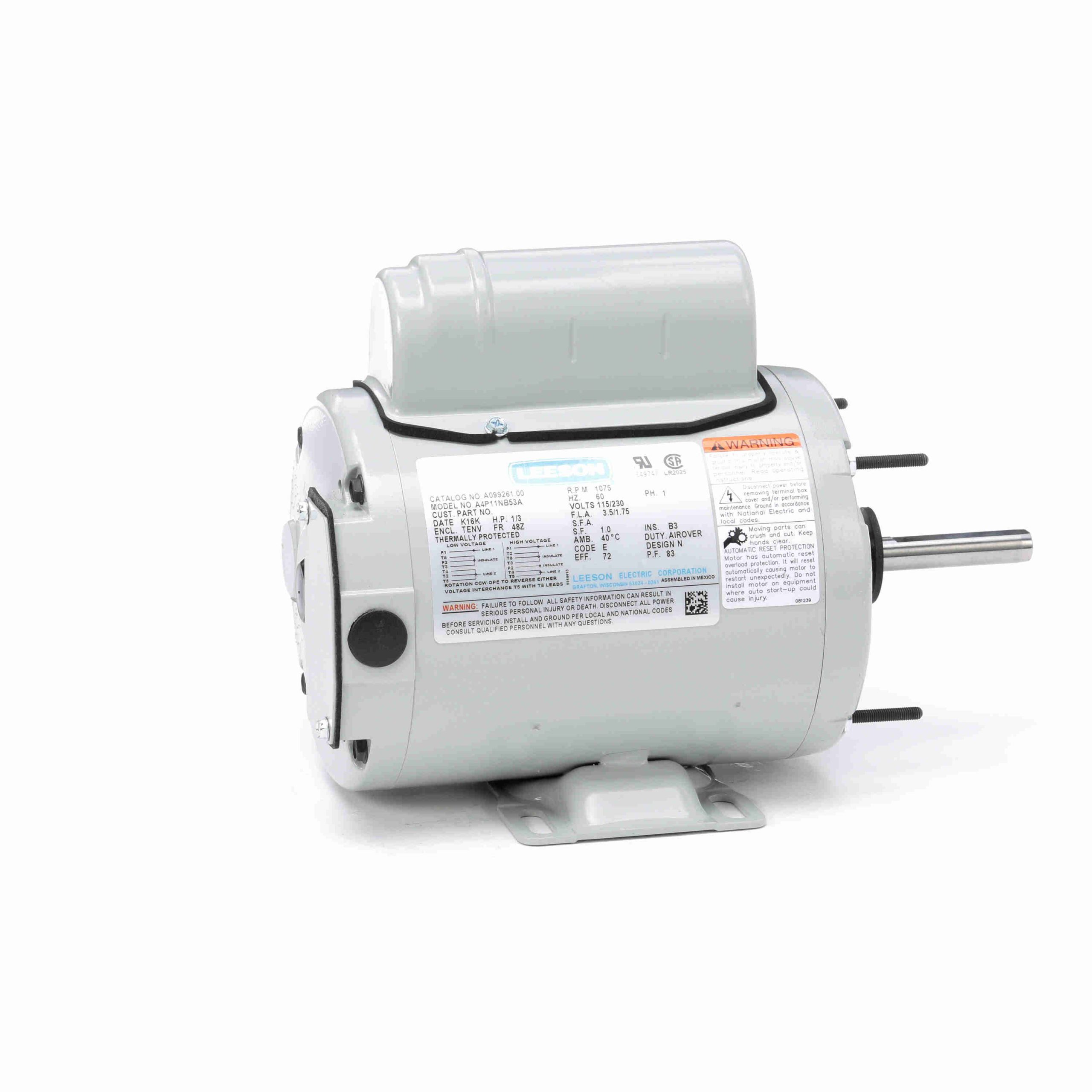

A099261.00 – Leeson 0.33 HP Agricultural Motor, 1 phase, 1200 RPM, 115/230 V, 48Z Frame, TEAO – A099261.00
A099261.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720102923 |
Weight: |
22.00 LB |
| Packaged Length: |
12.75 IN |
Packaged Width: |
9.5 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
3.5/1.8 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
72 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
E |
| Frame: |
48Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid – Extended Studs |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
10.90 in |
| Frame Length: |
5.75 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.24 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
6.63 |
|
10.20 |
|
31 |
1.11 |
|
0.33 |
| Locked-Rotor |
6.63 |
|
10.50 |
|
0 |
1.11 |
|
0.33 |
| Break-Down |
4.28 |
|
49.00 |
|
943 |
0.84 |
|
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.95 |
1.05 |
1.23 |
1.47 |
1.76 |
2.14 |
2.64 |
| Rated Output (KW) |
0.09 |
0.14 |
0.20 |
0.27 |
0.34 |
0.42 |
0.54 |
| Efficiency (%) |
0.0 |
44.0 |
61.0 |
70.0 |
72.0 |
73.0 |
69.0 |
| Power Factor (%) |
40.0 |
58.0 |
71.0 |
78.0 |
83.0 |
86.0 |
88.0 |
| Speed (RPM) |
1,200 |
1,186 |
1,173 |
1,158 |
1,141 |
1,120 |
1,088 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.00 |
18.20 |
24.60 |
31.30 |
38.70 |
