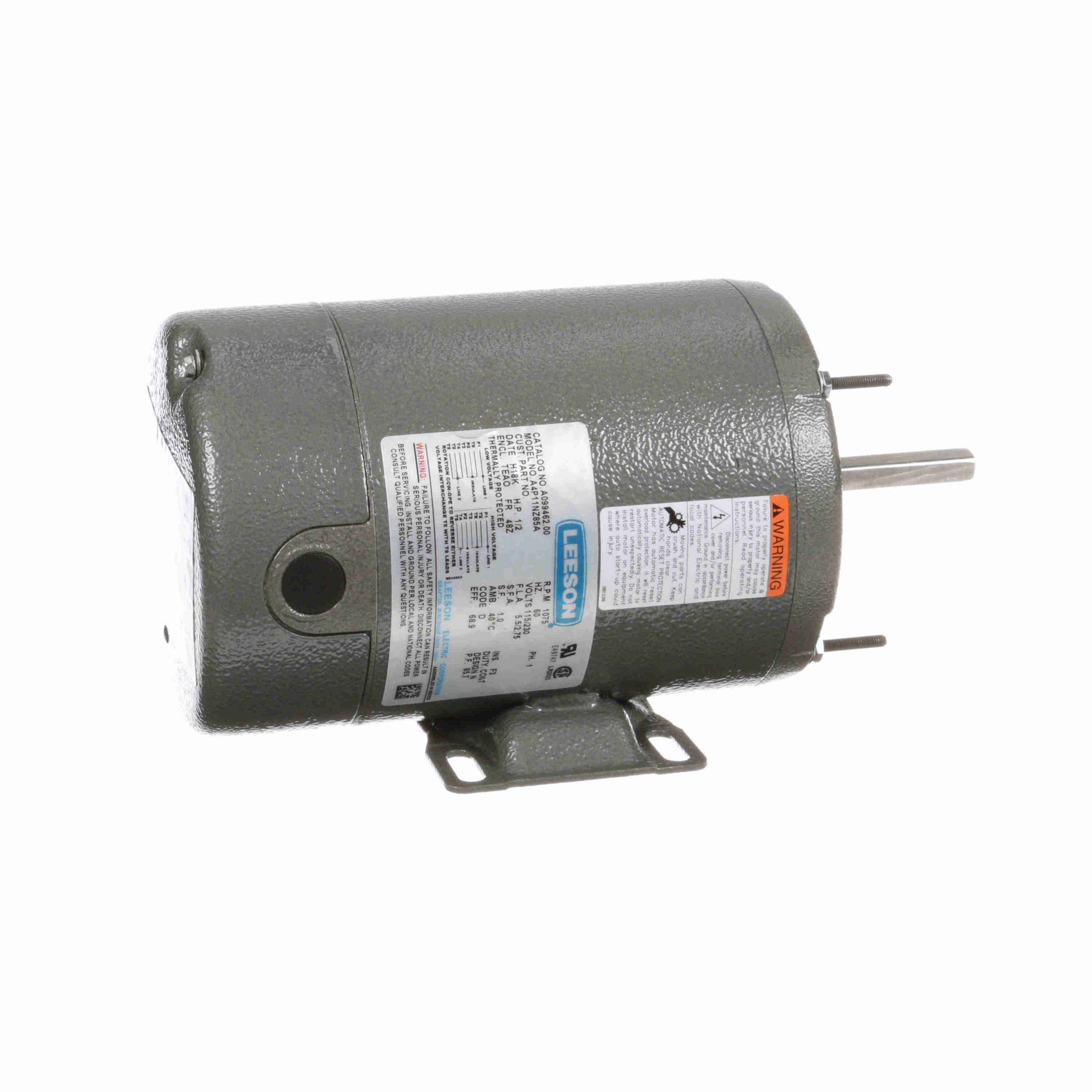

A099462.00 – Leeson 0.50 HP Agricultural Motor, 1 phase, 1200 RPM, 115/230 V, 48Z Frame, TEAO – A099462.00
A099462.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720102992 |
Weight: |
21.00 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
5.5/2.8 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
68.9 % |
Power Factor: |
85.7 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
D |
| Frame: |
48Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
6.44 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
10.89 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.24 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
|
72.00 |
200.0 |
0 |
|
|
0.50 |
| Locked-Rotor |
19.00 |
|
19.00 |
53.0 |
0 |
|
|
0.50 |
| Full Load |
2.80 |
|
36.00 |
100.0 |
0 |
|
|
0.50 |
| Pull-Up |
0.00 |
|
17.00 |
47.0 |
0 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.70 |
1.81 |
2.02 |
2.36 |
2.74 |
3.35 |
4.14 |
| Rated Output (KW) |
0.16 |
0.25 |
0.33 |
0.44 |
0.54 |
0.69 |
0.86 |
| Efficiency (%) |
0.0 |
39.4 |
55.8 |
65.3 |
68.9 |
68.9 |
64.9 |
| Power Factor (%) |
41.9 |
59.6 |
71.7 |
80.7 |
85.7 |
88.9 |
90.3 |
| Speed (RPM) |
1,198 |
1,182 |
1,168 |
1,150 |
1,132 |
1,102 |
1,061 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
9.30 |
17.90 |
28.00 |
37.00 |
48.20 |
59.20 |
